Pioneer VSX-409RDS Service Manual

6
VSX-409RDS
•

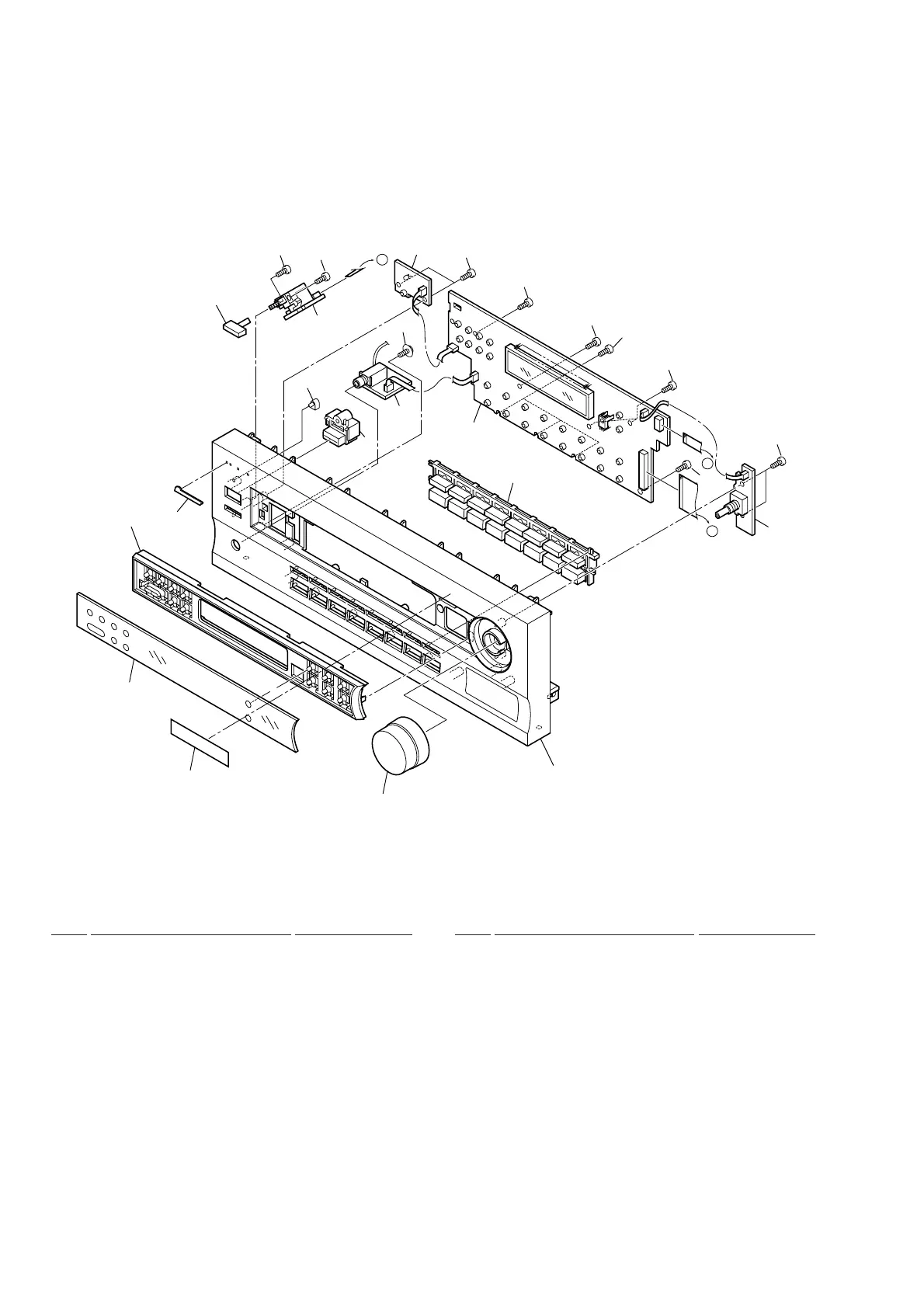

FRONT PANEL SECTION PARTS LIST
Mark No. Description Part No.
2.3 FRONT PANEL SECTION
1 FRONT Assy AWX7384
2 POWER SW Assy AWX7385
NSP 3 R. ENCODER Assy AWX7386
NSP 4 H.P. Assy AWX7387
5 MECHA SW Assy AWX7443
6 Volume Knob AAB7179
7 Power Button AAD7440
8 Power Button M AAD7442
9 Window W 409RDS AAK7683
10 F Button 409RDS AAD7537
Mark No. Description Part No.
11 Sub Panel 409RDS AAD7552
12 F Panel 409RDS AMB7644
13 Name Plate PAM1776
14 LED Lens PNW2019
NSP 15 Getter 409RDS AAX7727
16 Screw PPZ30P080FMC
17 Screw ABA7009
G
B
A
15
11
13
10
14
17
16
7
8
4
2
6
9
12
1
5
3
16
16
16
16
16
16
16
16

Pioneer VSX-409RDS Specifications

Power

continuous power output	80 W + 80 W (DIN, 1kHz, 0.9 %, 8 Ω)
power supply voltage	230 V
power requirements	AC 220-230 V, 50/60 Hz
power consumption	220 W
standby power consumption	1 W

Audio Specifications

input sensitivity/impedance	200 mV/47 kΩ
frequency response	5 Hz to 100, 000 Hz
output level/impedance	200 mV/2.2 kΩ
tone control bass	± 6 dB (100 Hz)
tone control treble	± 6 dB (10 kHz)
s.bass	+ 8 dB (100 Hz)
signal-to-noise ratio	88 dB/64 dB

Video Section

video input sensitivity/impedance	1 Vp-p/75 Ω
video output level/impedance	1 Vp-p/75 Ω
video frequency response	5 Hz to 7 MHz –3 dB
video signal-to-noise ratio	55 dB
video cross talk	55 dB

FM Tuner Section

fm frequency range	87.5 MHz to 108 MHz
fm usable sensitivity	Mono:15.2 dBf, IHF (1.6 µV/75 Ω)
fm 50 dB quieting sensitivity	Mono: 20.2 dBf
fm signal-to-noise ratio	Mono: 76 dB (at 85 dBf)
fm distortion	Stereo: 0.6 % (1 kHz)
fm alternate channel selectivity	70 dB (400 kHz)
fm stereo separation	40 dB (1 kHz)
fm frequency response	30 Hz to 15 kHz (±1) dB
fm antenna input	75 Ω unbalanced
fm sensitivity (DIN)	Mono: 1.1 uV(S/N 26dB)
fm signal-to-noise ratio (DIN)	Mono: 62dB

AM Tuner Section

am frequency range	531 kHz to 1, 602 kHz
am sensitivity (IHF, Loop antenna)	350 µV/m
am selectivity	30 dB
am signal-to-noise ratio	50 dB
am antenna	Loop antenna

Weight and Dimensions

dimensions	420 (W) x 158 (H) x 391 (D) mm
weight	8.4 kg
