Pioneer X-HM15 User Manual

Connections 03
11
En

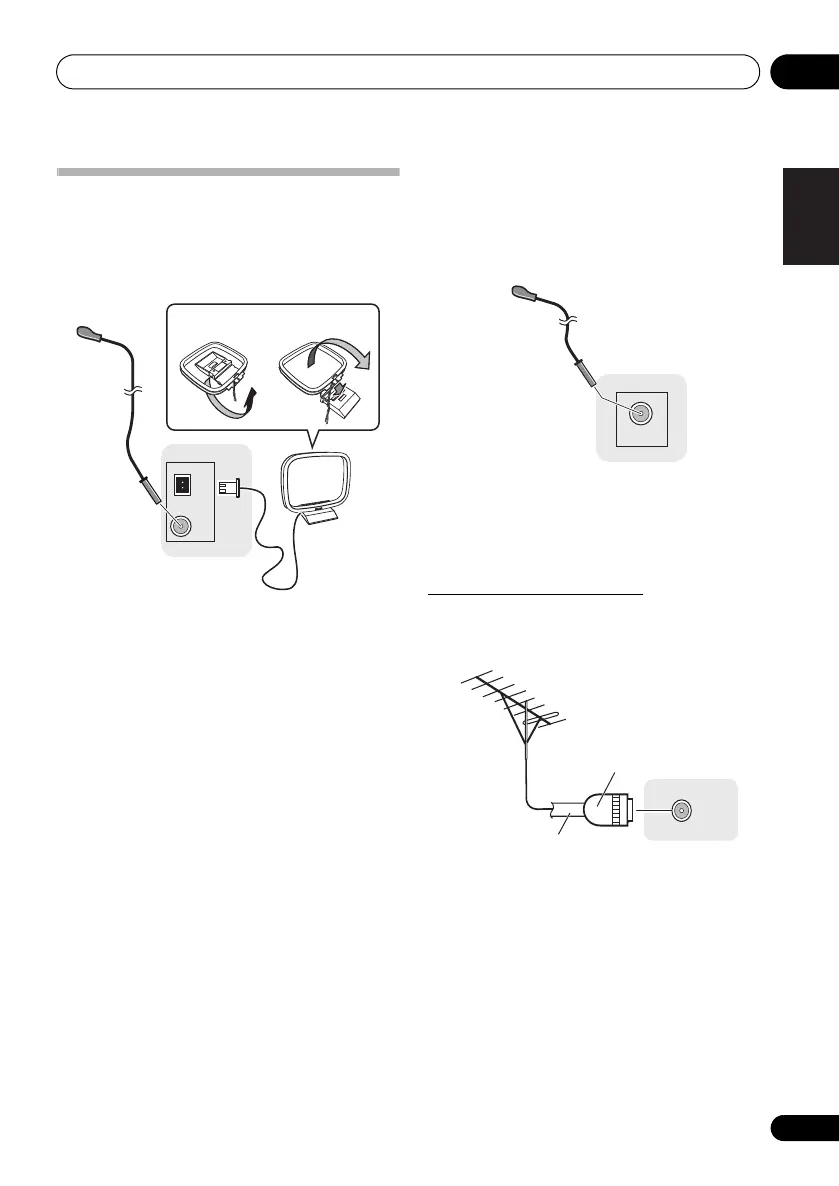

Chapter 3:
Connections
CAUTION
• Be sure to turn off the power and unplug the power cord
from the power outlet whenever making or changing
connections.
• Connect the power cord after all the connections
between devices have been completed.
Speaker connection
• Push open the tabs and insert exposed wire.
• Connect the black wire to () terminal, and the red wire
to the (+) terminal.
CAUTION
• These speaker terminals carry HAZARDOUS LIVE
voltage. To prevent the risk of electric shock when
connecting or disconnecting the speaker cables,
disconnect the power cord before touching any
uninsulated parts.
• Do not connect any speakers other than those supplied
to this system.
• Do not connect the supplied speakers to any amplifier
other than the one supplied with this system.
Connection to any other amplifier may result in
malfunction or fire.
• Do not attach these speakers to the wall or ceiling. They
may fall off and cause injury.
• These speakers are magnetically shielded. However,
depending on the installation location, color distortion
may occur if the speaker system is installed extremely
close to the screen of a television set. If this happens,
turn off the television set, and then turn it on after 15 to
30 minutes. If the problem persists, move the speaker
system away from the television set.
• Make sure that the speaker cable cores do not become
exposed and make contact with other cable cores. This
may cause malfunction of the product.
• Do not allow the speaker cable core to come into contact
with the receiver body.
- If the speaker cable core comes into contact with any
metal portion of the receiver’s body, it may damage the
speakers and cause smoke and fire.
Insert speaker cables securely into the terminals and
check that the cable does not come out of easily.
Note
• There is no difference between L and R speakers.
SPEAKERS
RL
LINE
IN
L
R
Left
speaker
Right
speaker
This unit’s rear panel
X-HM21BTD.book 11 ページ ２０１３年１１月２１日 木曜日 午前９時１分

Pioneer X-HM15 Specifications

General

Type	Home audio micro system
Cassette deck	No
Product color	Black, Silver
Optical disc player	Yes
Volume control	Rotary
Equalizer modes	Flat
Impedance	8 Ω
Speaker type	2-way
RMS rated power	30 W
Woofer diameter	100 mm
Number of speakers	2
Speakers connectivity type	Binding post
Total Harmonic Distortion (THD)	10 %
Power source	AC
Input voltage	220-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Tuner type	Digital
Supported radio bands	AM, FM
Preset stations quantity	45
Display type	-
Backlight color	White
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Apple docking compatibility	Not supported
Disc types supported	CD, CD-R, CD-RW
Playback disc formats	CD audio
Audio formats supported	MP3, WMA

Weight and Dimensions

Depth	215 mm
Width	315 mm
Height	95 mm
Weight	2000 g
