Pioneer X-HM15 User Manual

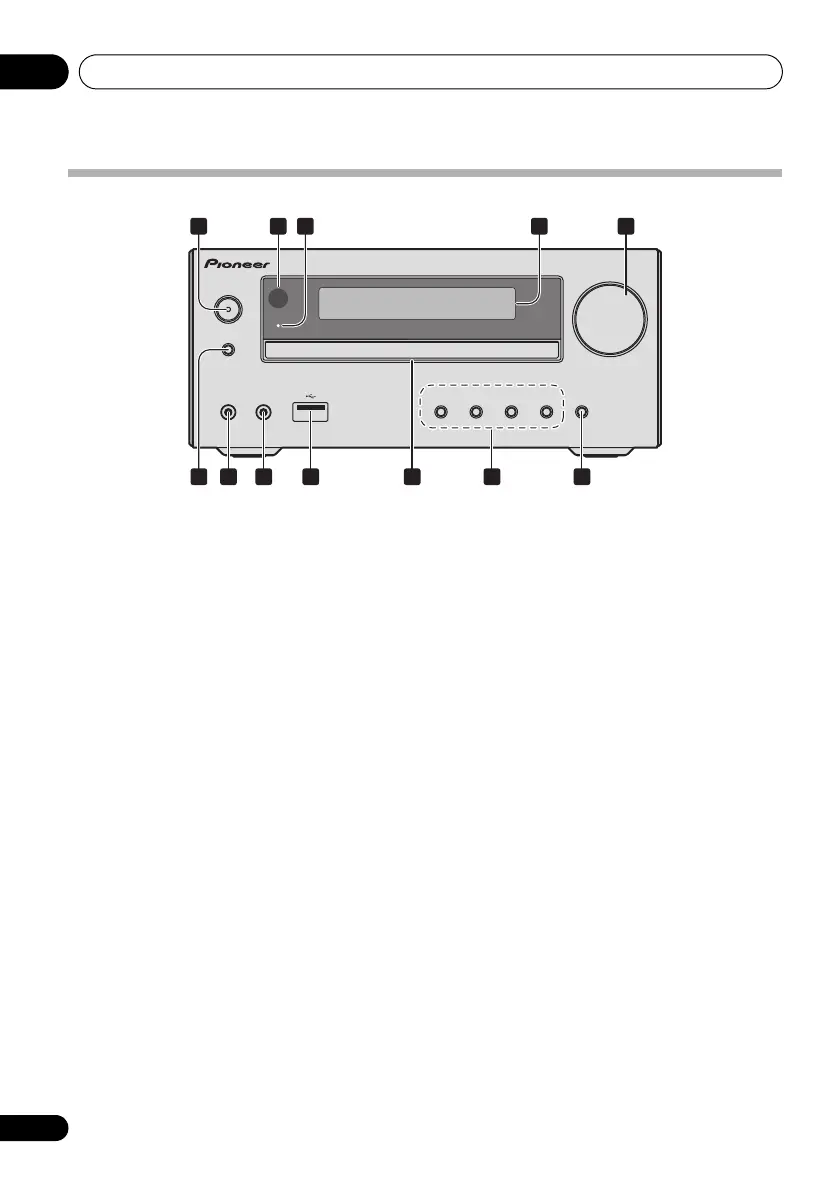

Part names and functions02
8
En
11 Tuner control buttons
ST/MONO
Use to switch the sound mode between stereo and
monaural. (page 24)
RDS ASPM
Use to search for RDS Auto station program memory
(page 25).
RDS PTY
Use to search for RDS program types (page 25).
RDS DISPLAY
Press to change the RDS display for information mode
(page 25).
DAB SCAN
Use to scan for DAB radio station (page 27).
DAB ENTER
Use to confirm the DAB radio station (page 27).
DAB DISPLAY
Press to change the DAB display for information mode
(page 28).
12 OPEN/CLOSE
Use to open or close the disc tray (page 18).
13 Sound control buttons
Adjust the sound quality (page 14).
14 RANDOM
Randomize order of track playback from a CD, iPod or USB
(page 19).
15 REPEAT
Press to change the repeat play setting from a CD, iPod or
USB (page 19).
16 Volume control buttons
Use to set the listening volume (page 13).
17 DIMMER
Dims or brightens the display. The brightness can be
controlled in four steps (page 13).
Speaker system
1 Tweeter
2 Woofer
3 Bass Reflex Duct
Important
• Make sure nothing comes into contact with the speaker
diaphragms when you remove the speaker grilles.
1
2
3
X-HM21BTD.book 8 ページ ２０１３年１１月２１日 木曜日 午前９時１分

Pioneer X-HM15 Specifications

General

Type	Home audio micro system
Cassette deck	No
Product color	Black, Silver
Optical disc player	Yes
Volume control	Rotary
Equalizer modes	Flat
Impedance	8 Ω
Speaker type	2-way
RMS rated power	30 W
Woofer diameter	100 mm
Number of speakers	2
Speakers connectivity type	Binding post
Total Harmonic Distortion (THD)	10 %
Power source	AC
Input voltage	220-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Tuner type	Digital
Supported radio bands	AM, FM
Preset stations quantity	45
Display type	-
Backlight color	White
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Apple docking compatibility	Not supported
Disc types supported	CD, CD-R, CD-RW
Playback disc formats	CD audio
Audio formats supported	MP3, WMA

Weight and Dimensions

Depth	215 mm
Width	315 mm
Height	95 mm
Weight	2000 g
