MAINTENANCE
Fuse/Relay Center
If the engine stops or will not start, if the power steering stops working
(if equipped), or if you experience other electrical failures, a fuse may
need replacement. Locate and correct any short circuits that may have

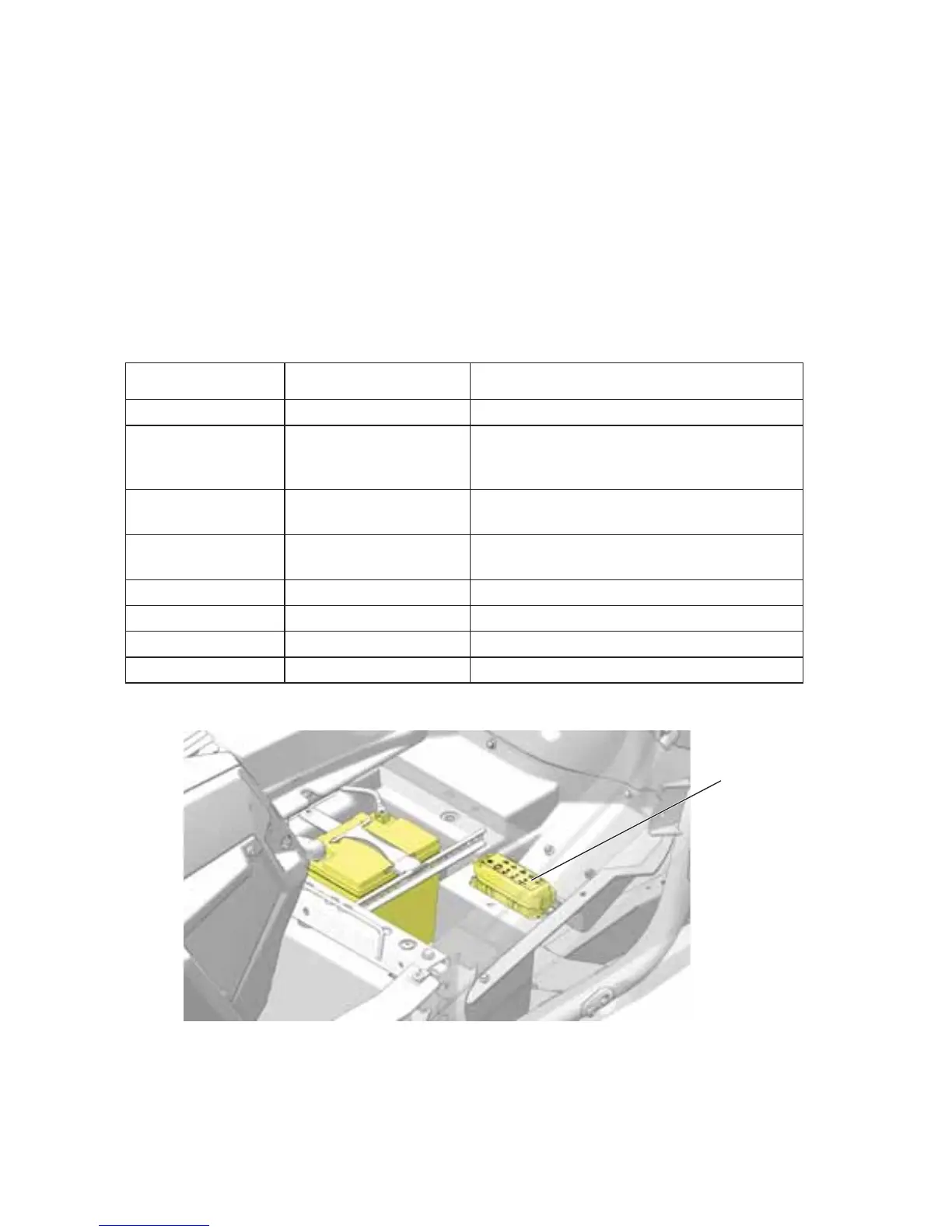

caused the blown fuse, then replace the fuse. The fuse/relay center is
located under the driver’s seat.
Periodically inspect the fuse box for moisture. If moisture is present,
leave the cover off to allow the moisture to dry. Reinstall the cover
before operating.
Label Value Function
FAN 20A Circuit Breaker Fan
EFI 10A Fuse EFI Relay, Injectors, Coil, ECM,
Chassis Relay Coil, Fan Relay Coil,
Fuel Pump Relay Coil
KEY 10A Fuse Gauge, EFI Relay Coil, EPS Relay
Coil, Key Switch
TERM 10A Fuse Under Hood Terminal Block, Interior
LED
EPS 25A Fuse Power Steering
LIGHTS 10A Fuse Headlights, Taillights, Dash Lights
DRIVE 10A Fuse All Wheel Drive (AWD)
ACCESSORY 10A Fuse 12V Receptacle
