MAINTENANCE AND LUBRICATION
Lights
Headlight Adju stment
1. Position the vehicle on
a level surface with the
headlight approximately
25 ft. (7.6 m) from a
flat wall.
2. Measure the distance
from the floor to the
center of the headlight
and make a mark on the
wall at the same height.
3. Start the engine and
turn on the headlight.
4. Observe the headlight
aim on the wall. The most intense part of the headlight beam
should be aimed 8” (20.3 cm) below the mark placed on the wall.
NOTE: Include rider weight on the s eat when meas uring.

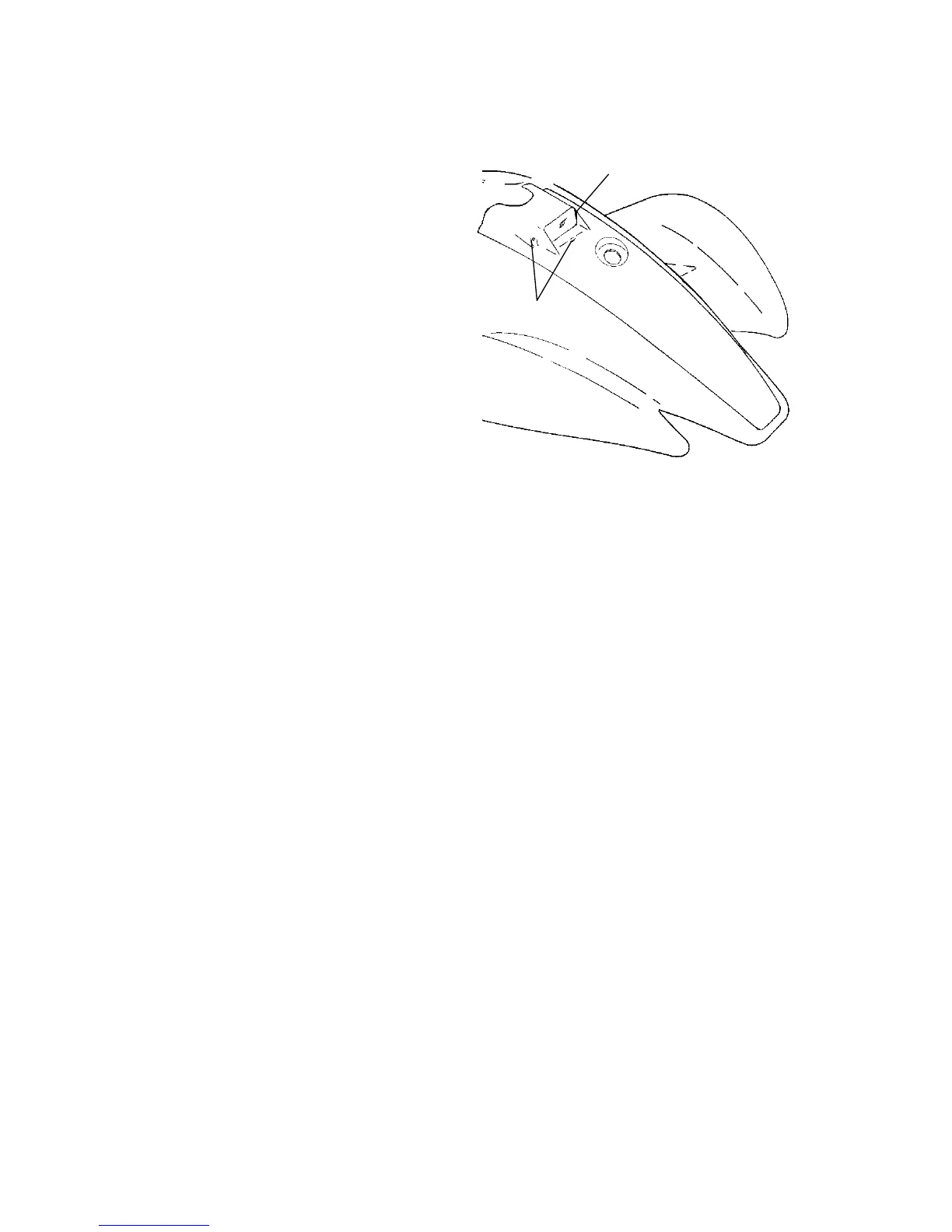

5. Adjust the beam to the desired position by turning the adjustment
screws (1):
S Turning t he right screw clockwise moves the intense spot of light up
andtotheleft.
S Turning the left screw clockwise moves the intense spot of the light
up and to the right.
S Turning t he bottom screw clockwise adjusts the light upward.
1
1
