92
MAINTENANCE
Clutch System
n Drive Belt Deflection
Measure belt deflection with both
clutches at rest and in their full
neutral position.

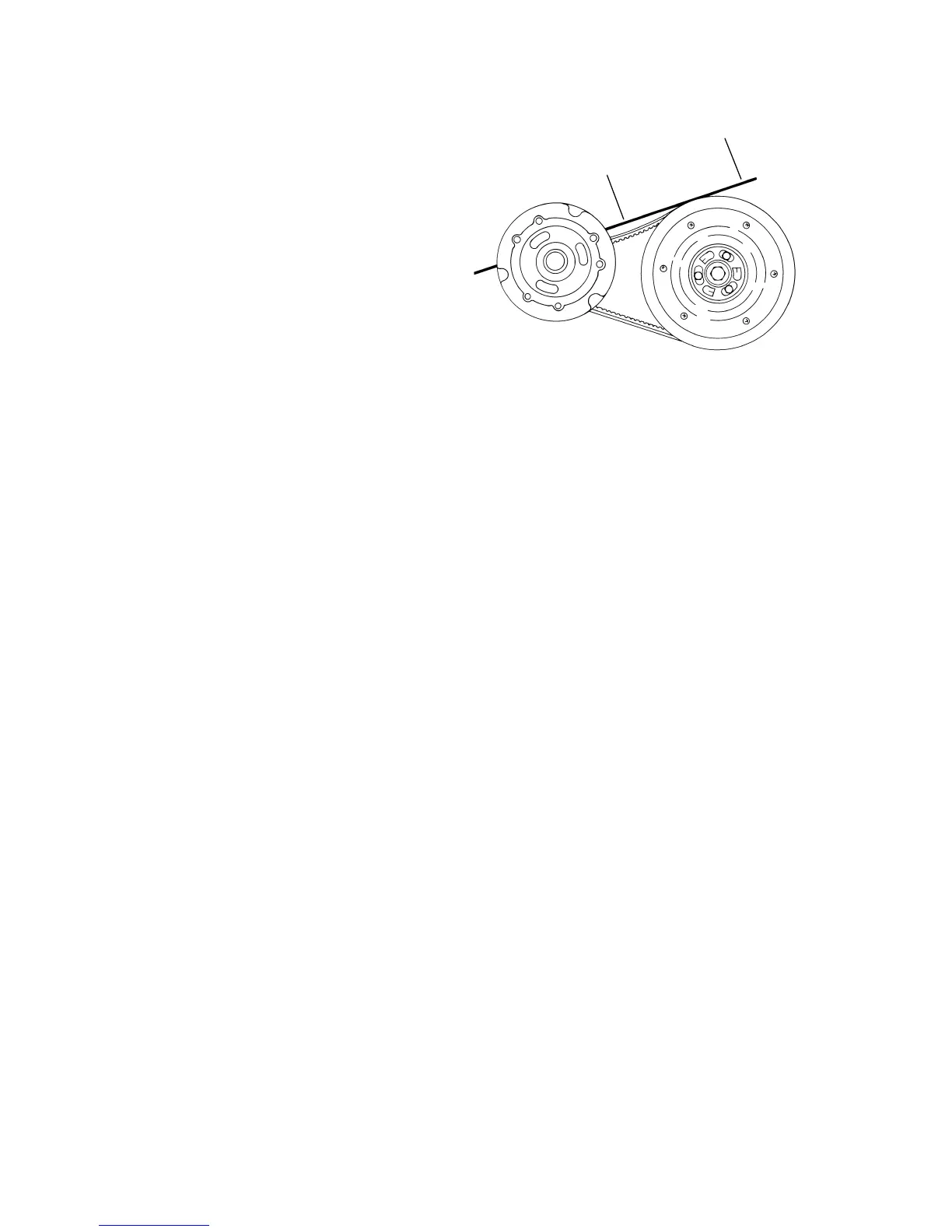

Place a straight edge (1) on the
belt and apply downward pressure
while measuring at point 2. This
measurement should be 1 1/4
inches (32 mm).
Drive Belt Adjustment
Belt deflection can be adjusted without removing the clutch from the
jackshaft.
1. Loosen the 7/16-inch jam nut on the belt width adjuster.
2. Using a 1/8-inch Allen wrench, adjust the threaded set screw as
needed.
Tip: Turn the set screw in (clockwise) to increase the distance between the
sheaves and out (counterclockwise) to decrease the distance.
3. Tighten the jam nut.
