FEATURES AND CO NTRO LS
Choke
The choke assists in starting a cold engine. Refer to the engine starting
procedure on page 48 for correct choke and throttle settings during
starting.
Fuel Valve

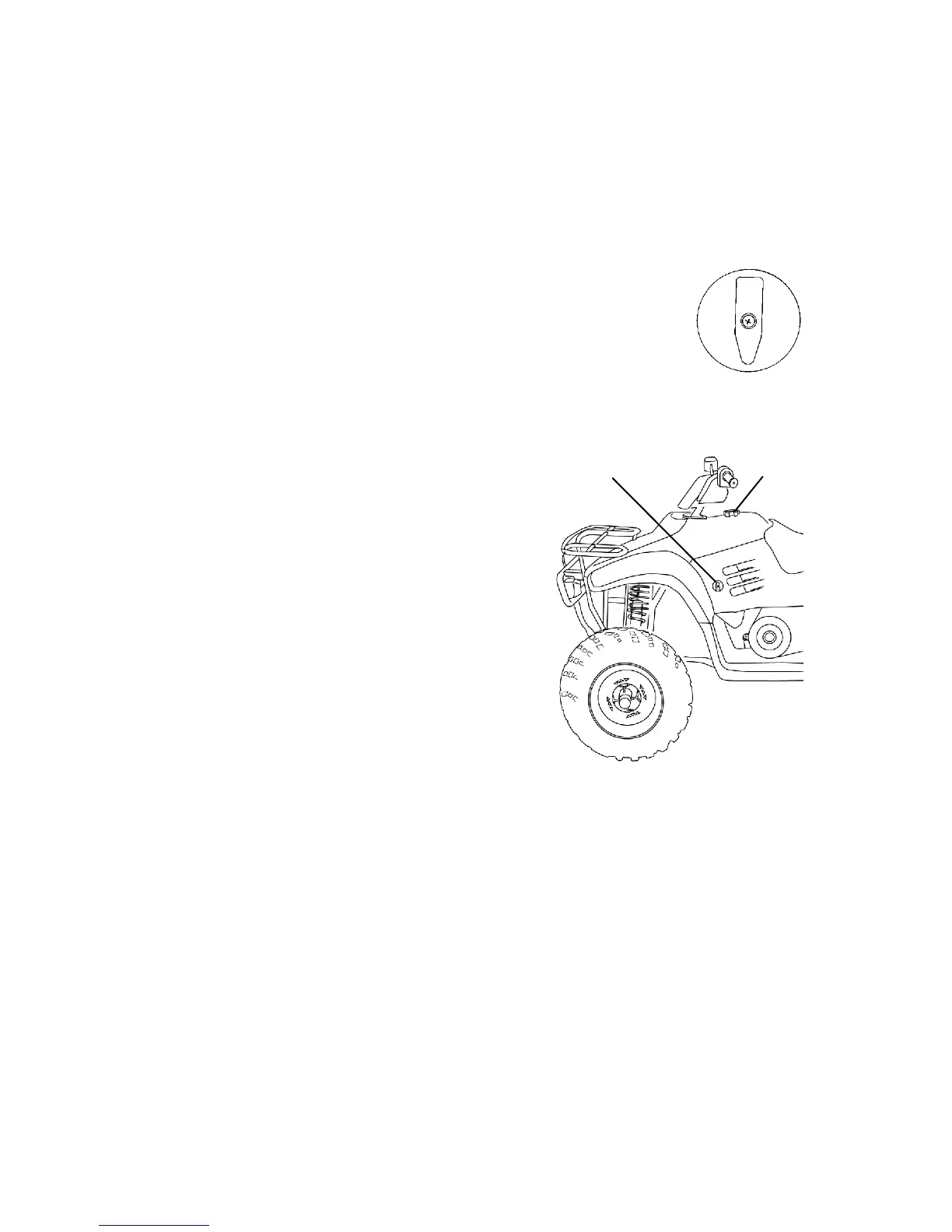

The fuel valve (1) is located on the left side of
the vehicle, either below the fender or on the
side panel. It has three positions:
OFF: For vehicle storage and when transporting.
ON: For normal operation.
RES: For reserve supply if main
supply i s exhausted.
NOTE: There’s about a 7 to 10 mile
(11.2 to 16 km) range on reserve gas.
Always refill the gas tank as soon as
possible after using the reserve supply.
Always return valve t o ON position
after refueling.
Fuel Tank
The fuel tank filler cap (2) is located
directly below the handlebar. Use
either leaded or unleaded gasoline with
a minimum pump octane number of
87=(R+ M/2) octane. Refer to the
specifications beginning on page 105
for capacities.
Fuel Filter
The in-line fuel filter should be replaced by your dealer afte r every 100
hours of operation, or annually. Do not attempt to clean the fuel filter.
RES
ON
OFF
2
1
