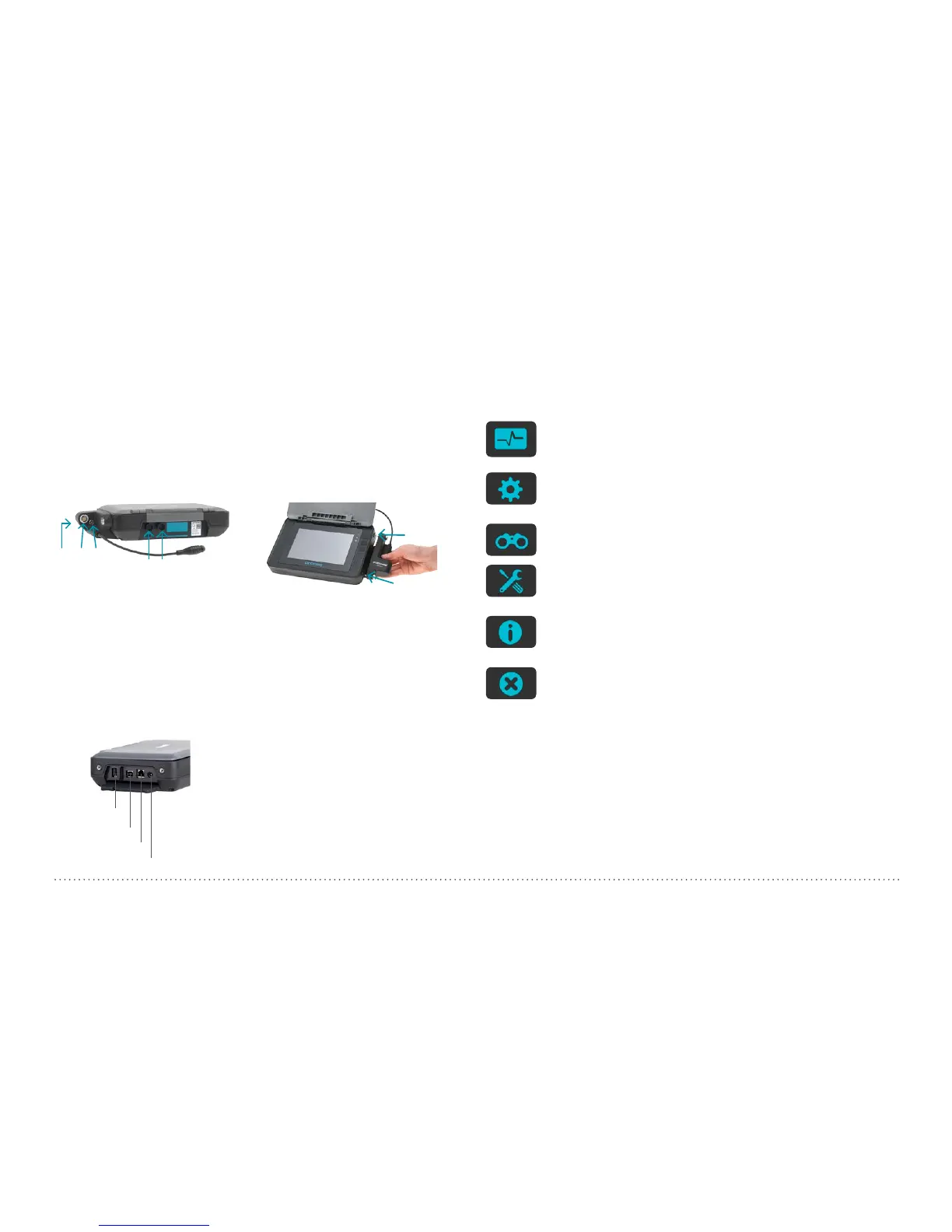

Probes connection Profometer 6

Connect the universal probe to either of the two sockets  or  on the

upper side of the Profometer touchscreen using the probe cable.

Profometer Corrosion

Mount the interface box on the right side of the Profometer touchscreen

using the attached screws  and  and connect the cable to either of

the two sockets  or  on the upper side of the Profometer touchscreen.

Connect the electrode signal cable to socket  and the ground cable to

the socket  of the interface box. Wheel electrodes: connect the path

measurement cable to socket  of the interface box.







 

USB Host:

Connect a mouse, keyboard or USB stick.

USB Device:

Connect application speciﬁc probes and PC.

Ethernet:

Connection for ﬁrmware upgrades.

Power Supply:

Connect the power supply through this connection.





USB Host

USB Device

Ethernet

Power Supply

2.2 Main Menu

On start up, the main menu is displayed. All functions are accessible

directly via the touchscreen.

Return to the previous menu by pressing the back button or the return

icon (arrow) at the top left of the touchscreen.

Measurement

Select to access either Cover Meter or Corrosion measuring

modes.

Settings

Application speciﬁc settings.

Explorer

File manager application for reviewing saved measurements.

System

Select your preferred interface language, date and time set-

tings and power saving options.

Information

Open documentation (Operating Instructions and additional

PDF ﬁles) and device info.

Power off

Switch off the device.

2.3 Upgrade procedure

The following procedure has to be performed in order to upgrade to Pro-

fometer 630 AI / 650 AI functionalities from a Profometer 600 unit or to

unlock Profometer 600 / 630 AI / 650 AI Cover Meter functionalities on a

Profometer Corrosion unit.

The Activation Key can be provided together with the initial purchase

(when a Profometer 630 AI or 650 AI unit is supplied) or can be ordered

anytime after the initial purchase in order to upgrade / unlock to further

functionalities.

Need help?

Do you have a question about the Proceq Pprofometer 600 and is the answer not in the manual?

Proceq Pprofometer 600 Specifications

General

Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Battery Life	Up to 8 hours
IP Rating	IP54
Cover measurement range	Up to 185 mm
Bar diameter measurement range	6 mm to 50 mm
Accuracy of cover measurement	±1 to 4 mm depending on cover depth
Display	Color touchscreen
Data storage	Internal memory
Data transfer	USB
Power supply	Rechargeable Li-ion battery
Accuracy	±1 mm to ±5 mm (cover)
Connectivity	USB
