8 Maintenance and Support
Functional Check

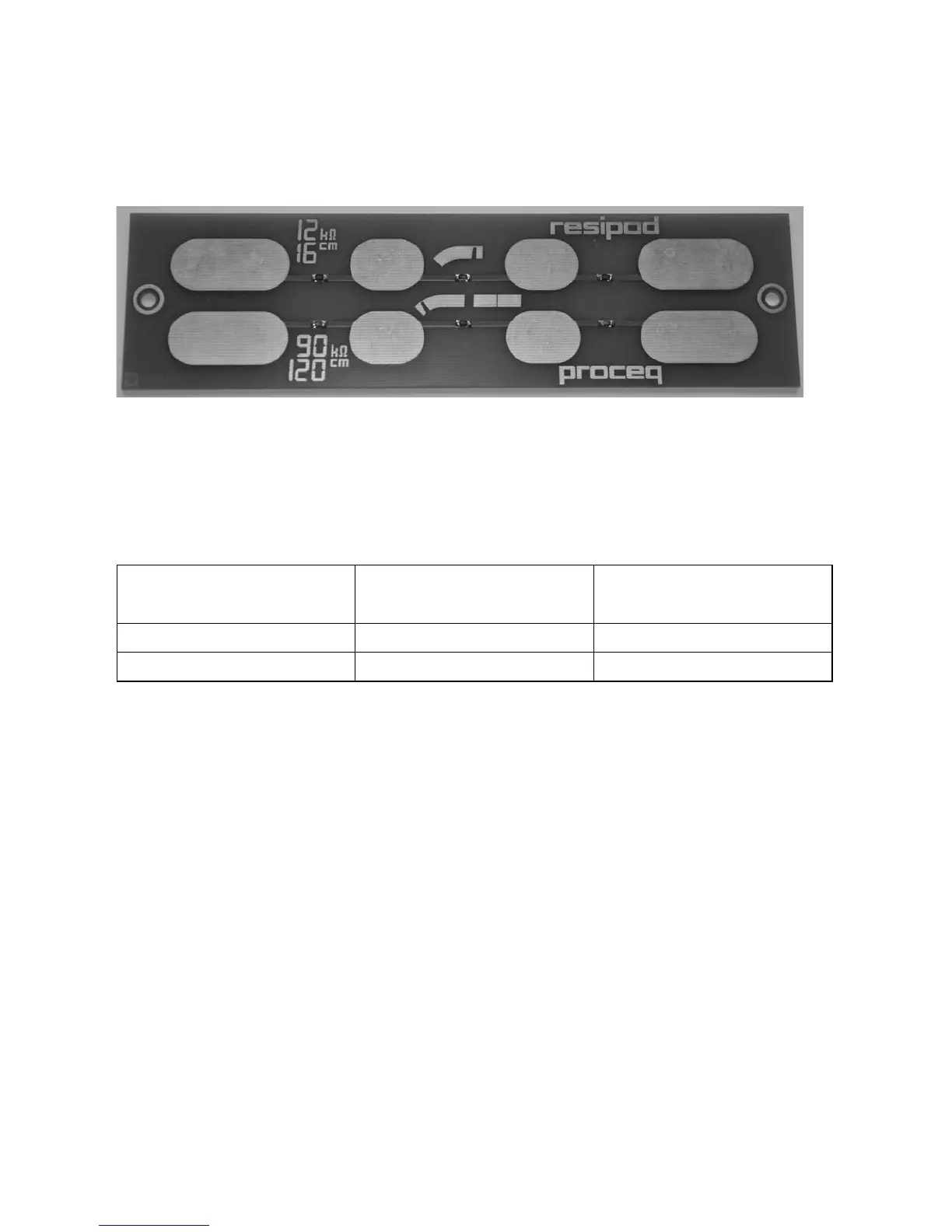

Correct functioning of the Resipod can be checked with the test strip provided. The test strip is
intended to be used by both Resipod models (38 mm,1.5” and 50 mm spacing).
The upper row allows the functional check using the full 200 µA range. The lower row allows the
functional check using the reduced 50 µA range. Resistors to the outer pads limit the maximum
current to approx. 20 µA, (only two segments in the current indicator strip are active).
The expected test results are summarized in the table below:
Current range
Expected test result
38 mm (1.5”) spacing
Expected test result
50 mm spacing
200µA (upper row) 12 (±0.2) kΩcm 16 (±0.2) kΩcm
50 µA (lower row) 90 (±1.8) kΩcm 120 (±2.4) kΩcm
