QNAP TS-1635AX User Manual

3. Installation and Configuration
This chapter provides specific hardware and firmware installation and configuration steps.
Hardware Installation
This section provides information on installing drives, memory modules, and expansion cards.
Drive Installation
The TS-1635AX is compatible with 3.5-inch and 2.5-inch hard drives, and 2.5-inch solid state drives.
Installing 3.5-inch Hard Drives on 3.5-inch Trays
Warning
• Installing a drive deletes all data on the drive.
• Observe electrostatic discharge (ESD) procedures to avoid damage to components.
1. Power off the NAS.

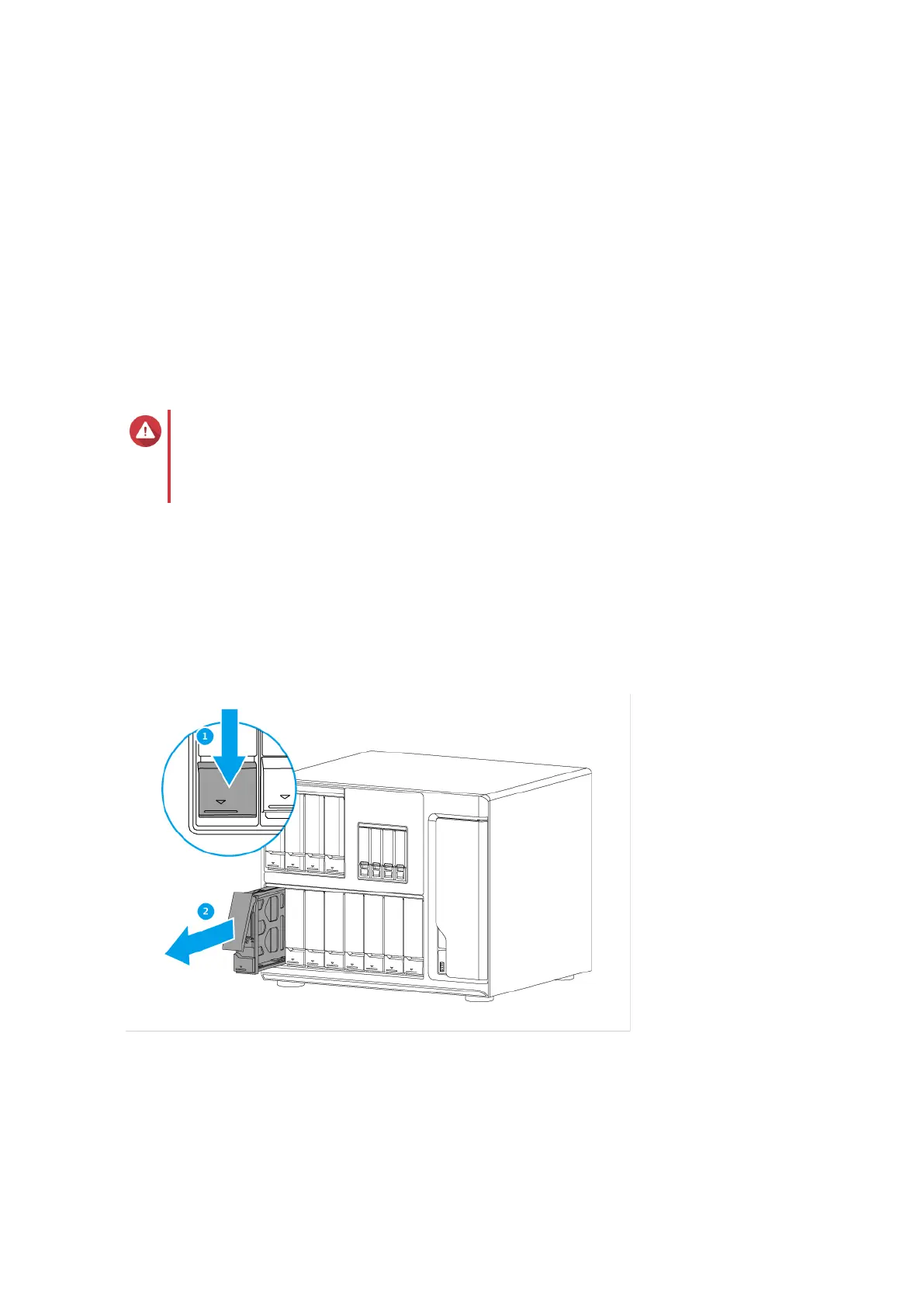

2. Remove the drive tray.
a. Slide the lock down.
b. Pull the tray handle outward.
c. Pull the tray out.
3. Install a drive on the tray.
a. Remove the fastening panels from the sides of the drive tray.
TS-1635AX User Guide
Installation and Configuration 12

QNAP TS-1635AX Specifications

General

Internal memory	4 GB
Internal memory type	DDR4
Maximum RAM supported	16 GB
RAID levels	0, 1, 5, 6, 10, 60, JBOD
RAID support	Yes
Storage drive size	- \
Storage drive capacity	0 GB
Supported file systems	FAT32, HFS+, exFAT, ext3, ext4
Storage drive interface	-
Storage drives installed	No
Number of M.2 (M & B) slots	2
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD & SSD
Total installed storage capacity	0 TB
Number of storage drives installed	16
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Fiber optic connector	SFP+
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Processor cores	4
Processor family	Marvell
Processor frequency	1.6 GHz
Processor architecture	ARM Cortex-A7
PCI Express slots version	3.0
Chassis type	Desktop
Cooling type	Active
Display type	LCD
Fan diameter	92 mm
Product color	Black
Fan diameter 2	60 mm
Number of fans	4 fan(s)
Cable lock slot type	Kensington
Number of built-in speakers	1
Type	NAS
Noise level	23 dB
Device class	Small & Medium Business
Backup features	Cloud, iSCSI LUN
Browser supported	Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
Security algorithms	256-bit AES
Fan voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	250 W
Storage temperature (T-T)	5 - 95 °C
Operating temperature (T-T)	0 - 40 °C
Operating system version	4.3.4
Operating system installed	QNAP Turbo System
Cables included	AC, LAN (RJ-45)

Weight and Dimensions

Depth	319.8 mm
Width	369.89 mm
Height	303.84 mm
