200 Series Conveyor Operator Manual Issue 1 May 2011
4 Machine Setup
To help envelopes feed onto the conveyor properly, a backstop or rollers will need to be set
up. This is described below.
4.1 Angled Version

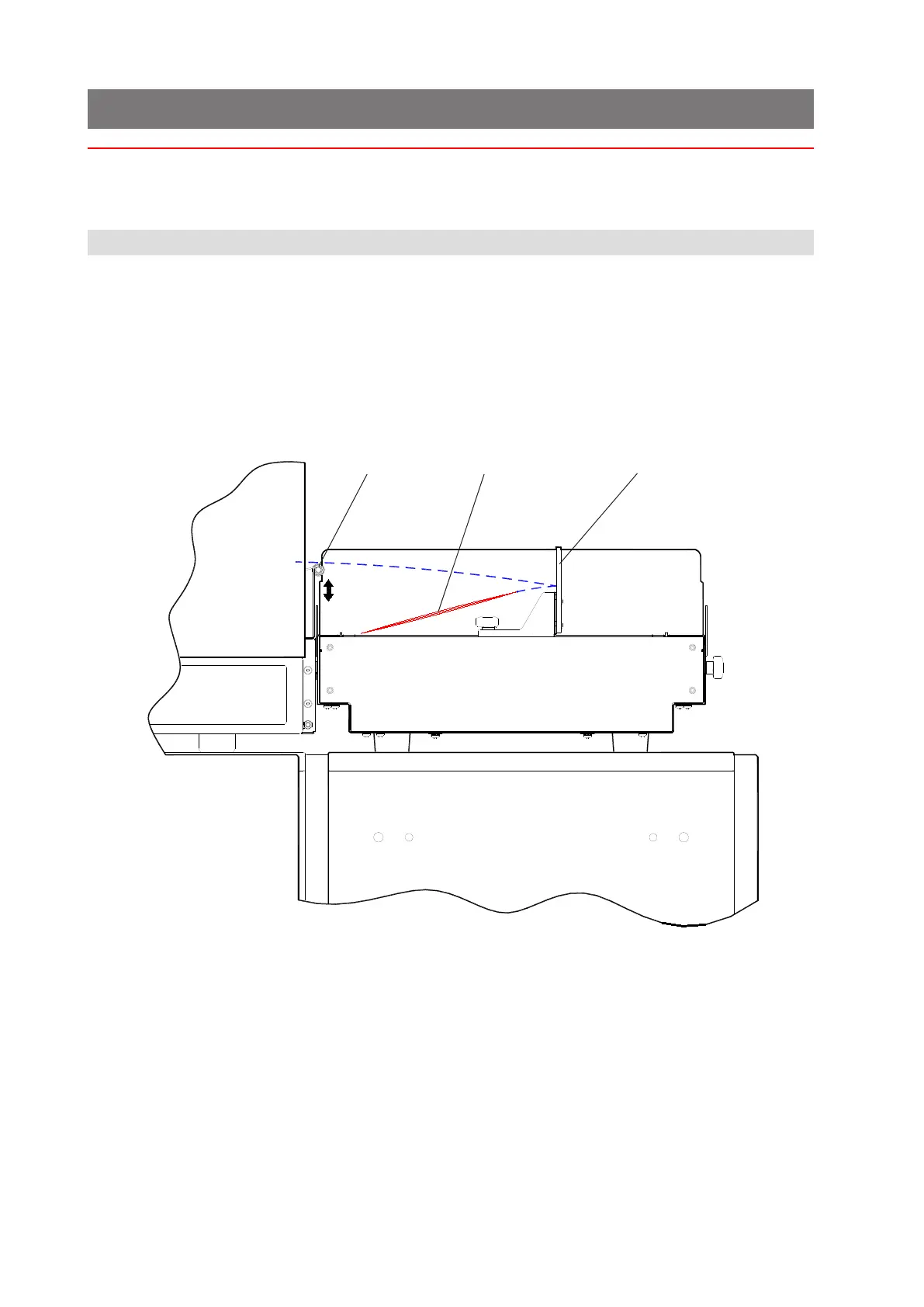

Adjust the backstop shown below, so that the ejecting envelope contacts it approximately
halfway up, and then falls fully onto the conveyor surface.
This can be further assisted by raising or lowering the roller plate to adjust the angle of the
ejecting envelope. The plate moves in indents.
Note: Some envelopes may be found to feed better if the plate is pulled out and turned
round the other way.
Roller plate
Backstop
Envelope
When adjustments are complete, ensure the adjustment knob is fully tightened.
