810-1902-03 Rev D TM1 Installation Guide

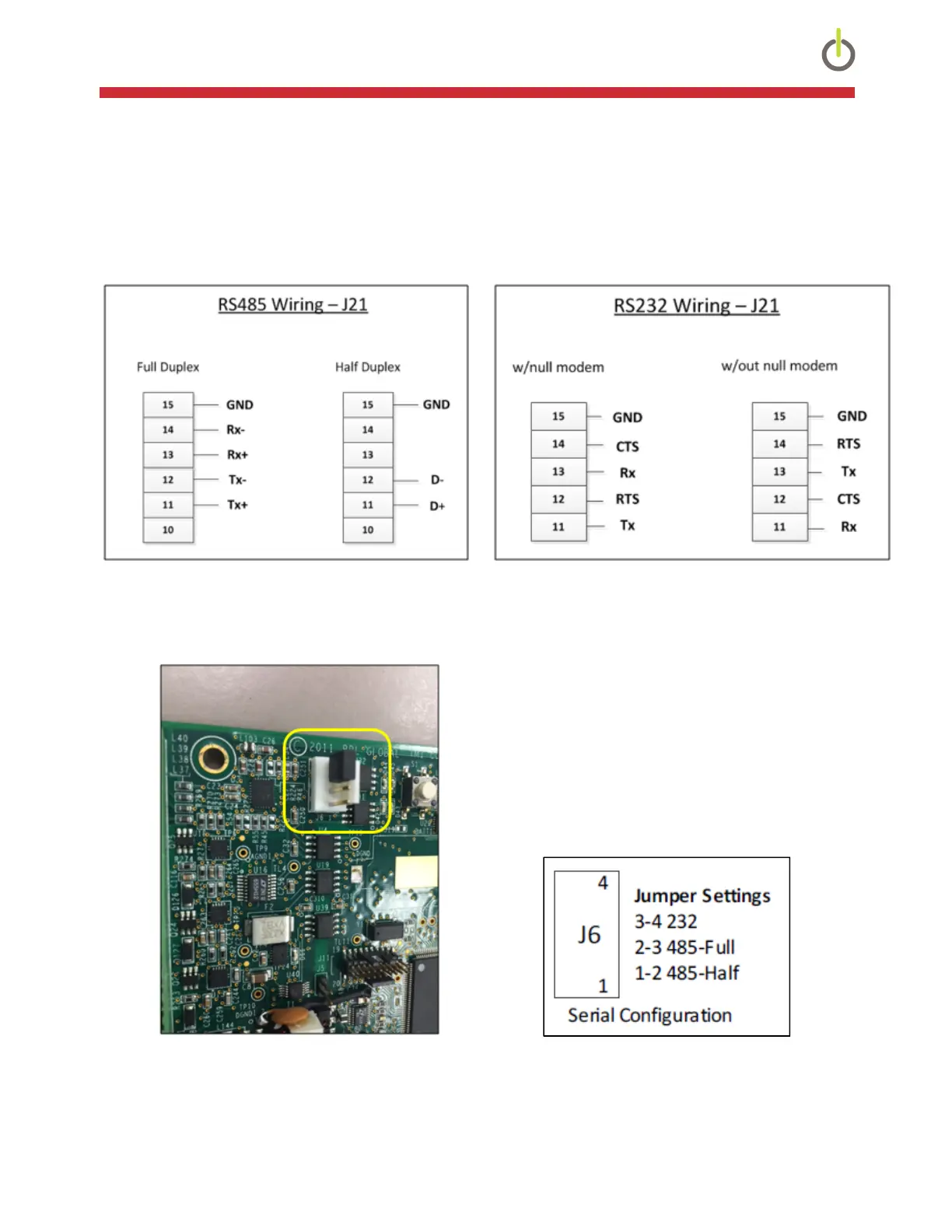

RS485 / RS232 Wiring

Connections for RS485 / 232 serial communications are terminated on J21, as indicated below.

The jumper on J6 must be positioned properly, depending on the type of serial communications desired

Figure 13: J6 Jumper setting
