SBC NRG HIGH POWER - REV001A
BATTERIES

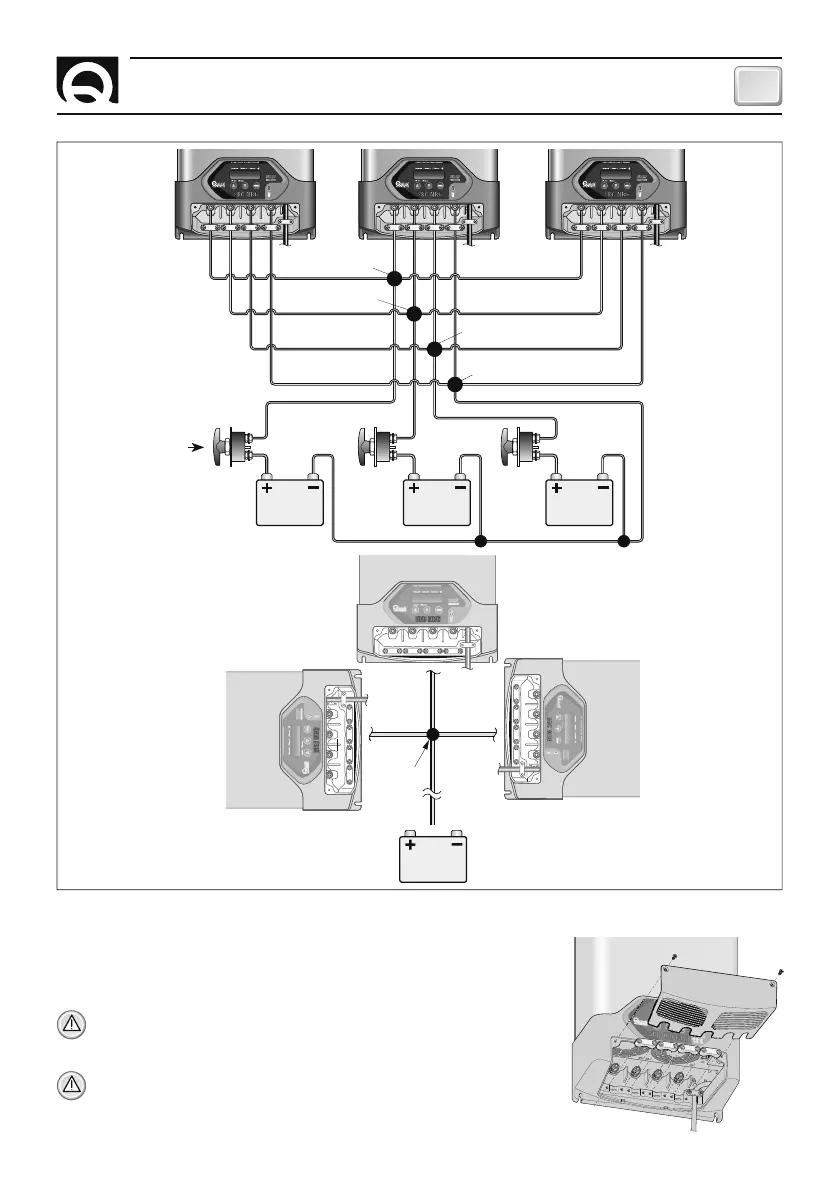

To access the output terminals it is necessary to remove the cover by loosening
the two screws which hold it on (see fig. 2 part A).
Before making the connections to the cables from the battery, loosen or remove
the cable clamps by loosening the screws which fix it to the base (fig.2 part B).
WARNING: during charge, batteries can generate explosive gases, there-
fore avoid sparks or naked flames. Provide adequate ventilation to the
battery area whilst charging.
WARNING: before connecting the batteries check the polarity of the ca-
bles from the battery. Reversing the polarity, could seriously damage the
battery charger even if protected by fuses.
OPERATION
FIG.2A
FIG.2B
L2
L1
L3
J
L
BATTERY
FIG. 2
PART. A
PART. B
J
M
J
CN
BATTERY
SWITCHES
BATTERY
N° 1
BATTERY
N° 2
BATTERY
N° 3
J
M
J
CN
JS2
JS1
JS2
JS1
L1 = L2 = L3 Shorter than 2 meters
L Shorter than 6 meters
