OPERATION
CONTROL PANEL

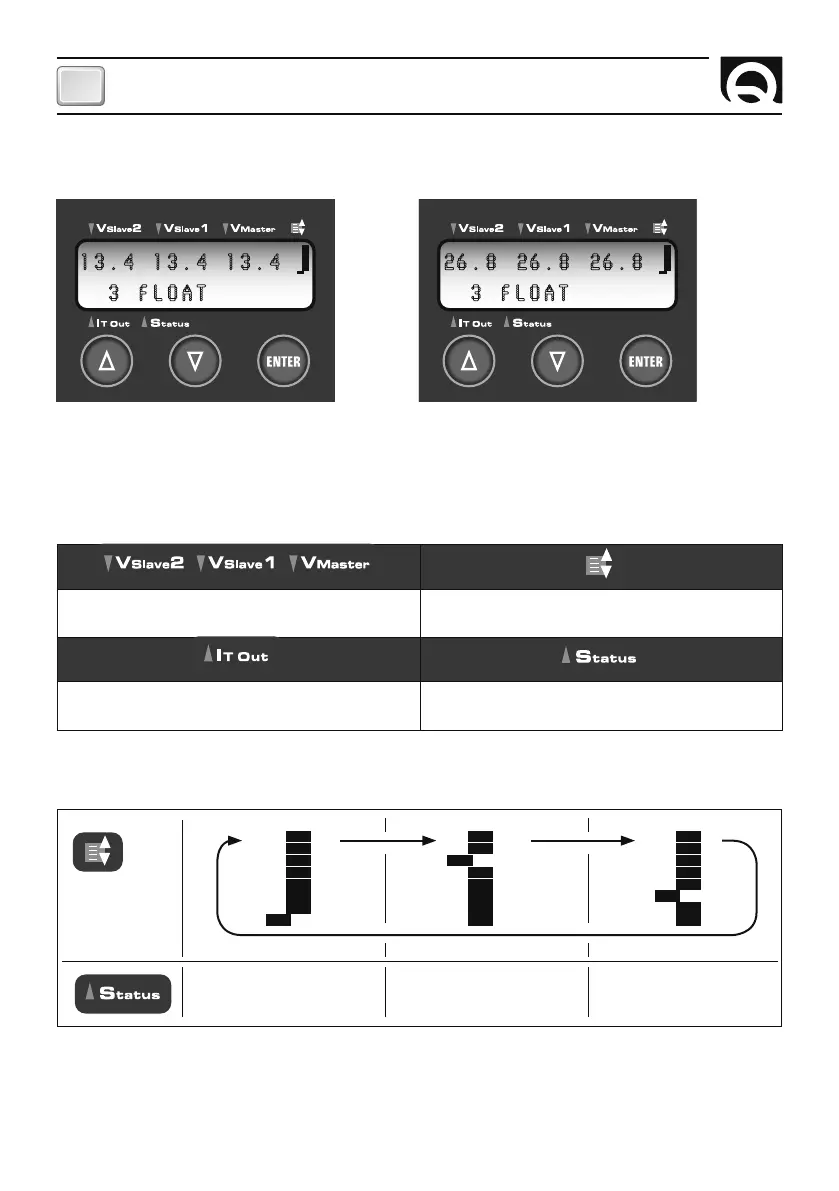

The control panel is made-up of a alphanumeric LCD display and three buttons.
1 3.4 13 . 4 1 3.4
3
F L O A
t
ABSORPTION DERATING AC LOW
2 6 . 8 26 . 8 2 6 .8
3
FLOA
t
EXAMPLE
SBC 1200 NRG FR
EXAMPLE
SBC 1450 NRG HR - SBC 1950 NRG HR - SBC 2450 NRG HR
BUTTONS - UP - DOWN - ENTER
Using these buttons you can navigate the system menu, change the parameters and confirm selections.
A quick pressure and release of the keys leads to the lighting up of the backlighting for 30 seconds.
Information concerning the voltage measure on the output termi-
nals.
The symbol which appears in this area shows the number and the
position of the status messages present in the circular queue.
Information concerning the total current supplied by the three
outputs.
Status indications of the system (charging status, warnings or
problems with automatic reset).
Example with 3 messages present in the circular queue: ABSORPTION status, DERATING and LOW AC voltage.
