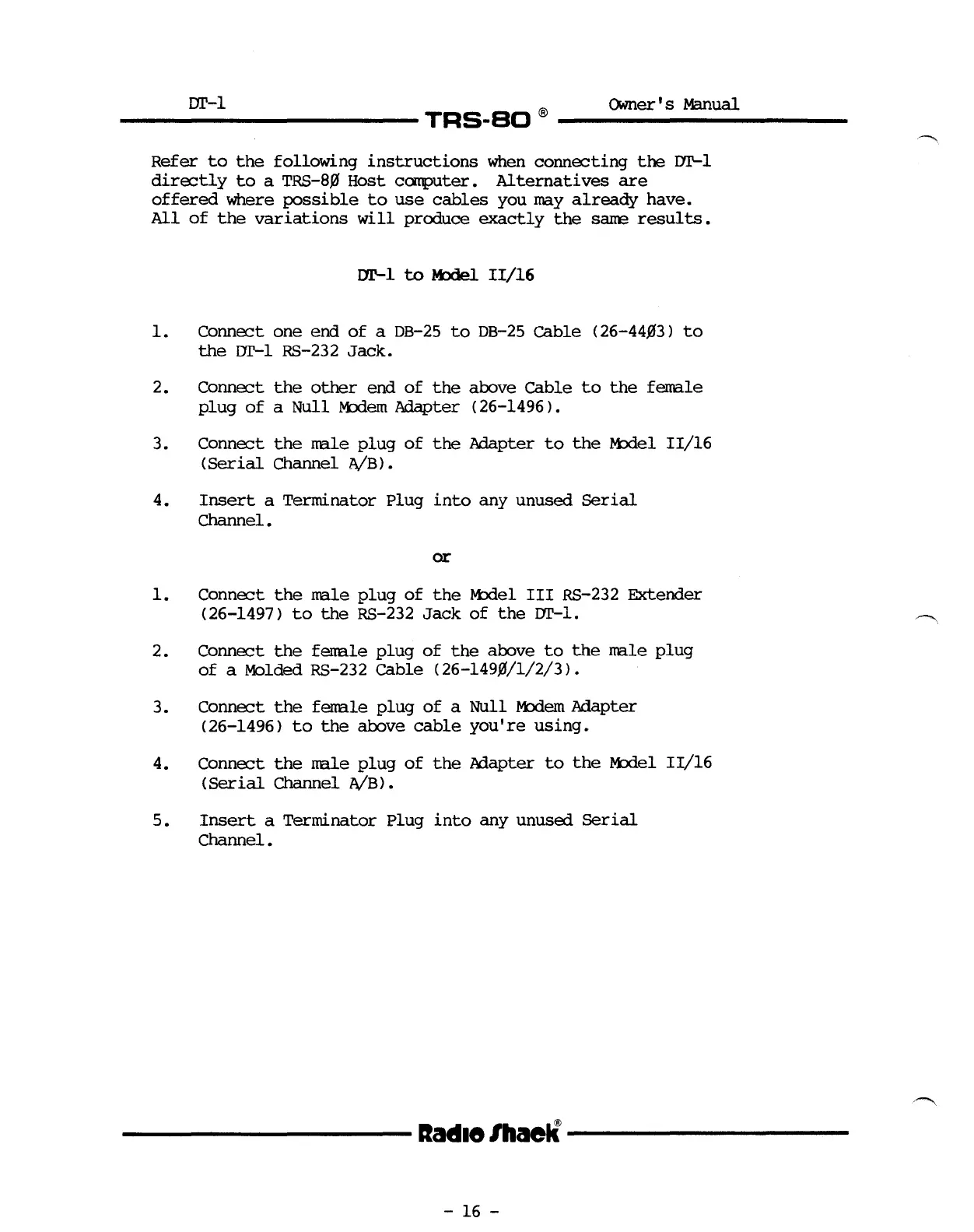

DI'-l
CMner' s Manual
-----------
TRS-BO
®
----------
Refer
to
the
following
instructions
when
connecting
the
DI'-l
directly
to
a TRS-8.0
Host
canputer.
Alternatives
are
offered
where
possible
to
use
cables
you
may
already
have.
AlI
of
the
variations
will
produce
exactly
the
sane
results.
DI'-l
te
~
11/16
1.
Connect
one
end
of
a DB-25
to
DB-25
cable
(26-44.03)
to
the
DI'-l RS-232
Jack.
2.
Connect
the
other
end
of
the
above
cable
to
the
fema.le
plug
of
a
Null
.MJdem
Adapter
(26-1496).
3.
Connect
the
male
plug
of
the
Adapter
to
the
.MJdel
11/16
(Ser
ial
Channel
A/B).
4.
Insert
a
Terrninator
Plug
into
any
unused
serial
Channel.
or
1.
Connect
the
male
plug
of
the
MJdel
III
RS-232
Extender
(26-1497)
to
the
RS-232
Jack
of
the
DT-l.
2.
Connect
the
fema.le
plug
of
the
above
to
the
male
plug
of
a Molded RS-232
cable
(26-149.0/1/2/3).
3.
Connect
the
fema.le
plug
of
a
Null
.MJdem
Adapter
(26-1496)
to
the
above
cable
you're
using.
4.
Connect
the
male
plug
of
the
Adapter
to
the
.MJdel
11/16
(Serial
Channel
A/B).
5.
Insert
a
Terminator
Plug
into
any
unused
serial
Channel.
---------Itadle/haell---------
- 16 -
