* REMOTE switch. This switch is used to operate the Cassette Recorder manually.
* PRINTER ON/OFF. This switch is used to turn the printer on and off to conserve batteries when not in use.
* LOW BATTERY indicator. This indicates when there is insufficient power to operate the PC-3 Printer/Cassette Interface
* Paper feed button. Pressing this key will feed the paper in the printer.
PC-3 POCKET COMPUTER
col.,,:
EAR
Lj-it-t----- AC ADAPTER
JACK
REMOTE JACK
PC-3 PRINTER/ MICROPHONE JACK
CASSETTE INTERFACE EARPHONE JACK

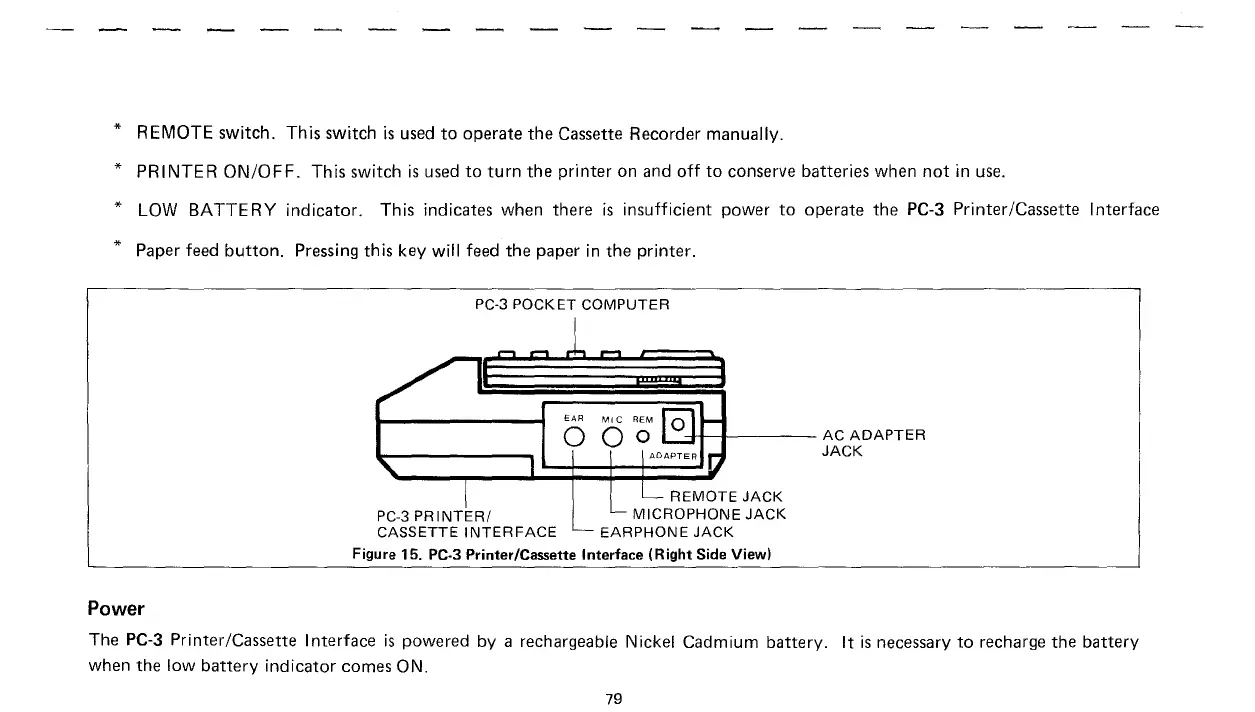

Figure 15. PC-3 Printer/Cassette Interface (Right Side View)
Power
The PC-3 Printer/Cassette Interface is powered by a rechargeable Nickel Cadmium battery. It is necessary to recharge the battery
when the low battery indicator comes ON.
79
