RADWIN2000CPlusUserManual Release3.5.70 18‐11
RunningtheLinkBudgetCalculator Chapter18

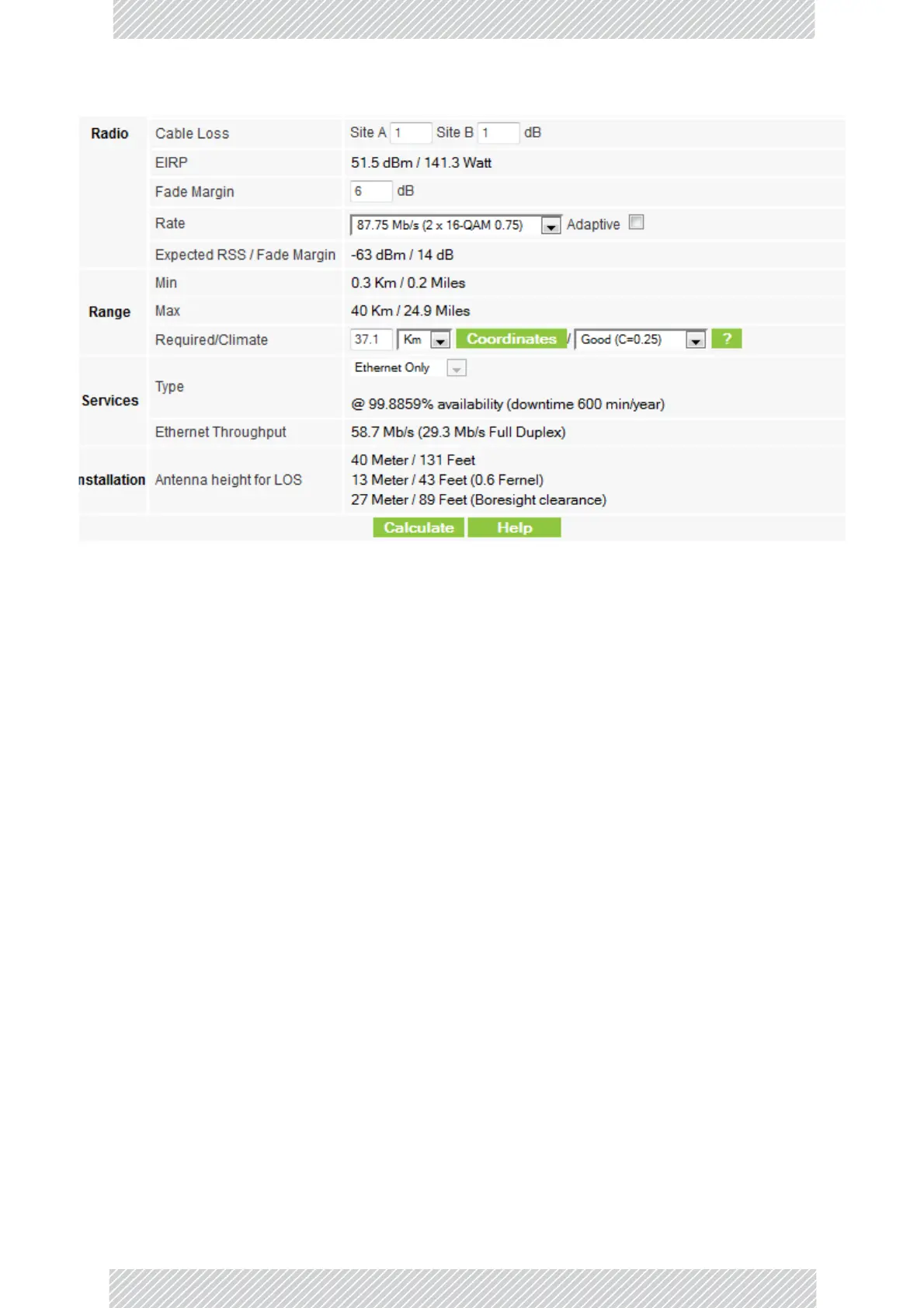

Figure18‐9:LBC‐Resultssection
TheExpectedPerformanceparametersarecalculatedanddisplayed:
•ExpectedRSS‐theexpectedRSSthattheRADWINManagershowswhentheRADWIN
2000CPlusODUsareoptimallyaligned
•ServicesType‐Ethernetonly
•EthernetRate‐maximumthroughputavailableforthechosenparametercombination
• AntennaheightforLOS–theminimumantennaheightrequiredforline‐of‐sightopera‐
tion.Itisthesumoftheheightrequiredforboresightclearanceduetotheearth’scur‐
vatureplustheheightrequiredtocleartheFresnelzone
Iftheexpectedperformanceisnotsuitable foryourapplication,trydifferentparametersand
repeatthecalculation.
