Accessories Chapter4

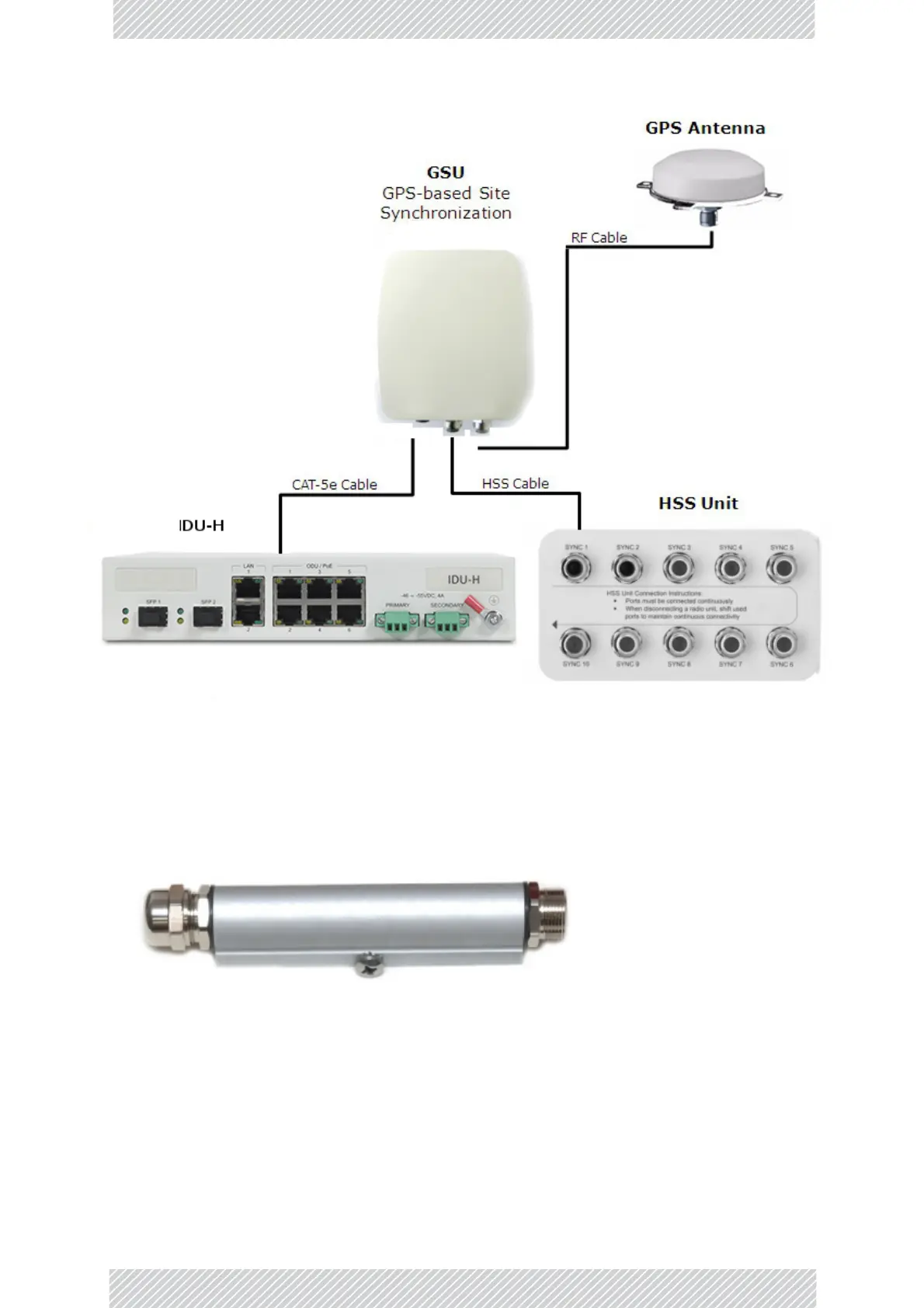

Figure4‐11:GeneralGSUconfigurationusingbothEthernetandanHSSunit
LightningProtectorUnit(LPU)
Theuseoflightningprotectionisdependentonregulatoryandenduserrequirements.The
RADWIN2000CPlusODUisdesignedwithsurgelimitingcircuitstominimizetheriskof
damageduetolightningstrikes.ItisdesignedforusewithRADWINproducts.
Figure4‐12:RADWINLightningProtector
Thelightningprotectorincorporateshigh‐powergasdischargetubeandcurrenttransistor
protectioninasingleprotectorunit.TechnicalspecificationsareshowninAppendixA.
EthernetcableRepeater
TheRADWINEthernetrepeaterenablesyoutoextendthePoEtoODUcablebeyondthe
100mlimit(butnomorethan200m).Theunitlooksphysicallylikethelightningprotection
deviceinFigure 4‐12.Itsuseisverysimpleasshowninthefollowingschematic:
