RADWIN2000CPlusUserManual Release3.5.70 6‐22
TransmissionRatio Chapter6

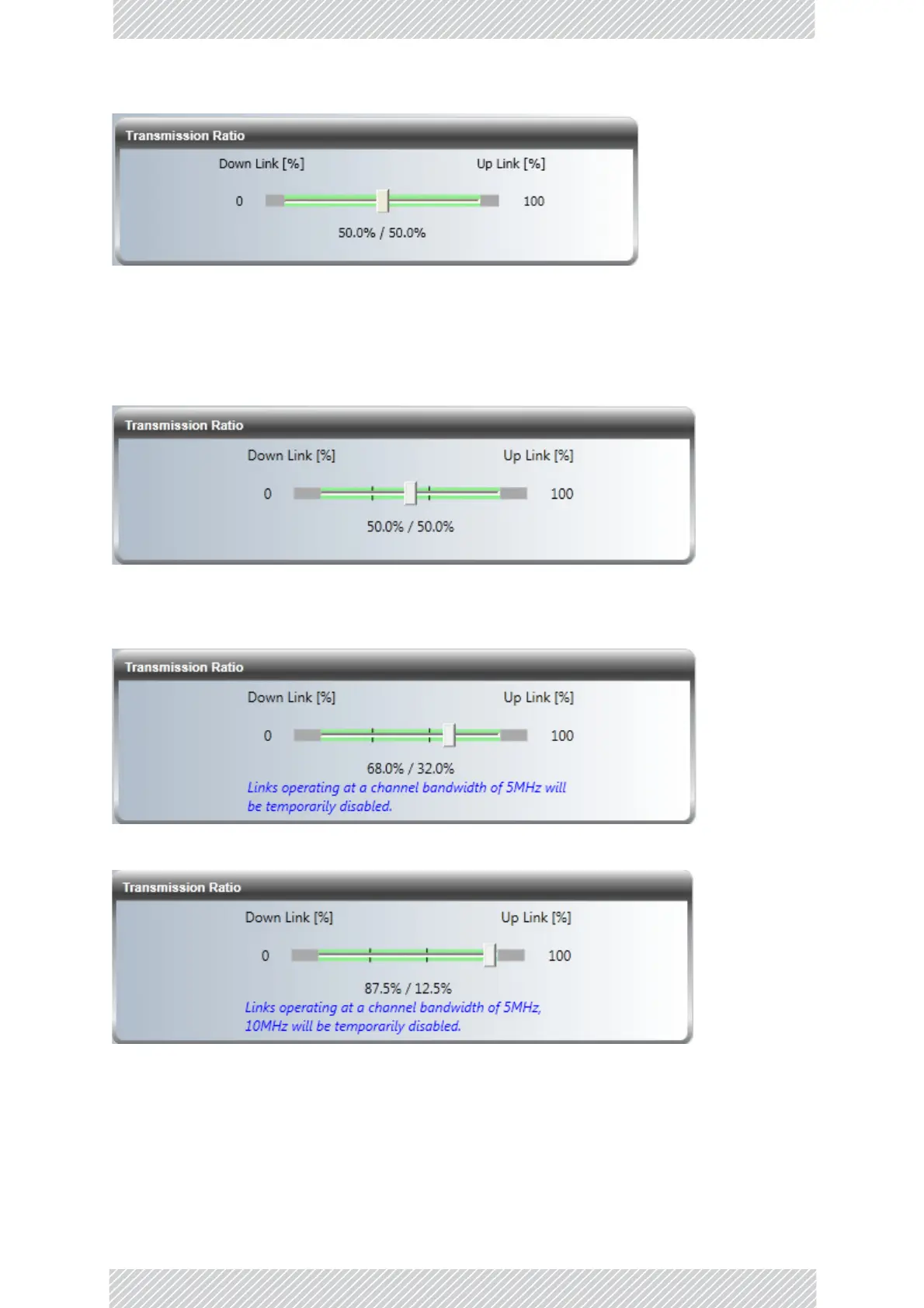

Figure6‐13:HBSCollocatedclientorindependentunit
TheallowableTransmissionRatioisalsodependentonMasterODU’sHSS(collocation)status.
(ForfurtherdetailsaboutconfiguringandusingHSS,seeChapter10.)
IftheMasterODUisanHSSmaster,youwi llseesomethinglikethis:
Figure6‐14:HBSCollocatedmaster
Movingtheslidertotherightinstages,yieldsthefollowing:
Theeff ectiveavailablerangeforAsymmetricallocationisdeterminedbychannelbandwidth
asshownaswellaslinkdistance.Inthiscontext,“link”isacollocatedHBS,RADWIN2000C
PlusMasterODUorRADWIN2000ODU.
