Rain Bird ST8-WiFi Manual

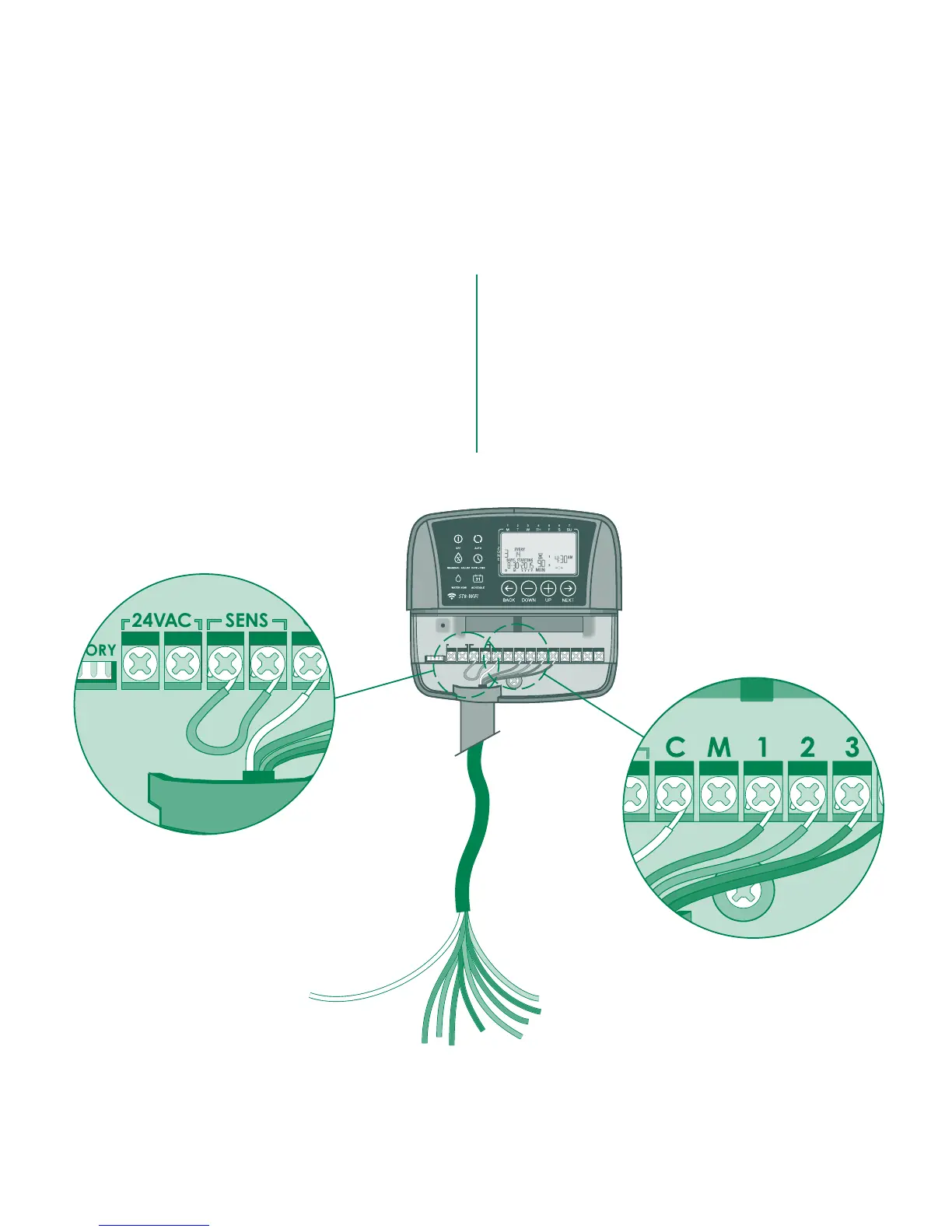

A. CONNECT COLORED
ZONE WIRES
from each ZONE valve to the
corresponding ZONE number on
the timer terminal block. Refer to
your photo of the old timer’s wiring.
B. CONNECT THE WHITE
COMMON WIRE
to the COMMON (C) terminal.
3. Connect zone wires
24VAC
ACCESSORY
SENS
123 4567 8C M
RESET
24VAC
ACCESSORY
SENS
123 4567 8C M
B A
Yellow jumper wire remains
attached unless you are
installing a rain sensor.
