LAN cable connection
86 / 107
The following manual describes how to connect a LAN cable to the LAN interface of your
appliance.
The LAN interface is located
on the underside on the left
side of the appliance (for
the XS model, it is on the
rear panel on the right at the
back).
Unscrew the splash
protection cover.

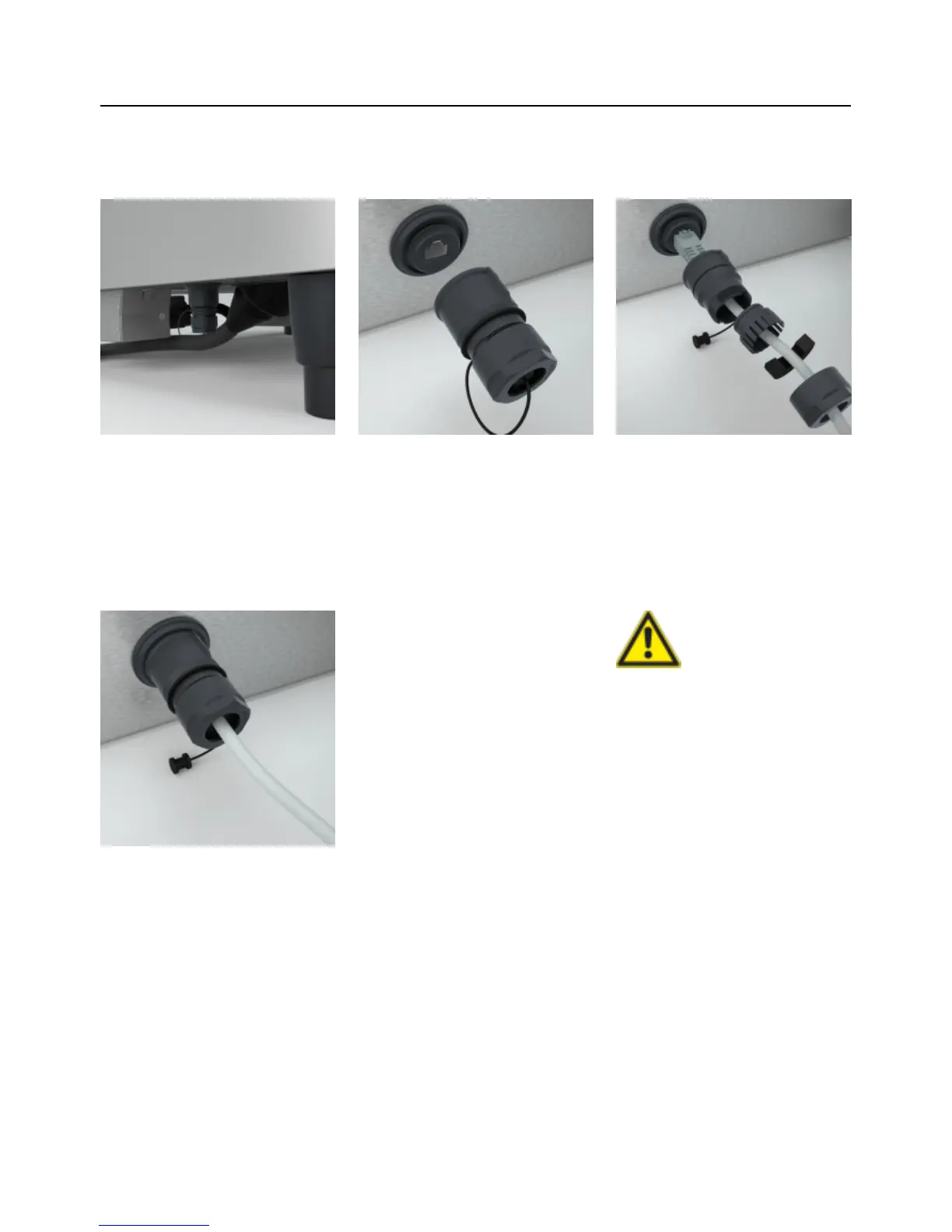

Thread the individual
components on the cable,
as shown in the diagram.
Then plug the LAN cable
into the socket.
Now screw together the
individual components of
the splash protection cover.
Now assemble all the
components (starting
from the appliance) back
together.
The components must be
assembled tightly without
using tools so as not to
damage the components
and the gasket elements.
NOTE:
If gasket elements are
damaged, the splash
protection may not work.
