Raven SmartTrax User Manual

3
Manual No. 016-5030-010 Rev. A 11
Hydraulic System Installation
Mount the SmarTrax Valve

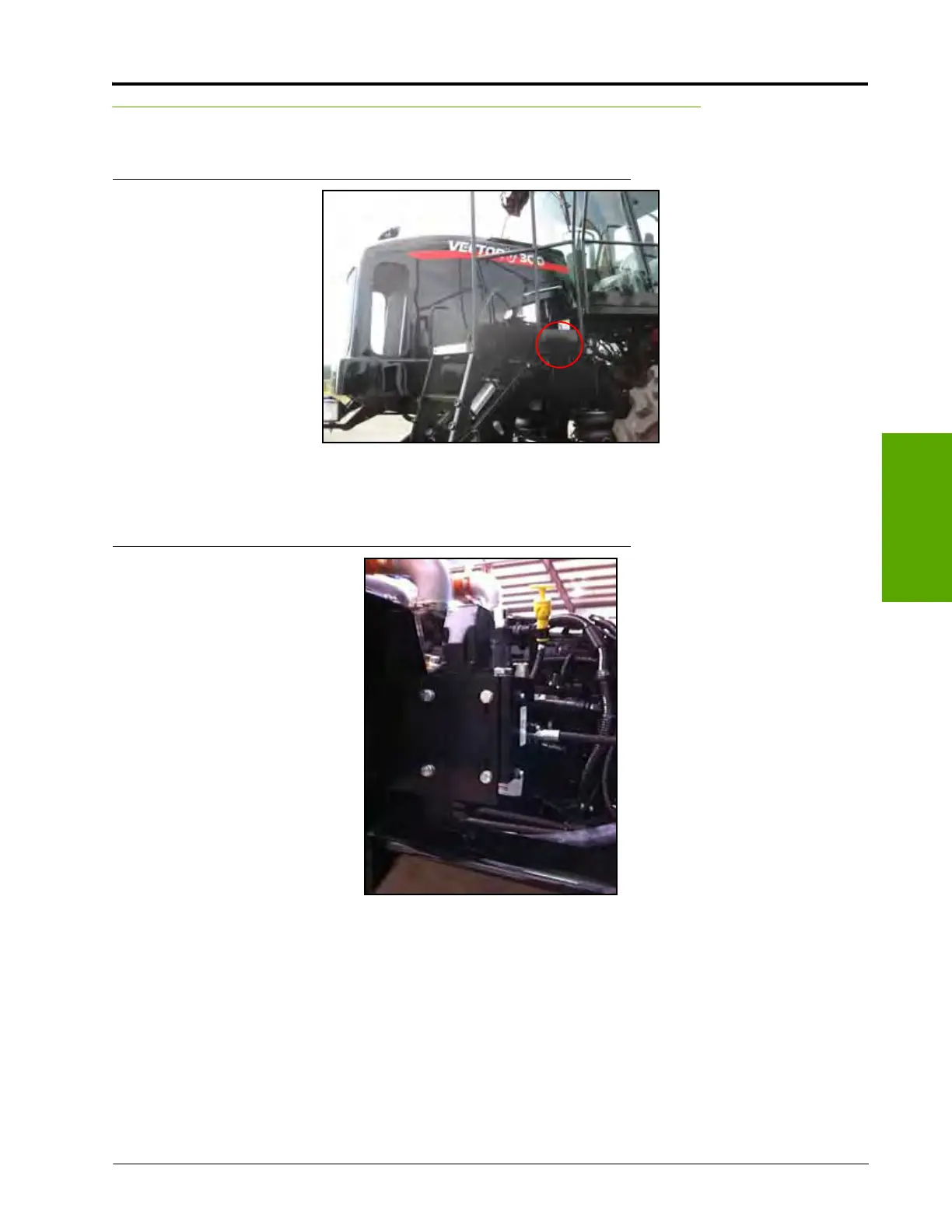

FIGURE 2. SmarTrax Valve Mounting Location
1. Identify the SmarTrax valve (P/N 334-0003-088) mounting location on the inside of the machine’s frame,
below the walkway.
FIGURE 3. SmarTrax Valve Installed
2. Secure the SmarTrax valve to the valve mounting bracket using four 5/16”-18 x 7/8” hex bolts (P/N 311-
0052-104) and four 5/16” lock washers (P/N 313-1000-019).
3. Remove the top bolt from the machine’s catwalk.
4. Align the lip of the valve mounting bracket with the hole in the catwalk and the adjacent hole in the
machine’s frame.
5. Install the valve mounting bracket on the machine using the machine’s bolt that was removed in step 2 and
one 3/8”-16 UNC x 1-4” bolt (P/N 311-0054-106, one 3/8” flat washer (P/N 313-2300-013), and one 3/8”-16
UNC 3B nylon insert lock washer (P/N 312-4000-061).
