Manual No. 016-5030-010 Rev. A 23
Cab Component Installation
1. Select a suitable location for the foot switch (P/N 063-0172-470) to be installed.
Note: The foot switch should be installed in a location where the operator has easy access to it and is
able to fully press the pedal.
2. Using the holes in the foot switch as a template, drill holes in the floor of the cab.
3. Secure the foot switch to the floor by installing the supplied screws in each of the mounting holes.
4. Route the foot switch cable to the node mounting location.
Install the Node Harness

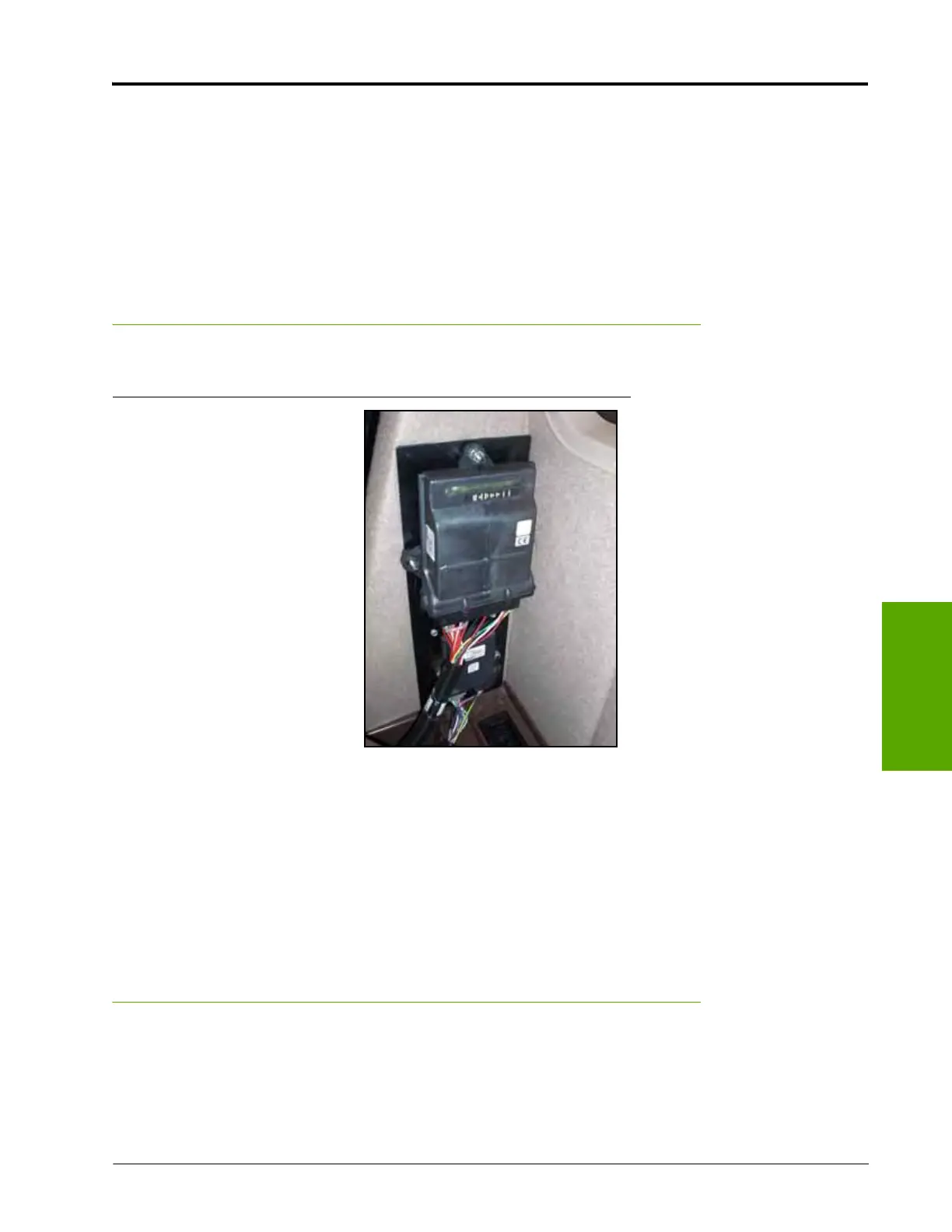

FIGURE 4. Node Harness Installed
1. Install the two large, rectangular connectors of the node harness (P/N 115-4001-173) into the correct ports
of the SmarTrax node (P/N 063-0173-228).
2. Tighten the bolts on the node connectors to secure the connections.
3. Locate the ENABLE connector and connect it to the foot switch cable connector.
4. Connect the DGPS connector to the receiver or other GPS source.
5. Connect the DGPS OUT connector to the DGPS connector on the console cable.
6. Connect the unlabeled 8-pin Deutsch connector to the mating 8-pin connector on the console cable.
Install the Valve Harness
1. Connect the CHASSIS connector of the valve harness (P/N 115-4001-174) to the mating 6-pin connector of
the node harness (P/N 115-4001-173).
2. Connect the TRANSDUCER connector to the pressure transducer (P/N 422-0000-086) installed in Port PS
of the SmarTrax valve (P/N 334-0003-088).
