5.3Polemounting
Ifyouwanttopole-mounttheantenna,obtainapole
ofsuitablelengthwitha1inch14TPIthread.

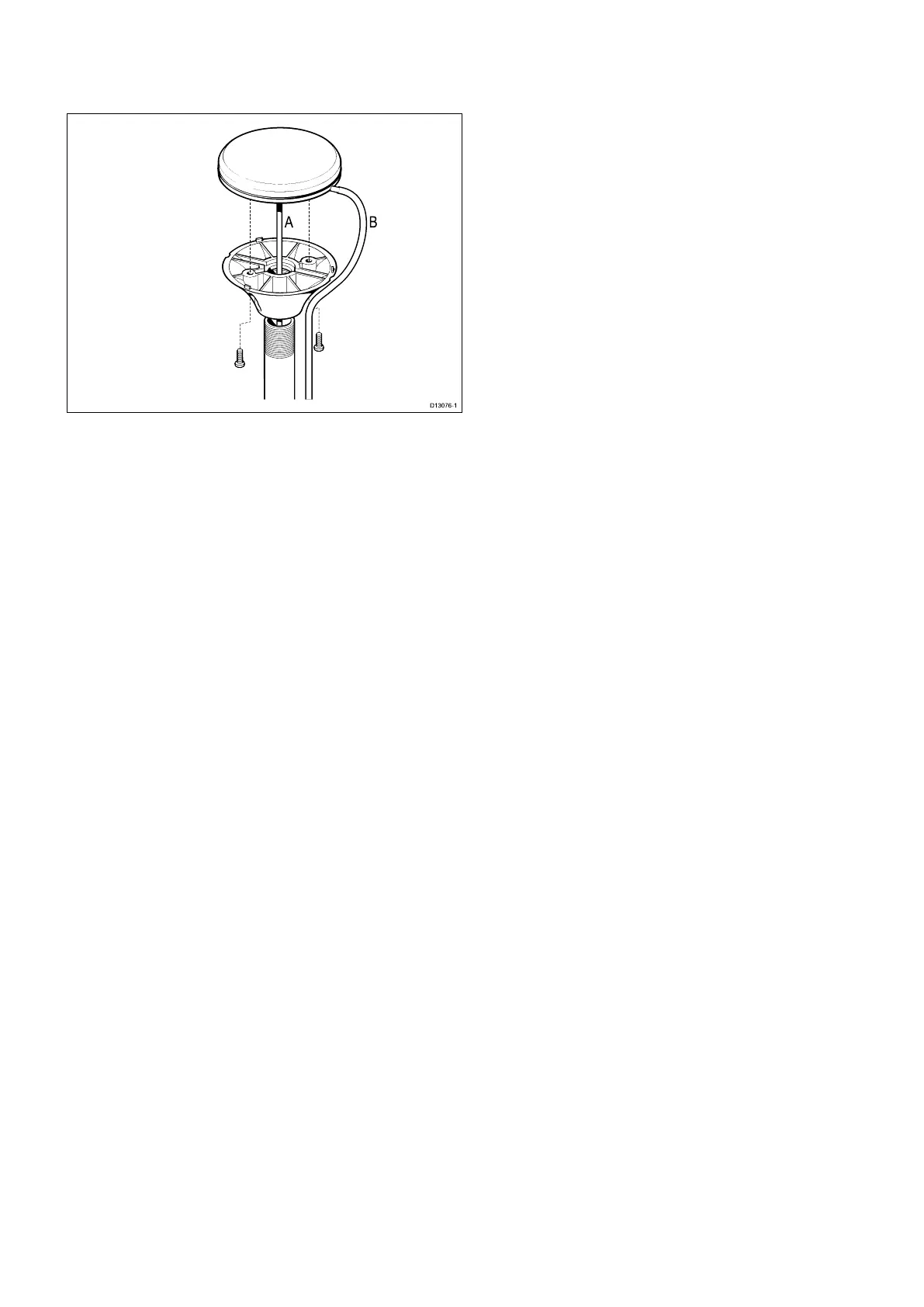

D13076-1
A B
1.EnsuringthattheAntennalocationrequirements
aremet,securelyattachthepoletoasuitable,
stablepoint.
2.Screwthepolemountadaptorfullyontothepole
andensureitissecureonthepole.
3.Routetheantennacableasfollows:
i.Ifyouwanttoroutetheantennacabledirectly
downfromtheantenna(optionA),feedit
throughthecenterofthepolemountadaptor
andthendownthroughthepole.
ii.Ifyouwanttoroutetheantennacableoutof
thesideoftheantenna(optionB),removethe
twoplastictabsfromthecablechannel,then
feedthecablealongthechannel.
4.Ensuringyoudonottrapthecable,placethe
antennaonthepolemountadaptorsothescrew
holesalign,thensecuretheantennawiththe
screwsprovided.
