3.5Antennalocationrequirements
Theantennacanbeusedtoimprovethereception
ofyourMFD’sbuilt-inGNSS(GPS/GLONASS)
receiver.DoNOTconnectanyotherantennatothe
MFD’sGA150connector.
Theantennacanbemountedeitheronaat
horizontalsurfaceoronasuitablepole.
Ifyouintendtosurfacemounttheantenna,ensure
youhaveaccesstotheundersideofthemounting
surface.
Ifyouintendtopole-mounttheantenna,thepole
needstohavea1inch14TPIthread.
Important:Theantennamustbemountedina
locationthatprovidesagooddirectlineofsiteto
theentiresky,aroundthehorizon.
Ensurethattheselectedmountinglocationis:
Openandclearofanyobstructions(suchas
masts,searchlights,orotherstructures)thatcould
blockline-of-sighttothesky.
Aslowaspossible,tokeeptheantennaasstable
aspossible.Themorestabletheantenna,the
moreeffectivelyitwilltracksatellitesandprovide
stabledata.
Asfaraspossible(atleast1m(3ft)fromother
antennaeandelectronicequipment.
DoNOTmounttheantenna:
Inanyareawhereitcouldbesteppedonortripped
over.
Upamast.Thiswillcausetheantennatoswing
andgivesignicanterrorsinpositiondata.
Inthedirectpathofaradarbeam.
AntennaMounting&EMEExposure
Foroptimalradioperformanceandminimalhuman
exposuretoradiofrequencyelectromagneticenergy,
makesuretheantennais:
connectedtotheradiobeforetransmitting
properlymounted
locatedwhereitwillbeawayfrompeople
locatedatleast1.5metres(5feet)fromtheradio’s
mainunit

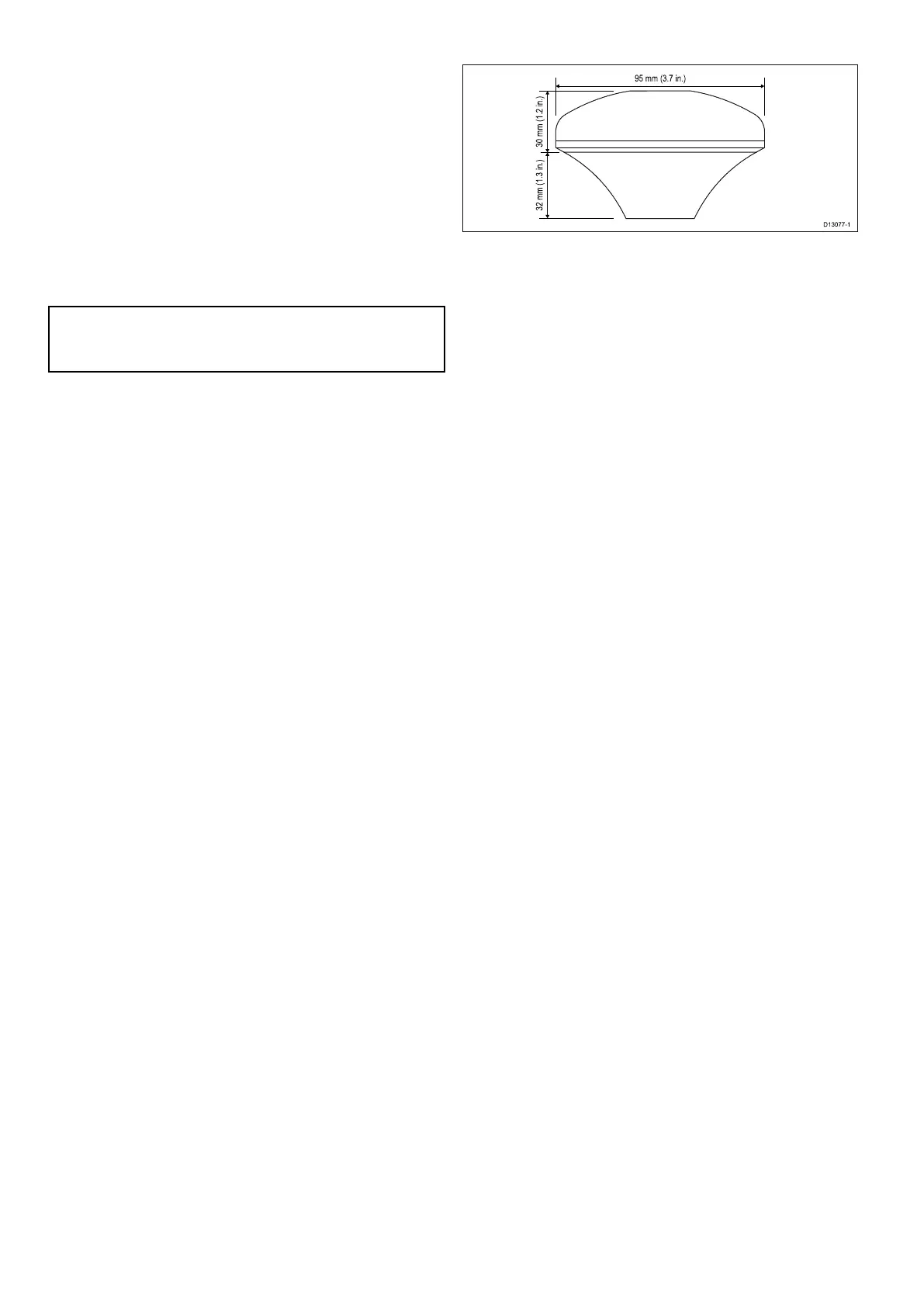

3.6Productdimensions
95 mm (3.7 in.)
30 mm (1.2 in.)32 mm (1.3 in.)
D13077-1
