Raymarine HYPERVISION HV-100 User Manual

3.4Mounting
T
ransducerassembly

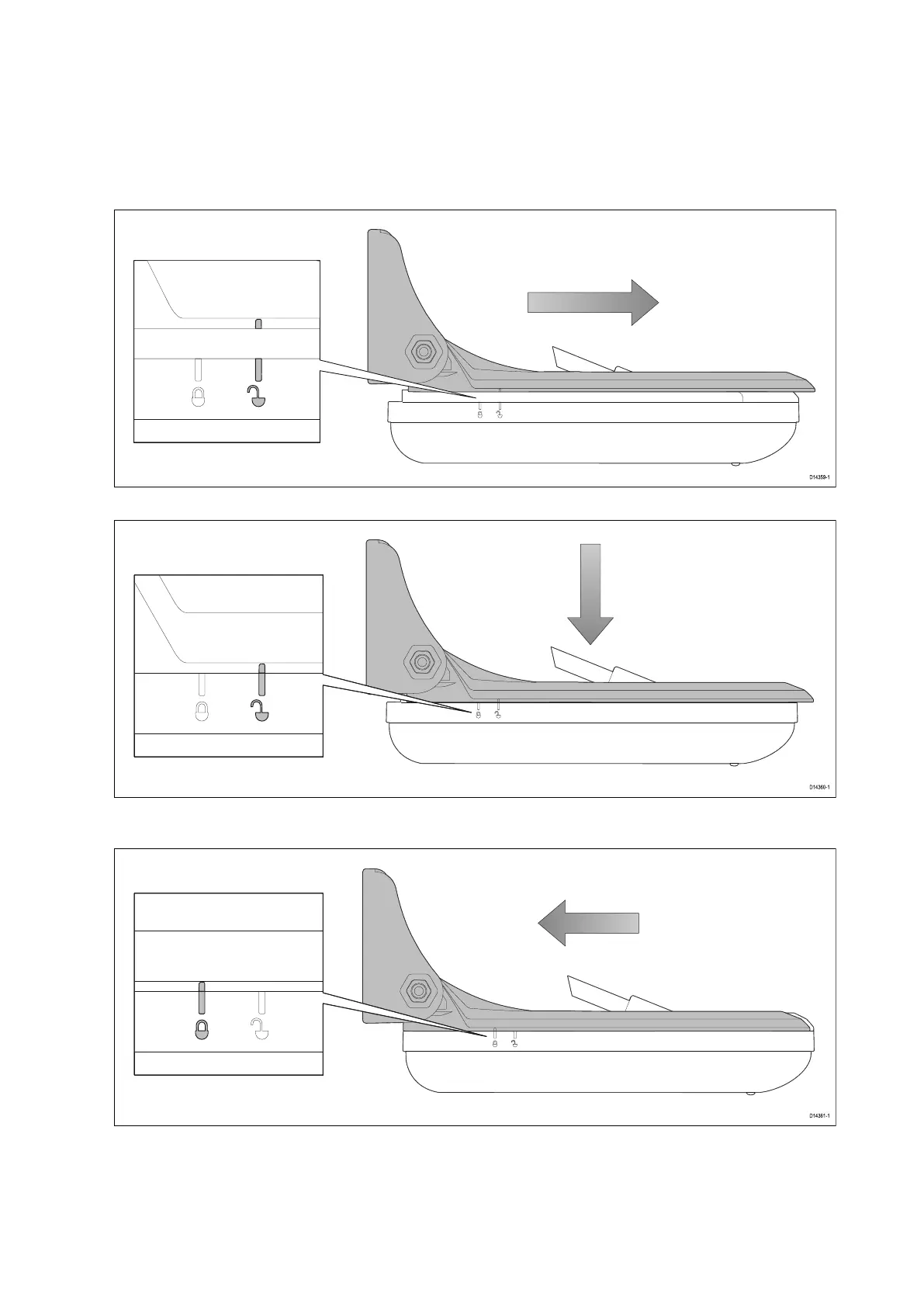

FollowthestepsbelowtoassemblethetransducerreadyforattachingtotheTransombracket.
1.Slidethehangerbracketoverthetopofthetransduceruntilthenotchinthesideofthebracket
hangeralignswiththeunlockedsymbolonthesideofthetransducer.
2.Allowthehangerbrack ettomovedownintotheslotsonthetopofthetransducer.
3.Slidethehangerbrack etintheoppositedirectionfromstep1,sothatthenotchinthesideofthe
brackethangeralignswiththelockedsymbolonthesideofthetransducer.
4.Securethehangerbrack ettothetransducer,usinga4mmHexwrench(Allenkey)andthe
suppliedM5hexboltandwasher.
22
