8
Drive dimensions

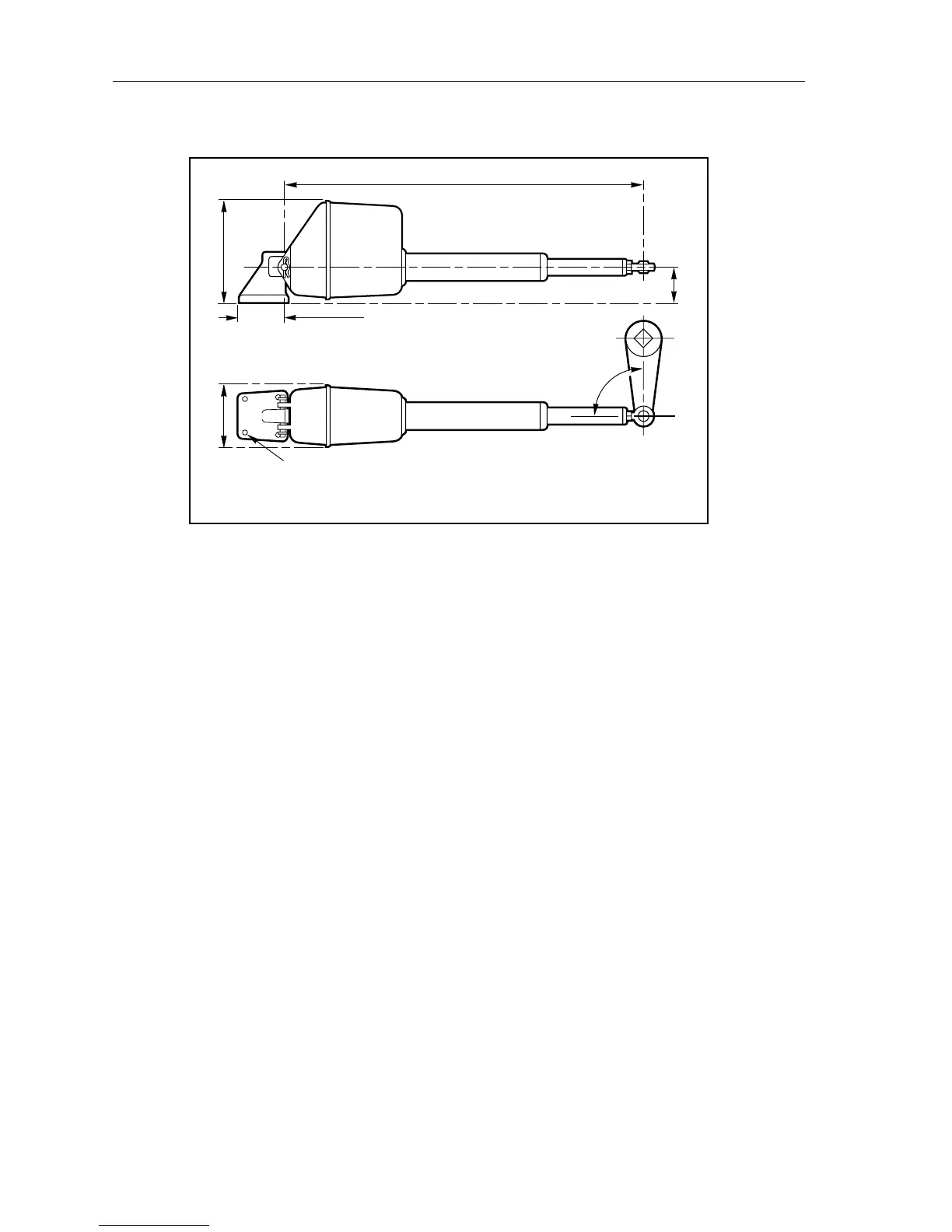

Figure 2: Linear drive dimensions
Installation instructions
Parts required
To install this drive you will need:
• Parts supplied:
• linear drive
• mounting foot assembly, consisting of: foot, pivot pin, washer (x2), R-clip (x2)
• tiller pin assembly (see
Figure 6
) consisting of: tiller pin, R-clip, top washer, lock
washer, nut (
1
/
2
inch UNC nylock)
• Additional parts:
• suitable securing bolts and lock nuts/lock washers (see
page 13
)
• suitable cable and electrical connectors for the drive motor and clutch (see
page 15
)
Note:
Make sure you have obtained these additional parts before you start installation.
90º
D5081-1
A (midstroke)
4 fixing holes suitable
for 10 mm (0.4 in) bolts
79 mm (3.1 in)
114 mm (4.5 in)
197 mm (7.8 in)
50 mm (2 in)
Drive Dimension 'A'
Type 1 700 mm (27.5 in)
Type 2 (short) 700 mm (27.5 in)
Type 2 (long) 850 mm (33.5 in)
