Page 12
IMPORTANT
Configuration Note:
If your System Control Module is supplied with a single Field Wiring
Teminal Strip use "Alternate" wiring. (See page 36-38)

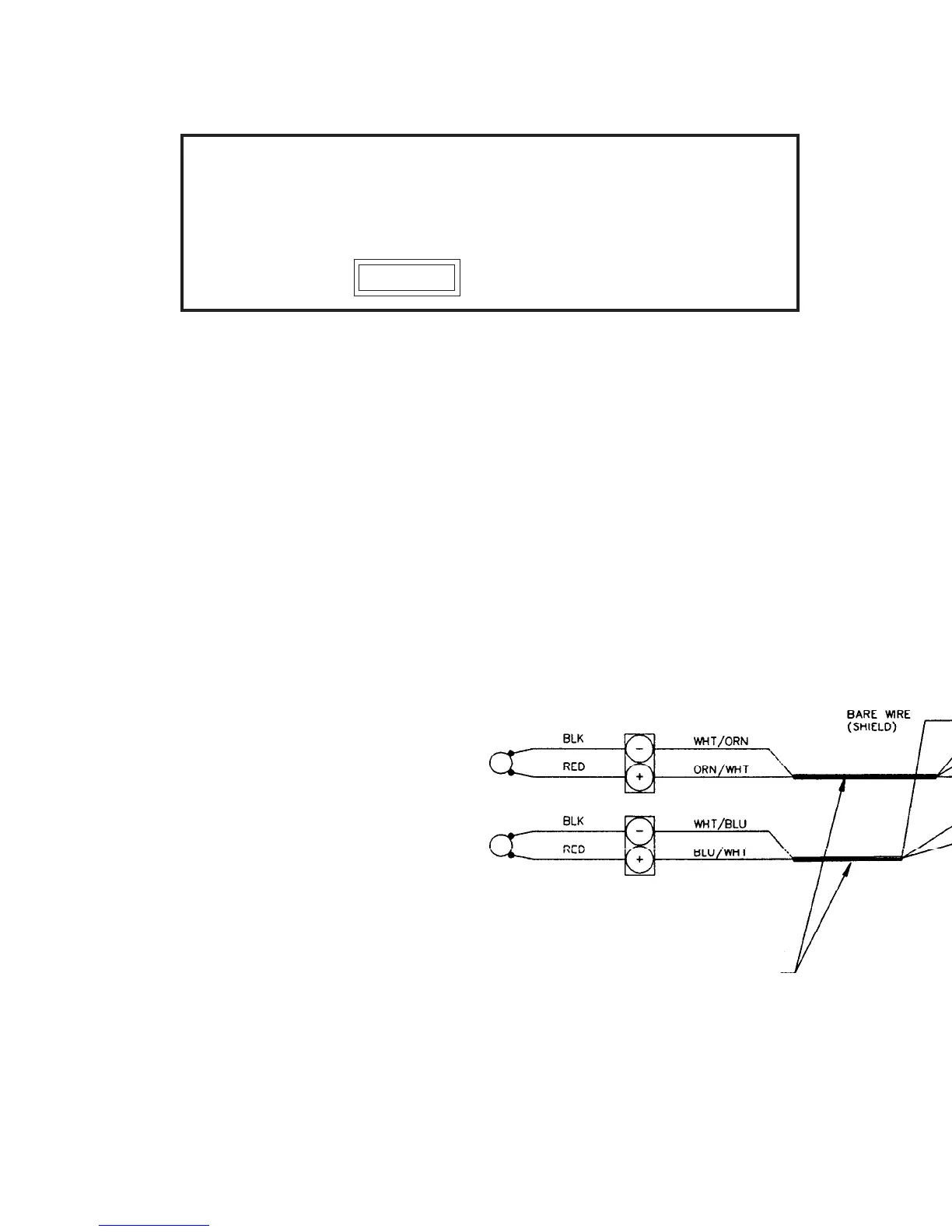

WIRING - AIR AND WATER SENSORS
TO THE SYSTEM CONTROL MODULE
WATER
SENSOR
OUTDOOR
SENSOR
SYSTEM CONTROL
TERMINAL TB 2
BELDEN #8132
OR BELDEN #9842
NOTE: Tighten terminal strip
clamping screws 20 lbs - In
(2.26N.m) Breakage from over
torquing is not covered under
warranty.
Use copper conductors only.
For supply connections use
wires sized on the basis of 60°C
Ampacity and rated Min. 90°C
(194°F).
To Next Page
