INSTALLATION AND MOUNTING
The System Control module should be mounted on a permanent base not subject to
vibrations, moisture or dust. It should be mounted with the display screen at a convenient
height for reading and for access to the alarm silence button located on the top of the cabinet.

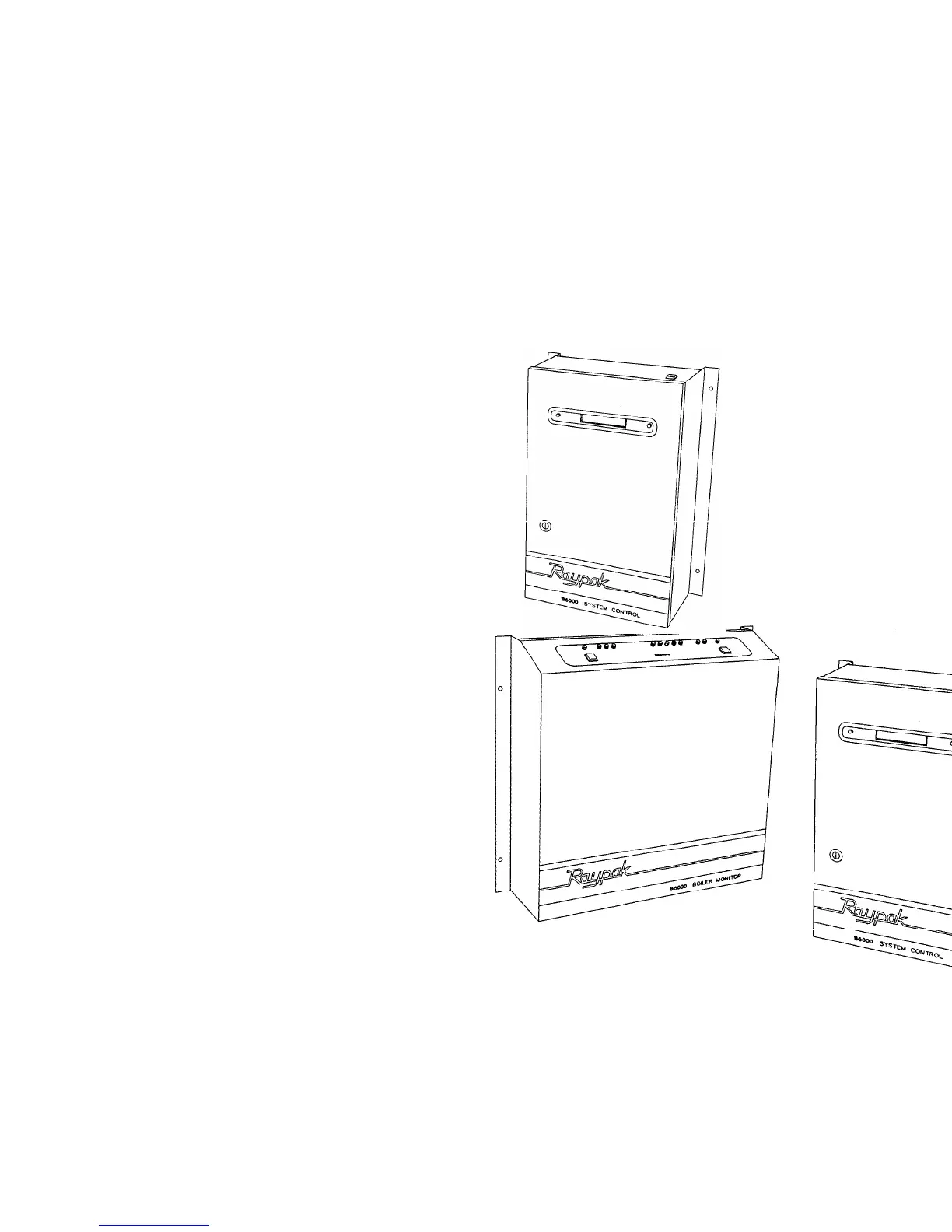

Dimensions & Weight
Boiler Monitor System Control
18-3/4" W 12-1/2" W
5-1/2" D 4-3/4" D
17-1/2" L 15-3/16" L
21-1/4 lbs. 20 lbs.
MECHANICAL INSTALLATION
Install the B6000 System Control Module at a convenient place within 2000 feet of the
boiler(s). The B6000 System Control Module must be mounted vertically with conduit holes
facing downward. Conduit holes are provided to accommodate standard conduit fittings.
Additional or larger conduit fittings that may be required should be located on the bottom of
the module.
Mount the B6000 System Control with 3/8" or 1/4" hardware in four (4) places.
A minimum of six (6) inches clearance on all sides is required and a minimum of eighteen
(18) inches clearance from the front is required for service access. The hinged side of the
box is to the right and the clearance (minimum 3" from bolt hole on the right side) should be
sufficient to open the cover.
