52 Chapter 6
Additional Information

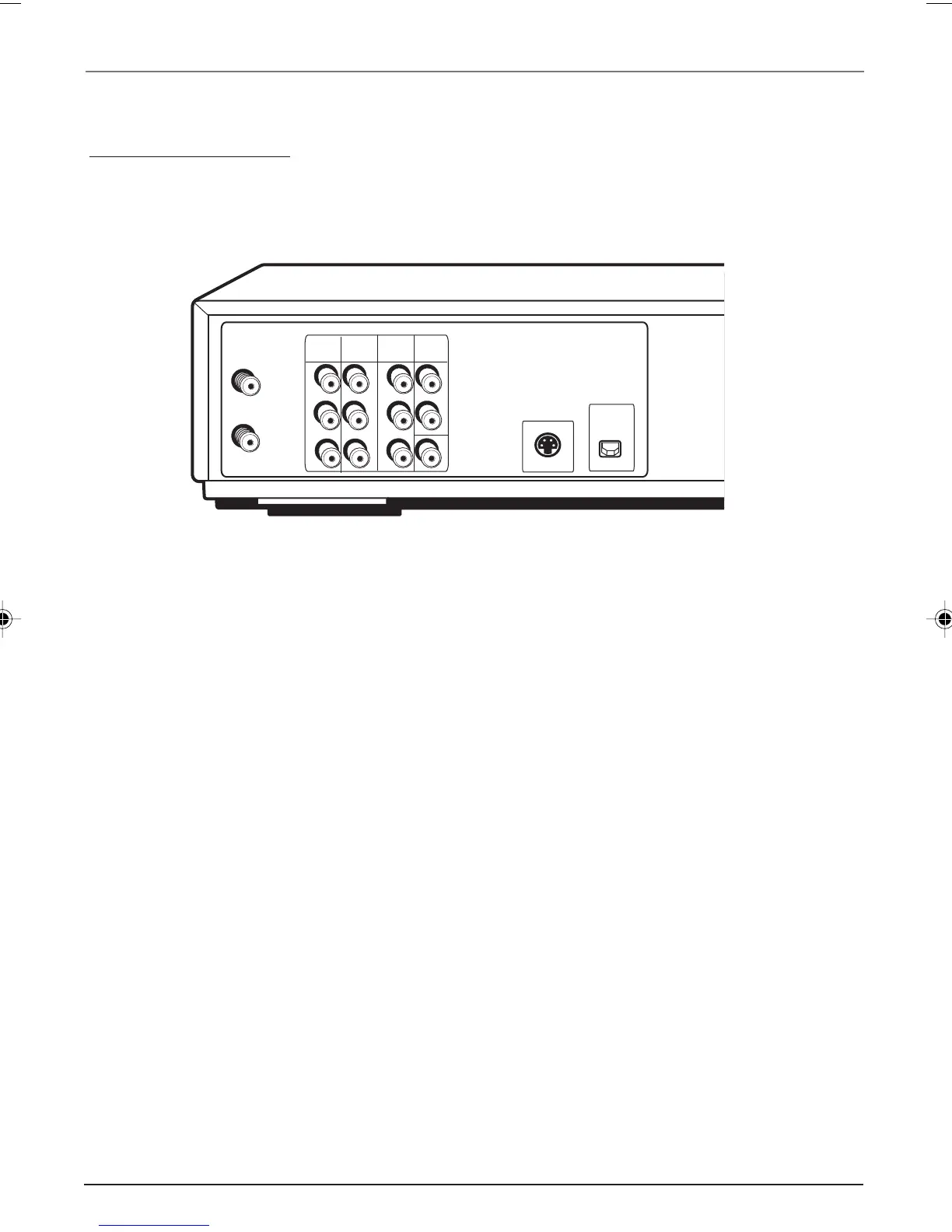

Back of the DVD/VCR
When connecting, make sure you connect Output jacks to Input jacks, Video to Video, Right Audio to
Right Audio, etc. A description of each jack follows.
Description of Jacks (from left to right)
ANT. IN (Antenna In) – Use this jack to connect an RF coaxial cable from an off-air antenna, cable
box, or cable outlet.
RF OUT – Use this jack to connect to the Cable/Antenna jack on your TV.
VCR IN (AUDIO/VIDEO) – If you are using color-coded red, yellow and white RCA cables, connect
these jacks to a video input component, such as a video game system or camcorder.
DVD/VCR OUT (AUDIO/VIDEO) – If you are using color-coded red, yellow and white RCA cables,
connect these jacks to the corresponding jacks on your TV.
COMPONENT/ PROGRESSIVE SCAN VIDEO OUT (Y, Pb, Pr) – Use these jacks to connect to a TV with
component video input jacks. Unlike a single video input, component video maintains the video
signal as three separate signals through these three jacks. This connection provides optimum quality.
To ensure maximum picture quality, use three video-grade cables for the Y, Pb, and Pr connections.
It is essential to match the color-coded connectors with a compatible TV. This connection is only for
DVD signal. For the VCR signal, you must also connect the standard video cable.
AUDIO OUT— Use these jacks to connect your DVD/VCR to an audio/video receiver.
S-VIDEO OUT – If your TV has an S-VIDEO jack, connect an S-Video cable to the DVD/VCR’s S-
VIDEO jack and to the TV’s S-Video jack to achieve better picture quality than using the VIDEO jack.
S-Video only carries the picture, so you must connect the audio cables, as well. This connection is
only for DVD signal. For the VCR signal, you must also connect the standard video cable.
DIGITAL AUDIO OUT (OPTICAL and COAXIAL)
Use one of these jacks to connect your DVD/VCR to a receiver or decoder with Dolby Digital or DTS
capability. Some receivers have either the COAXIAL or OPTICAL type of Digital Audio Input jack, and
some have both. Under most conditions, optical and coaxial connections work equally well — the
only difference is the type of cable you connect to the jack.
ANT. IN
RF OUT
OPTICAL
S-VIDEO OUT
VCR IN
LINE1
DVD/VCR
OUT
COMPONENT/
PROGESSIVE SCAN
VIDEO OUT
AUDIO
OUT
DIGITAL
AUDIO OUT
16356770.06 Additional 6/8/04, 4:38 PM52
