Chapter 1: Connections and Setup
20

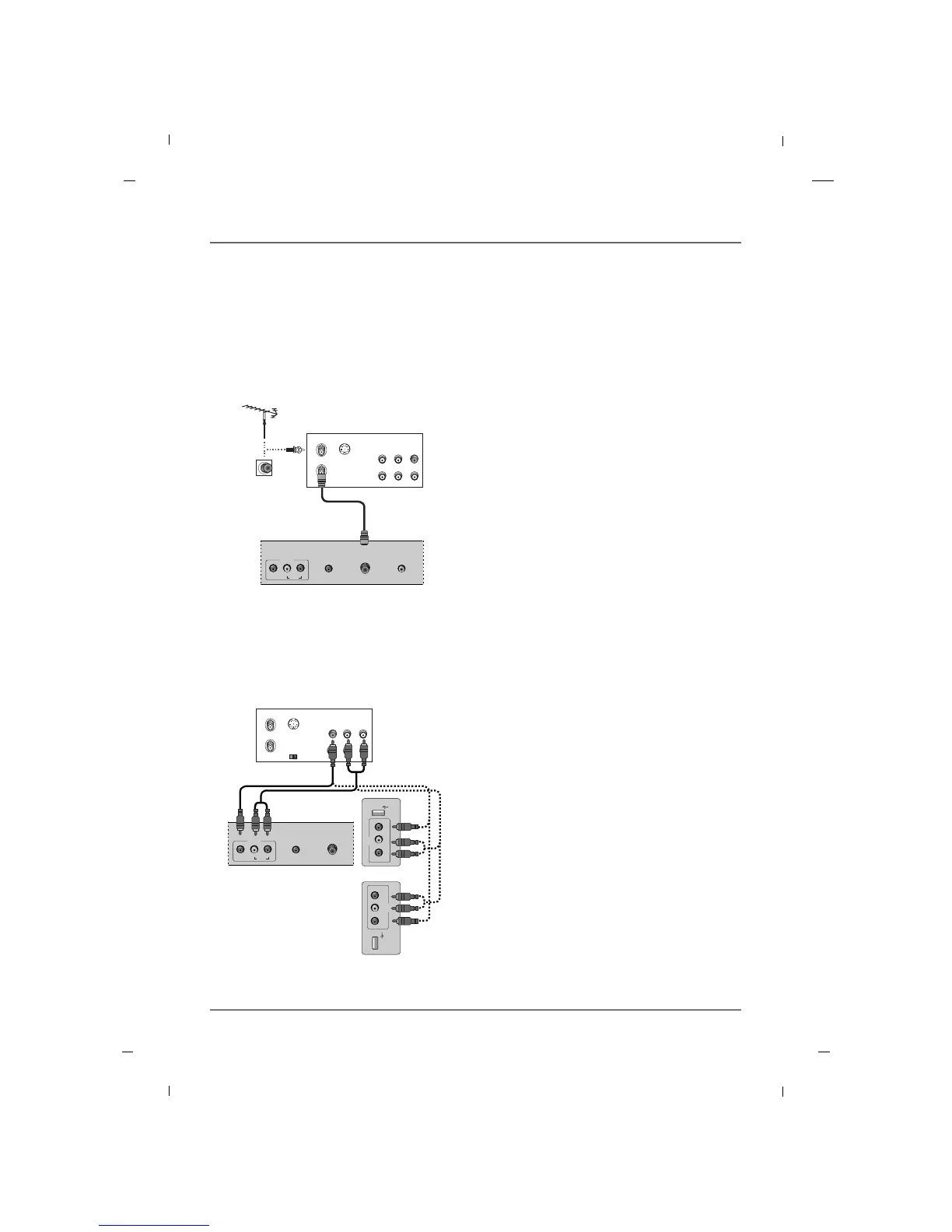

VCR Connection - 26/32/42 inches
AA When connecting with an antenna
1. Connect the Antenna out socket of the VCR to
the Antenna input socket on the TV.
2. Power up the VCR and Television.
3. Tune the TV to the channel output by the VCR.
(typically ch.3 or 4.)
4. Refer to the VCR manual for operating instruc-
tions.
VCR
Rear panel of the set
AA When connecting with an RCA cable
1. Connect the AUDIO/VIDEO jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red)
2. Insert a video tape into the VCR and press PLAY
on the VCR.
3. Select the AV1 or AV2 input source using the
INPUT button on the remote control.
4. Refer to the VCR manual for operating instruc-
tions.
VCR
Rear panel of the set
Side panel of
the set
26/32 inches
42 inch
- To avoid picture noise (interference), leave an adequate distance between the TV and the VCR.
