RCA J32H700 User Manual

Chapter 1: Connections and Setup
26
R - AUDIO - L
AV2
VIDEO
USB IN
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
AV1
AUDIO
L
VIDEO
R
L-AUDIO-RVIDEO
OUT
AV2
VIDEO L - AUDIO - R
USB IN

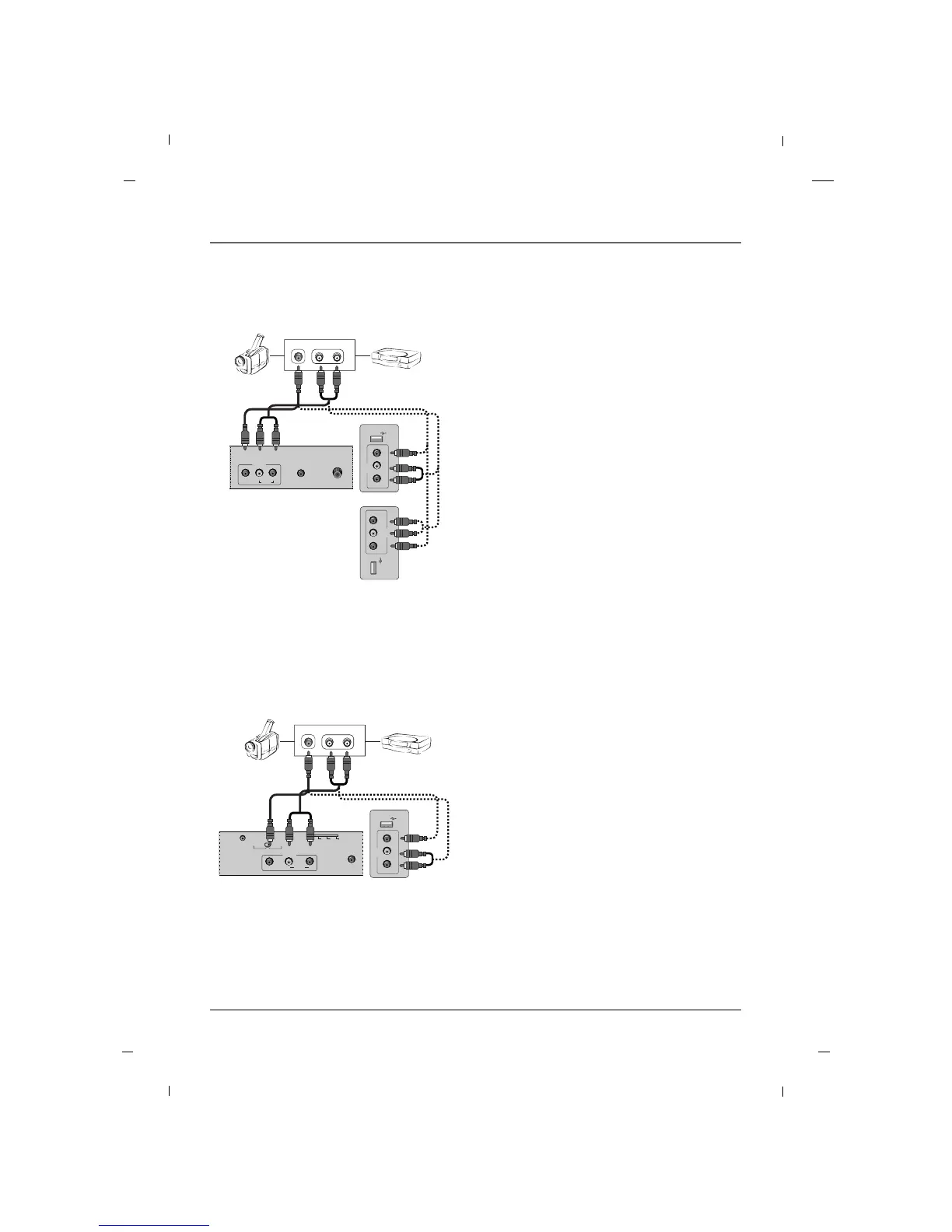

1. Connect the AUDIO/VIDEO jacks between TV and
external equipment. Match the jack colors (Video
= yellow, Audio Left = white, and Audio Right =
red)
2. Select the AV1 or AV2 input source using the
INPUT button on the remote control.
3. Operate the corresponding external equipment.
4. Refer to the external equipment manual for oper-
ating instructions.
Camcorder Video game set
External A/V Source - 26/32/42 inches
AUDIO IN
(RGB/DVI)
SERVICE
SPEAKER
SWITCH
PILLOW
SPEAKER
NORMAL
SPEAKER
AV1
AUDIO
L
VIDEO
R
ZEN PLS OFF RCA
VIDEO
L - AUDIO - R
AV2
USB IN
L-AUDIO-RVIDEO
OUT
1. Connect the AUDIO/VIDEO jacks between TV and
external equipment. Match the jack colors (Video
= yellow, Audio Left = white, and Audio Right =
red)
2. Select the AV1 or AV2 input source using the
INPUT button on the remote control.
3. Operate the corresponding external equipment.
4. Refer to the external equipment manual for oper-
ating instructions.
Camcorder Video game set
Rear panel of the set
External A/V Source - 22 inch
Side panel of the set
Chapter 1
Rear panel of the set
Side panel of
the set
26/32 inches
42 inch
