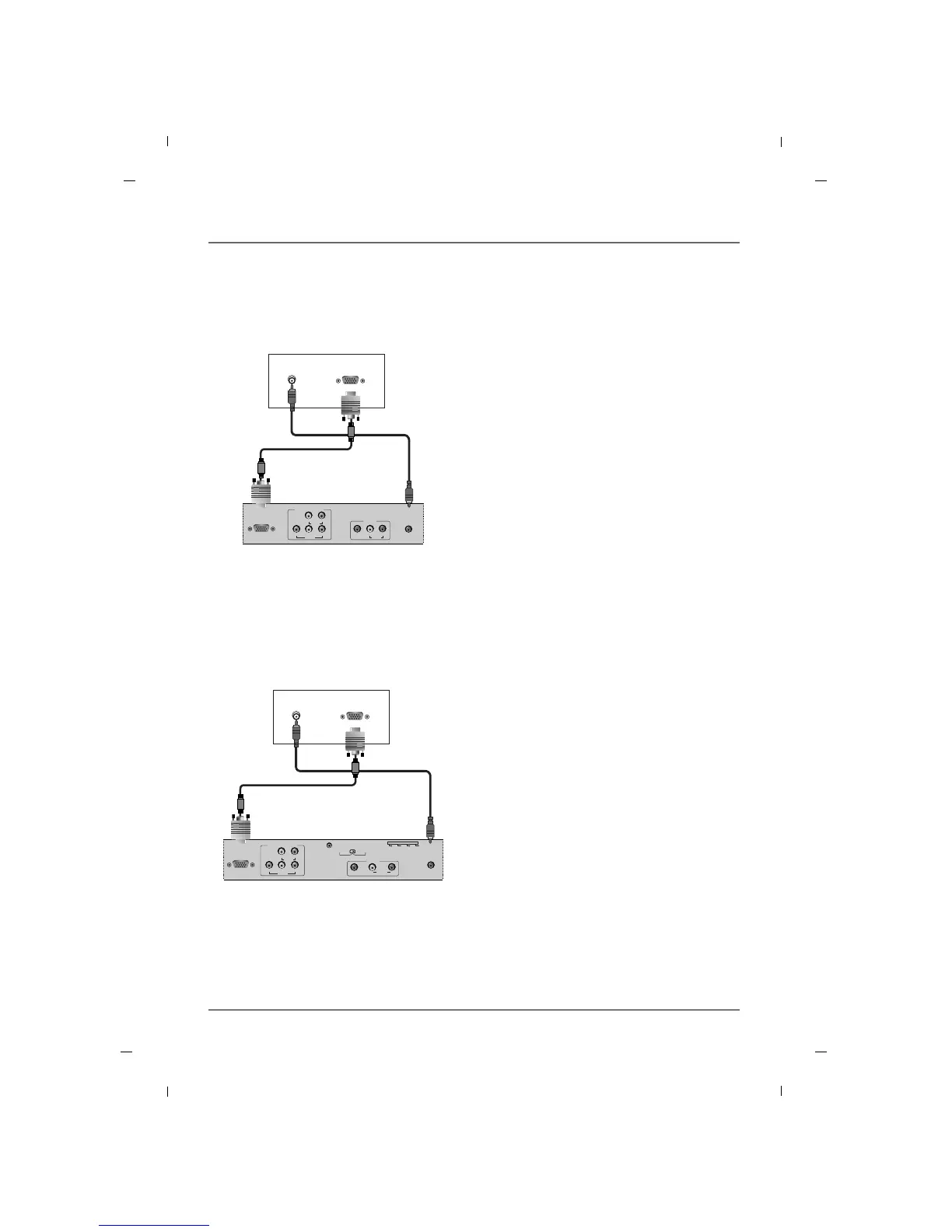

Chapter 1: Connections and Setup
29Chapter 1
AA When connecting with a D-Sub 15 pin cable - 26/32/42 inches
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
VIDEO
YPbPr
LR
COMPONENT IN
AUDIO
AV1
AUDIO
L
VIDEO
R
AUDIO OUT PC OUTPUT
1. Connect the RGB output of the PC to the RGB IN
(PC) jack on the set.
2. Connect the PC Audio Output to the AUDIO IN
(RGB/DVI) jack on the TV using a male-to-male
3.5mm mini jack.
3. Turn on both the PC and TV.
4. Select the VGA input source on your TV by press-
ing either the INPUT buttons on the remote con-
trol.
PC
Rear panel of the set
PC Connection
AA When connecting with a D-Sub 15 pin cable - 22 inch
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
VIDEO
YPb Pr
LR
COMPONENT IN
AUDIO
SERVICE
SPEAKER
SWITCH
PILLOW
SPEAKER
NORMAL
SPEAKER
AV1
AUDIO
L
VIDEO
R
ZEN PLS OFF RCA
AUDIO OUT PC OUTPUT
1. Connect the RGB output of the PC to the RGB IN
(PC) jack on the set.
2. Connect the PC Audio Output to the AUDIO IN
(RGB/DVI) jack on the TV using a male-to-male
3.5mm mini jack.
3. Turn on both the PC and TV.
4. Select the VGA input source on your TV by press-
ing either the INPUT buttons on the remote con-
trol.
PC
Rear panel of the set
