RCA J32H700 User Manual

Chapter 1: Connections and Setup
22

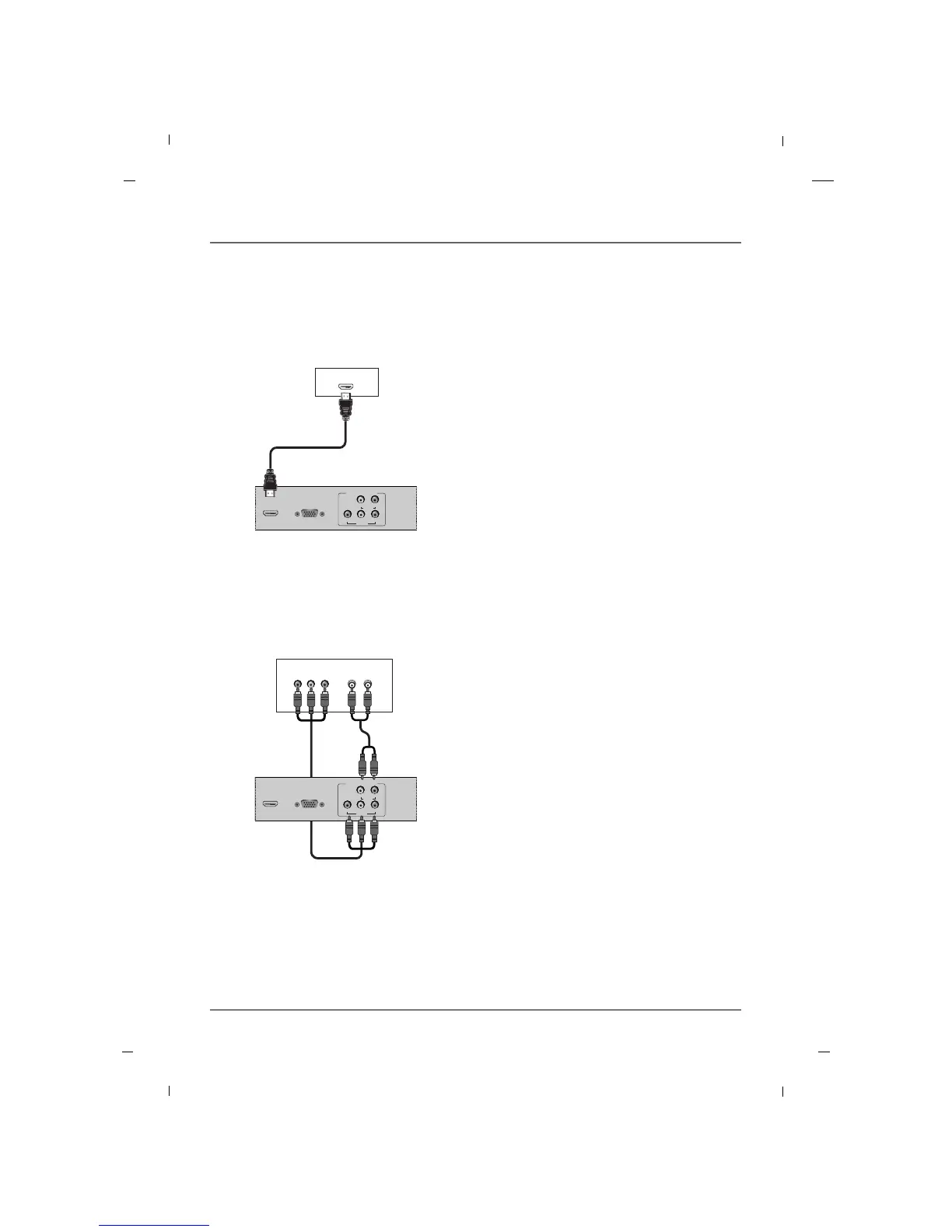

AA When connecting with a Component cable
HDMI/DVI
IN
RGB IN
(PC)
VIDEO
YPbPr
LR
COMPONENT IN
AUDIO
(L) AUDIO (R)
Y
Pb Pr
1. Connect the video outputs (Y, PB, PR) of the DVD
to the COMPONENT VIDEO(Y, Pb, Pr) jacks on
the set.
2. Connect the audio outputs of the DVD to the
COMPONENT AUDIO L, R jacks on the set.
3. Turn on the DVD player, insert a DVD.
4. Select YPbPr source using the INPUT button on
the remote control.
5. Refer to the DVD player's manual for operating
instructions.
DVD
Rear panel of the set
DVD Connection
AA When connecting with a HDMI cable
HDMI/DVI
IN
RGB IN
(PC)
VIDEO
YPbPr
LR
COMPONENT IN
AUDIO
HDMI-DVD OUTPUT
1. Connect the HDMI output of the DVD to the
HDMI/DVI IN jack on the set.
2. Select HDMI input source using the INPUT button
on the remote control.
3. Refer to the DVD player's manual for operating
instructions.
DVD
Rear panel of the set
