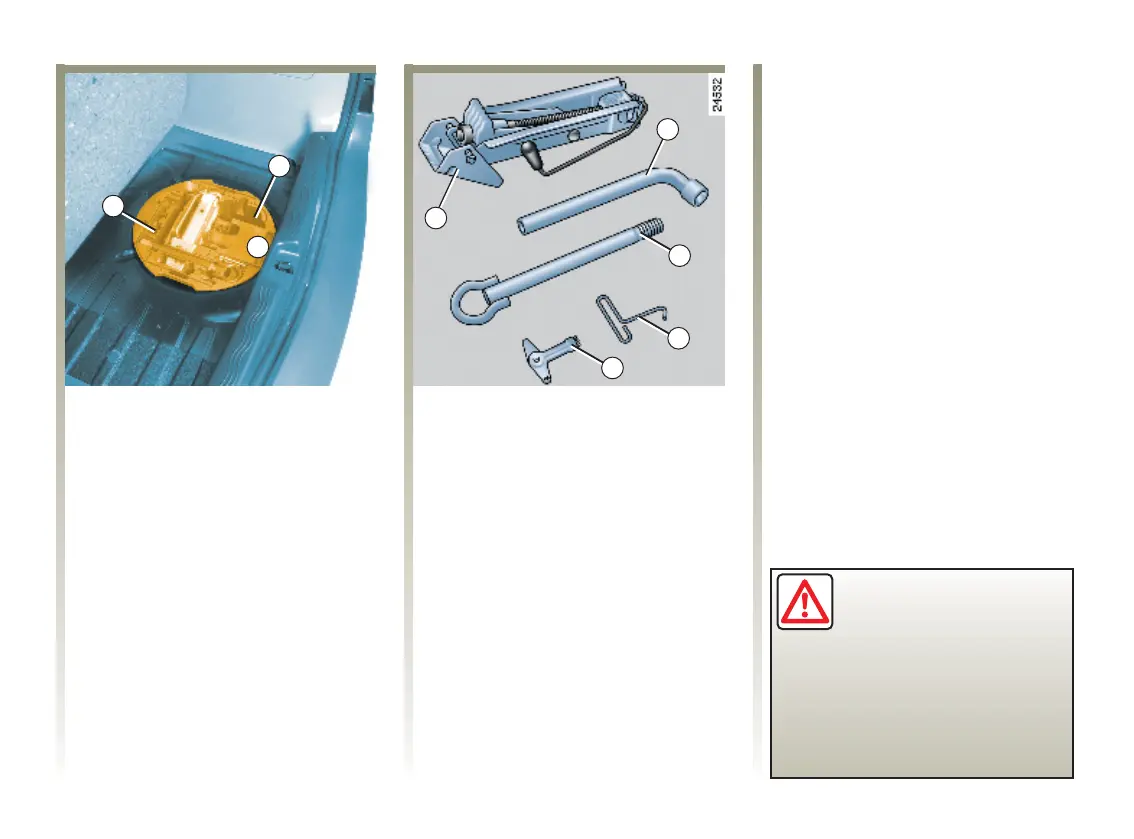

TOOL KIT
The tool kit A is located in the
emergency spare wheel winch tray.
To access the tools, lift the luggage
compartment carpet, lift the cover
and remove it.
Take out the tool kit, lifting it at both
ends.
To return it, proceed in the reverse
order to removal.
Storage compartments 1
This is for storing a box of bulbs.
Storage compartments 2
This is for storing a lock nut.
Wheelbrace 3
This is used to tighten or release the
wheel bolts.
Towing ring 4
Refer to the information on towing
in Section 5.
Hubcap spanner 5 or 6
It is used to remove the hubcaps.
Jack 7
Remove jack 7.
When replacing the jack, fold it up
completely and replace it in its
location.
The jack is designed for
wheel changing purposes
only. Under no
circumstances should it be
used to carry out a repair
underneath the vehicle.
