5.14

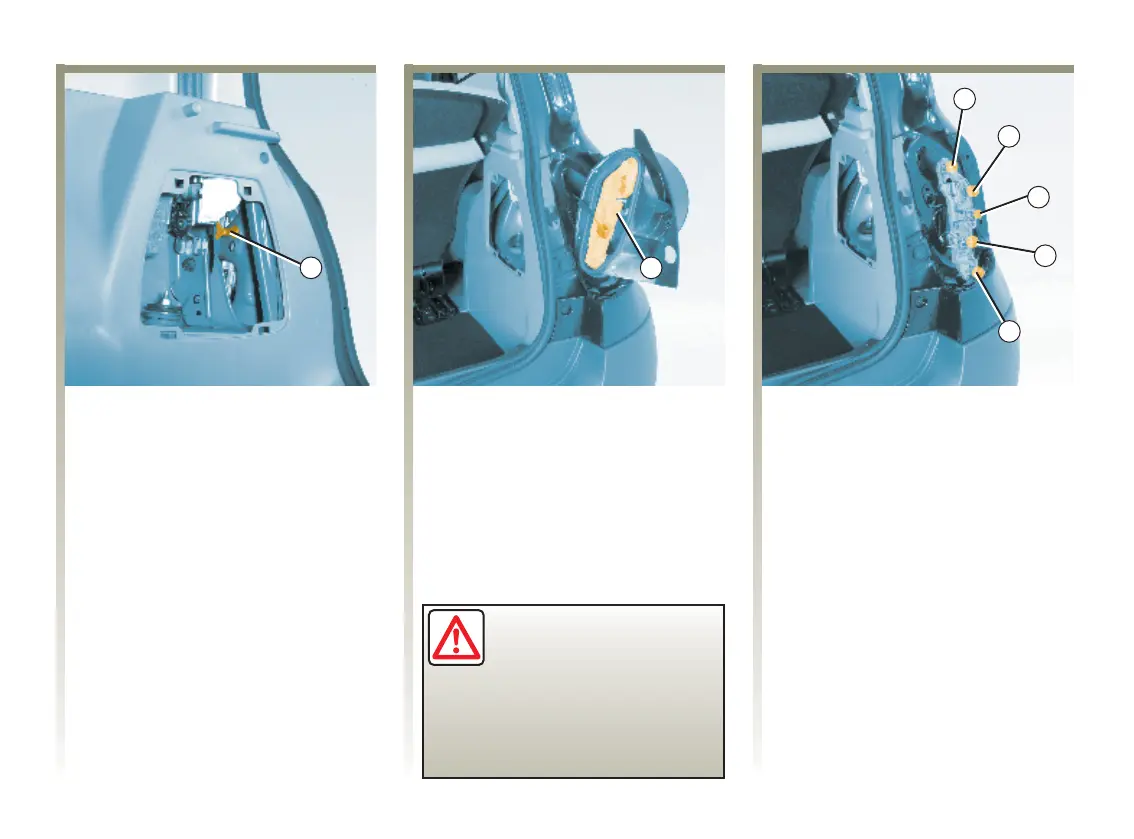

REAR LIGHTS: replacing bulbs
Direction indicators/brake and
side lights
After opening the tailgate, open the
flap of the light concerned.
Undo bolt 1 to remove the light.
Release the rear light assembly from
outside the vehicle by pulling it
towards the rear.
Unclip the bulb holder 2 to access
the bulbs.
Thebulbsareunder
pressure and can break
when replaced.
Risk of injury.
3 Direction indicator lights
P21 W bulb.
4 Side and brake lights
P21/5 W bulb.
5 Side light
R5 W bulb.
6 Reversing light
P21 W bulb.
7 Rear fog light
P21 W bulb.
Note: both lens units are fitted
with a bulb, but only the bulb on
the driver's side works.
