Renesas RA Microcontrollers EK-RA6M2 v1 – User's Manual
R20UT4578EU0102 Rev.1.02 Page 17 of 32
Jul.29.20
Table 7. JTAG Interface Conflicts
Programming Interface
Conflicting Interface
Port
Use
Interface
Use
P108
TMS/J-Link SWDIO
SPI
SSLB0_B fixed function, J1-13
P109
TDO/J-Link SWO
SPI
MOSIB_B fixed function, J1-7
P110
TDI
SPI
MISOB_B fixed function, J1-9
P300
SWCLK
GPT
GTIOC0A_A fixed function, J1-31
5.4.4 LEDs
Two LEDs are provided on the EK-RA6M2 board. U1 is the Main MCU, and directly controls LED1. See
Figure 8 for LED1 location, Figure 11 for LED2 location, and Figure 10 for LED2 circuit. U2 is the J-Link
MCU, and it controls the red LED in LED2.

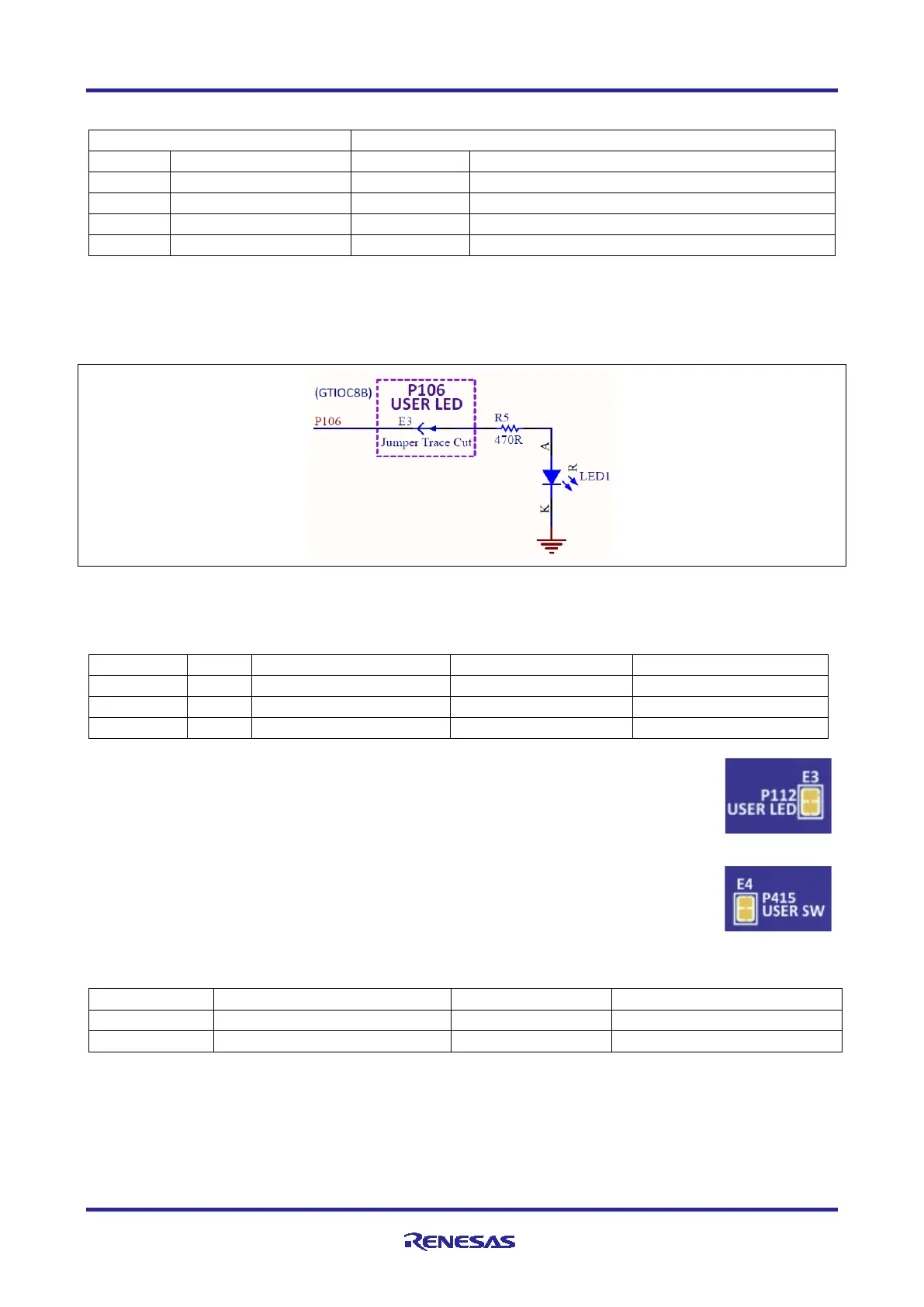

Figure 16. LED1 Control Circuit
The behavior of the LEDs is described in the following table.
Table 8. LED Functions on the Evaluation Kit
Designator
Color
Function
MCU Control Port
MCU Pin
LED1
Red
User LED
U1 P106
U1-102
LED2
Red
J-Link Indicator
JLED (U2 P103)
U2-45
LED2
Green
3.3 V Power Available
+3V3
N.A.
To disconnect the User LED from the MCU signal P106, the copper jumper E3 must be
open.
5.4.5 Switches
Two miniature, momentary, mechanical push-button type SMT switches are mounted on
the EK-RA6M2 board. Pressing the RESET Switch generates a reset signal to restart the
Main MCU.
To disconnect the User Switch from the MCU signal P105/IRQ0, copper jumper E4 must
be open.
Table 9. Switches on the Evaluation Kit
Designator
Function
MCU Control Port
MCU Pin
S1
User Switch
U1 P105/IRQ0
U1-103
S2
MCU Reset Switch
RESET#
U1-55
