RSKRX111 3. Tutorial Project Workspace
R20UT2194EG0100 Rev. 1.00 Page 12 of 27
Jul 3, 2013
3.3 Configuring the Debug Tool (E1)
Note: The Tutorial sample project’s settings are pre-configured. This section is intended to familiarise the user
with the debug tool settings for when they create their own project.

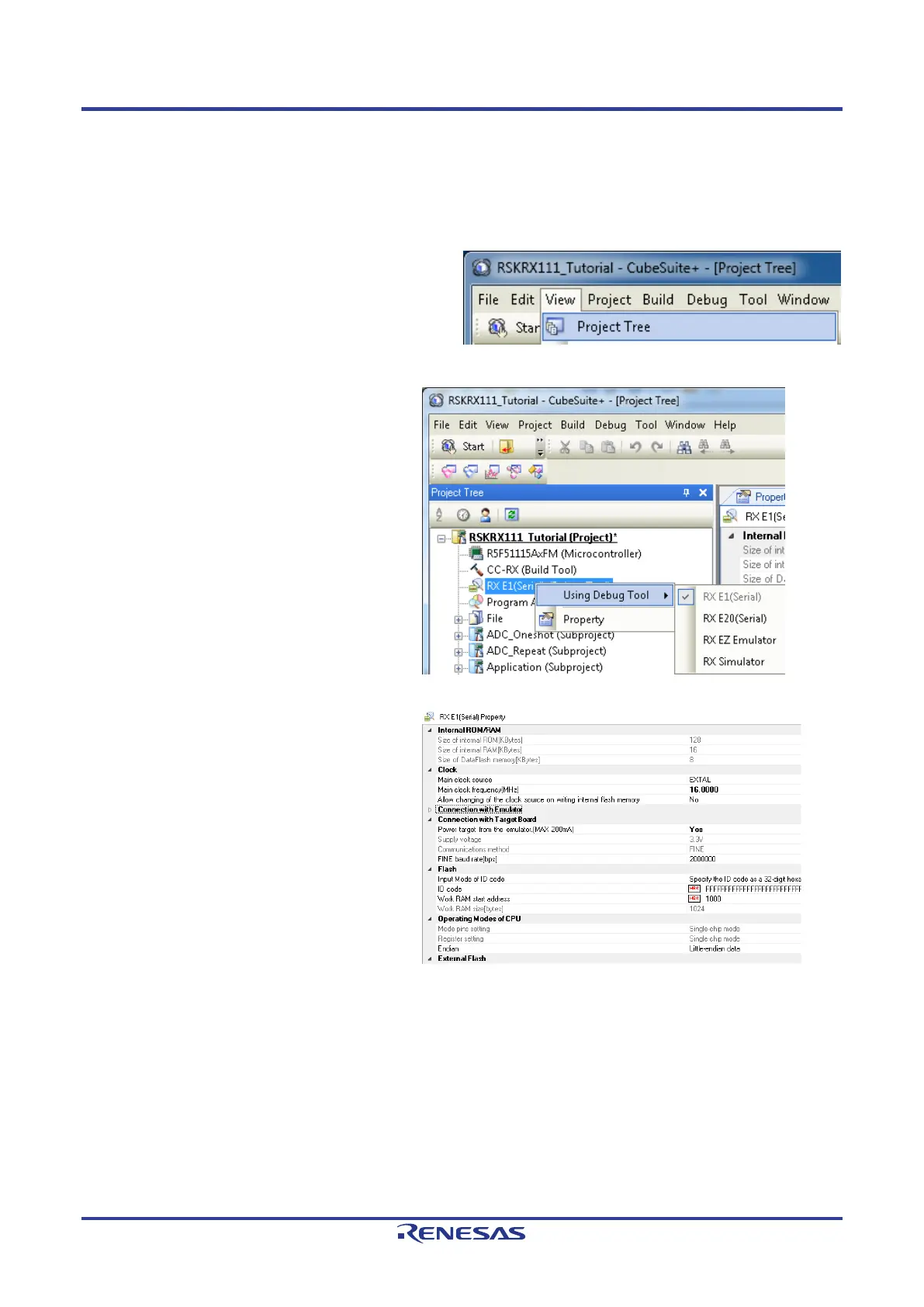

• The Project Tree will be displayed on the
left-hand pane of CubeSuite+.
• This can also be invoked from the menu
bar [View > Project Tree].
• The opposite screen-shot indicates that
the selected Debug Tool is the E1.
• Right click on RX E1(Serial) (DebugTool).
• Click on Property.
• View the Connect Settings tab.
• Verify that the settings match the opposite
screen-shot. In particular for the RSK the
Main Clock Source should be EXTAL, the
Main Clock Frequency should be 16MHz
and supply voltage should be 3.3V
Note: To supply external power to the target
board, set the ‘Power target from emulator.
(MAX 200mA)’ entry to ‘No’.
