32
The PCL inverter charger series have functions to automatically start and stop a generator for
supplementing charge. The Auto Generator feature starts the Generator with the use of
Normally Closed (NC) contacts of the relay that “opens” when the battery voltage drops to the
programmed value of Program 96, Low Battery Voltage Set-point. The Normally Open (NO)
relay “closes”, and the auto generator start commences the generator to start charging the
battery bank. When the battery is recharged and its voltage rises to the programmed value of
Program 95, High Battery Voltage Set-point The NC (closes) contacts and NO (open) contacts
of relay reset and the Generator will stop / shut down the Generator automatically. The PCL unit
will then transfer back to “Inverting Mode”.
95 Battery High Voltage for Dry Contacts
Refer to Program 5 for modifying this setting.
94 Selection of Battery Type Custom

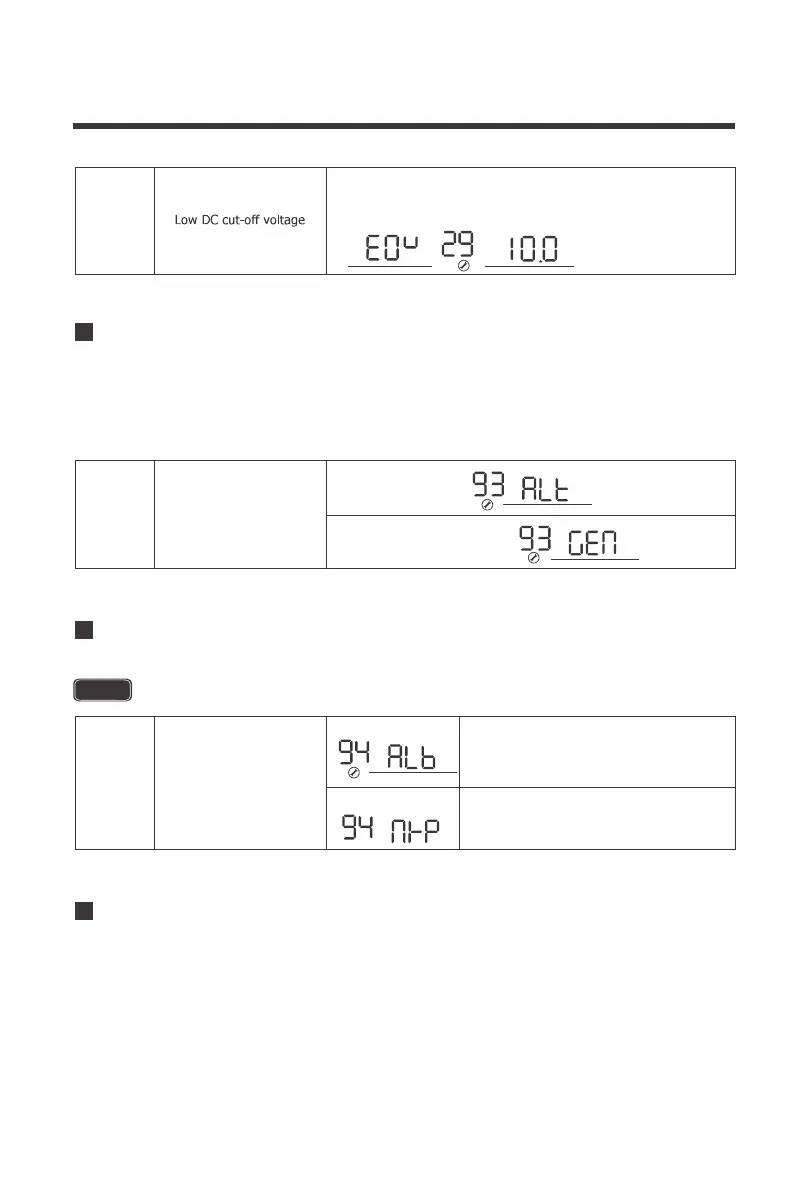

The factory default frequency for inverters is 60Hz. Normally, manufacturers build electrical
devices for a certain amount of Current, Voltage and Hertz (Cycles) which is mentioned on the
name plate. The Current is dependent of the Voltage and the Hertz supplied to an electric motor
or appliance. This program allows you to set the frequency range of the AC input source.
Special cases might require a wider frequency range than normal Utility and Generator outputs.
93 Input Frequency Range
93
This setting will not be modifiable if users choose a pre-set battery voltage.
NOTE
Special 40-70HZ
General 50HZ 45-55HZ
/ 60HZ 55-65HZ
Frequency Range
94
29
The default setting is 10.0V. Setting range is from 10.0V
to 12.0V with increments of 0.1V. This setting must be at
least 0.5V lower than setting #98 Low Battery Alarm.
V
BATT
Lithium battery
If selected, battery charge voltage
and battery low open charging
can be set up in program 26,27
Other battery
If selected ,battery charge voltage
can be set up in program 26,27
Selection of battery type
