Revox A77 Service Manual

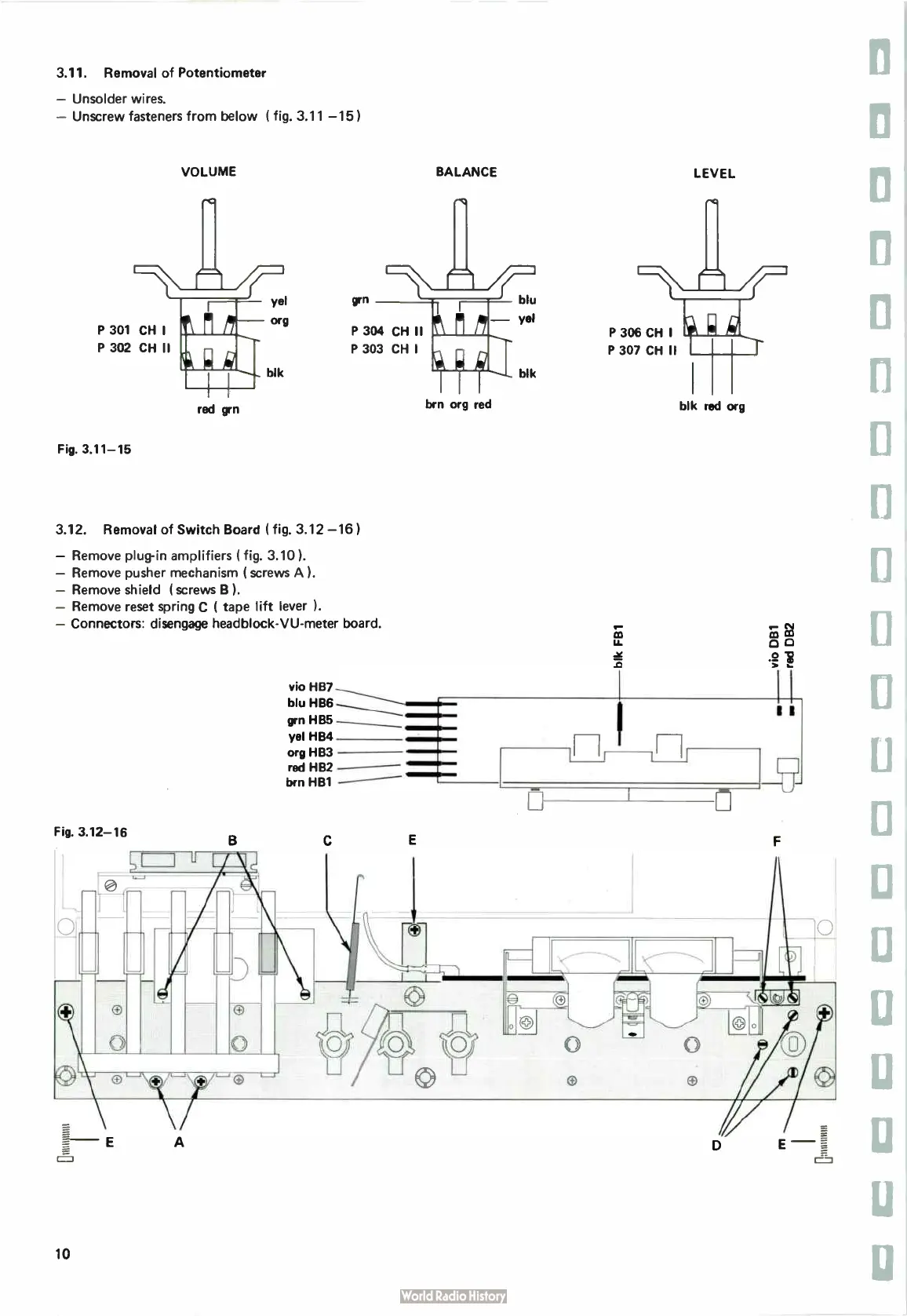

3.11. Removal of Potentiometer
— Unsolder wires.
— Unscrew fasteners from below ( fig. 3.11 — 15 )
VOLUME
P 301 CH I
P 302 CH II
Fig. 3.11-15
red grn
yel
org
blk
grn
P 304 CH Il
P 303 CH I
3.12. Removal of Switch Board ( fig. 3.12 — 16 )
— Remove plug-in amplifiers ( fig. 3.10 ).
— Remove pusher mechanism I screws A).
— Remove shield ( screws B ).
— Remove reset spring C ( tape lift lever ).
— Connectors: disengage headblock-VU-meter board.
vio HB7
blu HB6
gm n HB5
yel HB4
org HB3
red HB2
brn HB1
brn org red
BALANCE
blu
— yel
blk
P 306 CH I
P 307 CH II
u.
LEVEL
blk red org
I
FI
u
u
u
10
