Revox A77 Service Manual

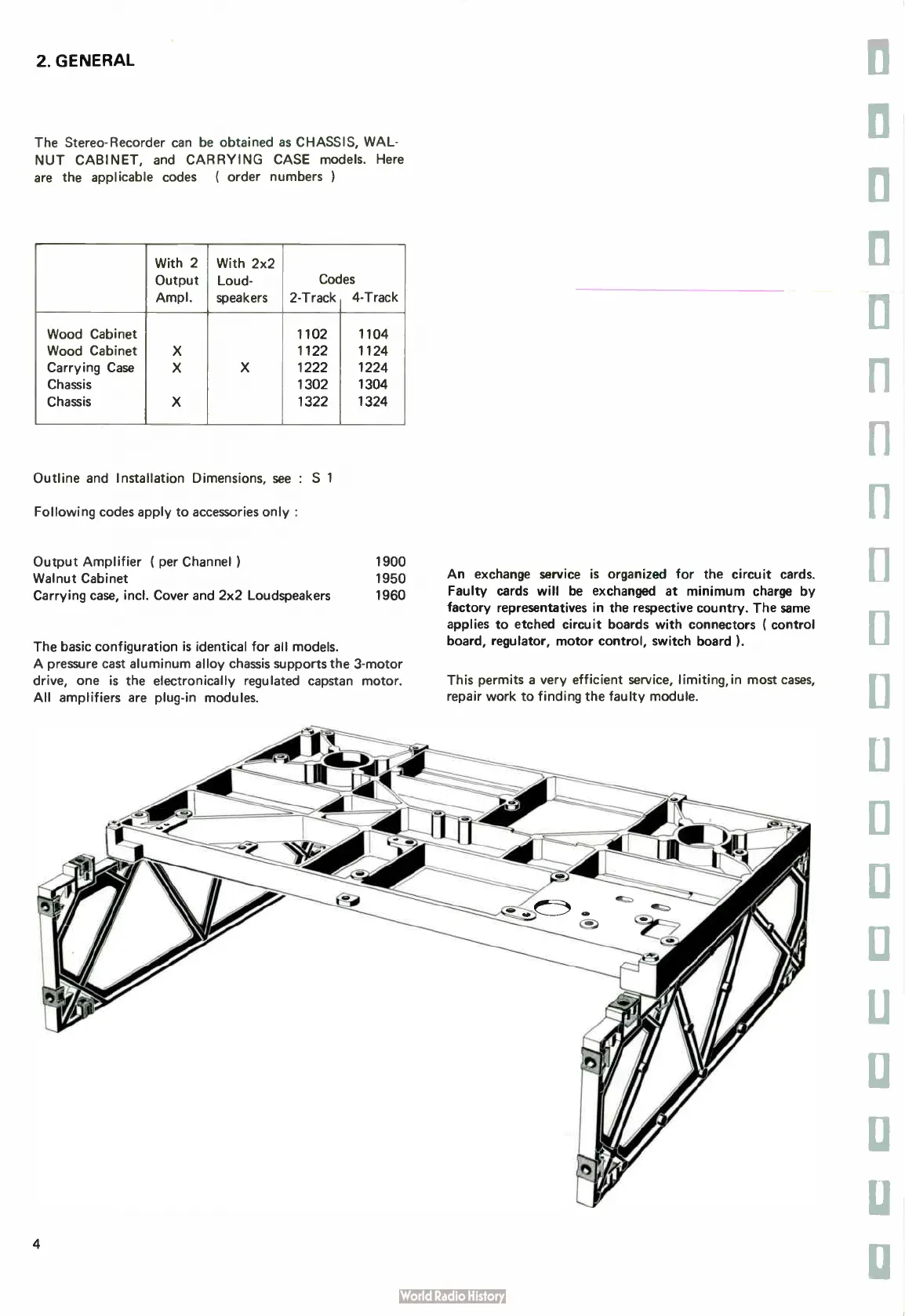

2. GENERAL
1
The Stereo- Recorder can be obtained as CHASSIS, WAL-
NUT CABINET, and CARRYING CASE models. Here
are the applicable codes I order numbers I
With 2 With 2x2
Output
Loud-
Codes
Ampl. speakers
2- Track
4- Track
Wood Cabinet
1102 1104
Wood Cabinet X 1122
1124
Carrying Case
X
X
1222 1224
Chassis 1302 1304
Chassis
X
1322 1324
Outline and Installation Dimensions, see : S 1
Following codes apply to accessories only :
Output Amplifier ( per Channel )
Walnut Cabinet
Carrying case, incl. Cover and 2x2 Loudspeakers
1900
1950
1960
The basic configuration is identical for all models.
A pressure cast aluminum alloy chassis supports the 3- motor
drive, one is the electronically regulated capstan motor.
All amplifiers are plug-in modules.
An exchange service is organized for the circuit cards.
Faulty cards will be exchanged at minimum charge by
factory representatives in the respective country. The same
applies to etched circuit boards with connectors ( control
board, regulator, motor control, switch board ).
This permits a very efficient service, limiting, in most cases,
repair work to finding the faulty module.
u
T
u
u
4
u
