Revox A77 Service Manual

rl
rl
Ej
rl
EJ
Li
ri
u
u
u
Ii
N QQ
CD
E " g
o.
7ci
-
•
QUJ
< <
e- E
0,,
Playback
Head
CH II
-g
Playback
Head
CH I
E
112 3
OUTPUT
Li
N
7
11
yel
AH12
ma

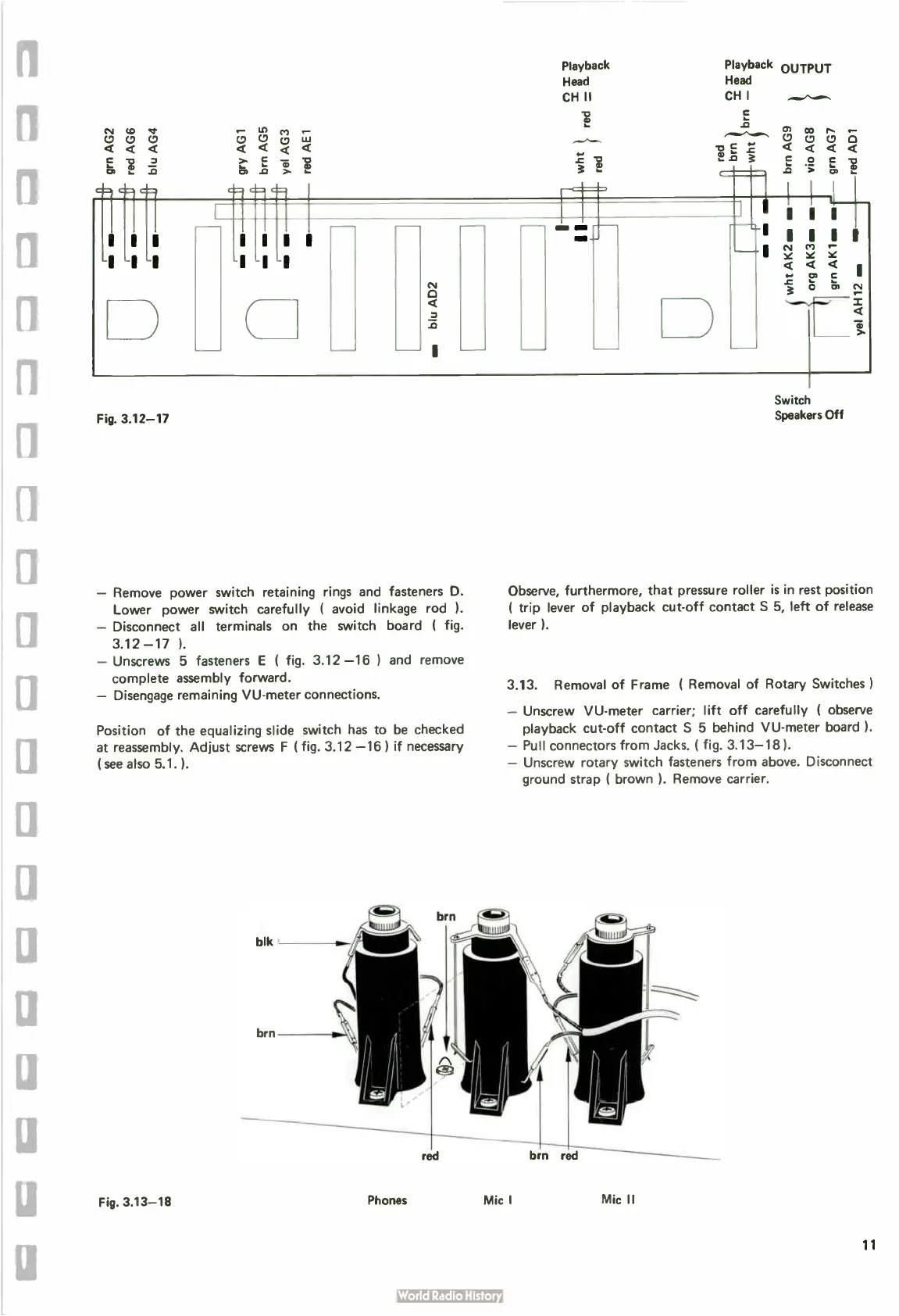

Fig. 3.12-17
— Remove power switch retaining rings and fasteners D.
Lower power switch carefully I avoid linkage rod 1.
— Disconnect all terminals on the switch board ( fig.
3.12 — 17 ).
— Unscrews 5 fasteners E ( fig. 3.12 — 16 ) and remove
complete assembly forward.
— Disengage remaining VU- meter connections.
Position of the equalizing slide switch has to be checked
at reassembly. Adjust screws F ( fig. 3.12 — 16 ) if necessary
( see also 5.1. ).
Fig. 3.13-18
blk
brn
Phones Mic I
Mic
Switch
Speakers Off
Observe, furthermore, that pressure roller is in rest position
( trip lever of playback cut-off contact S 5, left of release
lever ).
3.13. Removal of Frame I Removal of Rotary Switches 1
— Unscrew VU- meter carrier; lift off carefully I observe
playback cut-off contact S 5 behind VU- meter board 1.
— Pull connectors from Jacks. ( fig. 3.13-18 ).
— Unscrew rotary switch fasteners from above. Disconnect
ground strap ( brown ). Remove carrier.
11
