Revox A77 Service Manual

V ZIA «
A
08 09 10
Fig. 2.1-1
NO N 11110/1
M I Cue INPUT nic
WAN
14
Fig. 2.1-2
25
26
27 28
29 30
31
Fig. 2.1-3
15 16 17
18

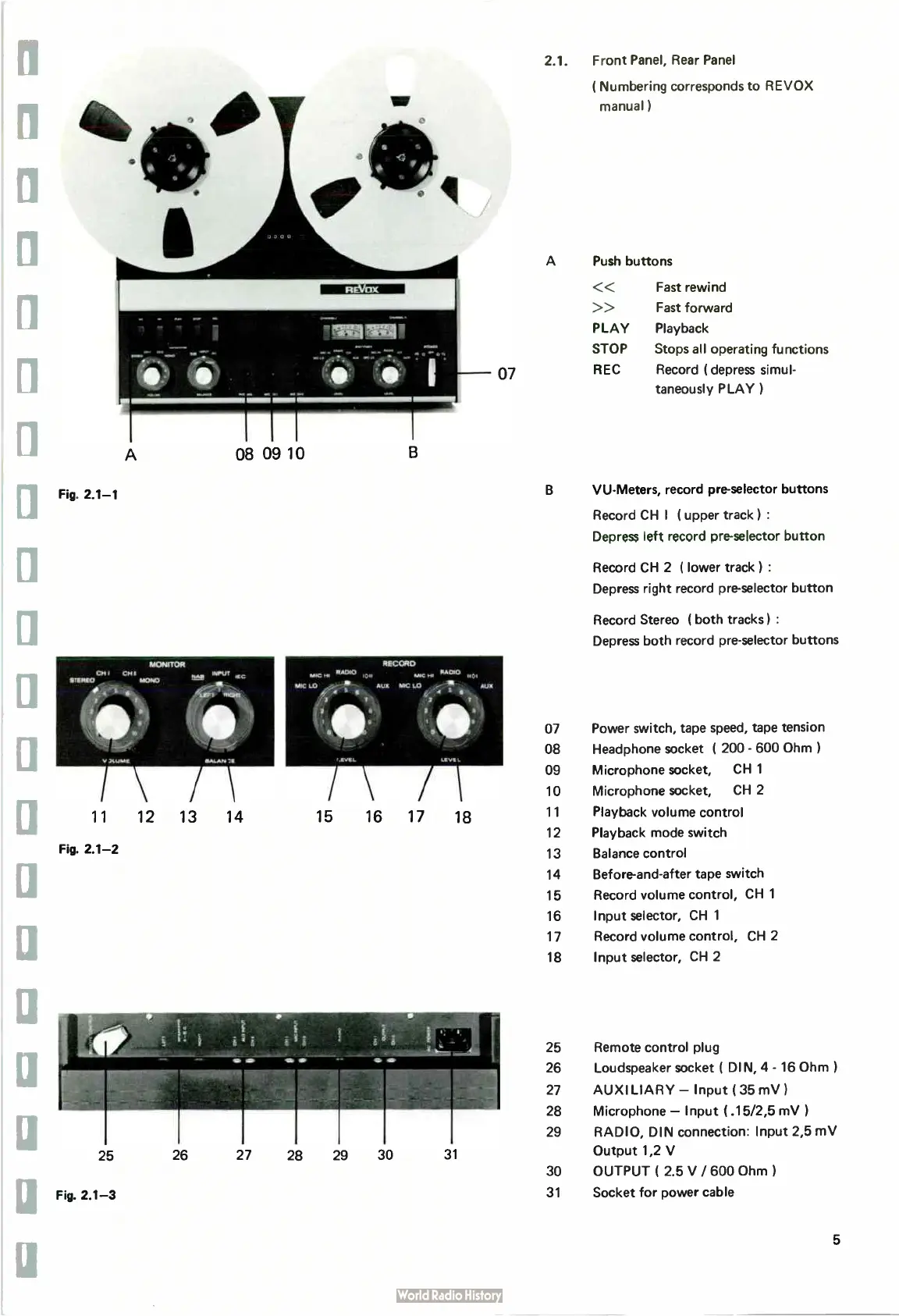

2.1. Front Panel, Rear Panel
( Numbering corresponds to REVOX
manual I
A Push buttons
Fast rewind
Fast forward
PLAY Playback
STOP Stops all operating functions
07 REC Record I depress simul-
taneously PLAY )
VU- Meters, record pre- selector buttons
Record CH I ( upper track ) :
Depress left record pre- selector button
Record CH 2 ( lower track ) :
Depress right record pre- selector button
Record Stereo ( both tracks ) :
Depress both record pre- selector buttons
07 Power switch, tape speed, tape tension
08 Headphone socket ( 200 - 600 Ohm )
09 Microphone socket, CH 1
10 Microphone socket, CH 2
11 Playback volume control
12 Playback mode switch
13 Balance control
14 Before- and- after tape switch
15 Record volume control, CH 1
16 Input selector, CH 1
17 Record volume control, CH 2
18 Input selector, CH 2
25 Remote control plug
26 Loudspeaker socket I DIN, 4 - 16 Ohm )
27 AUXILIARY — Input ( 35 mV )
28 Microphone — Input ( . 15/2,5 mV )
29 RADIO, DIN connection: Input 2,5 mV
Output 1,2 V
30 OUTPUT ( 2.5 V / 600 Ohm )
31 Socket for power cable
5
