Revox C221 User Manual

Service
Manual
C221 CD
Player
nd/ox
Flat
cable
connector
for toggle switch
Flat cable connector
for
power
inlet

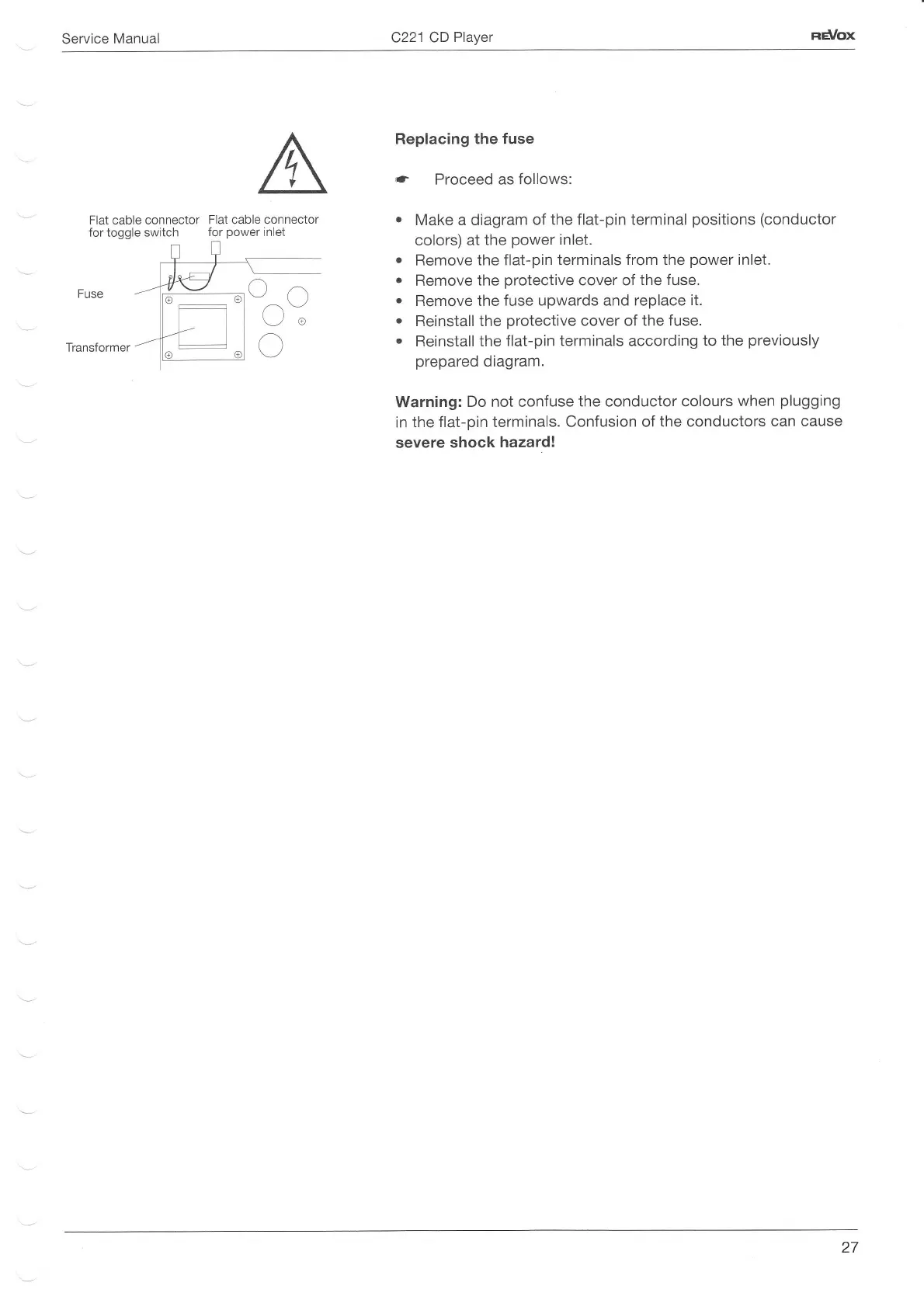

Replacing the fuse
a
a
a
a
a
Proceed as follows:
Make a diagram
of the flat-pin terminal
positions
(conductor
colors) at
the
power
inlet.
Remove
the flat-pin
terminals from the
power
inlet.
Remove
the
protective
cover of
the fuse.
Remove the fuse
upwards and replace
it.
Reinstall the
protective
cover of the fuse.
Reinstall the flat-pin
terminals according
to the
previously
prepared
diagram.
Warning:
Do not confuse
the conductor colours
when
plugging
in the
flat-pin terminals. Confusion
of the conductors
can cause
severe
shock
hazard!
27
