TEMPERATURE CONTROL – DELUXE
33
4. Set the bath fill water volume
 Press the BATH FILL VOLUME  (up button) or the
BATH FILL VOLUME  (down button).
The first press of either the BATH FILL VOLUME
 (up button) or the BATH FILL VOLUME
(down button) will display the last selected bath fill
water volume setting in the bath fill water volume
display panel and the bath fill indicator light will
glow.
While the bath fill water volume is displayed, each
subsequent press of the BATH FILL VOLUME
 (up button) or BATH FILL VOLUME
 (down button) will change the water volume
setting by 10 litres.
When the BATH FILL VOLUME  (up button) is
pressed and the water volume setting is increased,
the voice prompt will sound;
“caution, bath fill water volume has been increased, bath may overflow”
When the BATH FILL VOLUME  (down button) is pressed and the water volume setting is
decreased, the voice prompt will sound;
“bath fill water volume has been decreased”
Pressing the BATH FILL VOLUME  (up button) or BATH FILL VOLUME  (down button)
continuously will scroll the water volume setting.
A maximum volume of 990 litres and a minimum volume of 10 litres can be set. The maximum
volume of 990 litres is achieved in 10 litre increments up to 500 litres, then 990 litres is the next
setting.
The selected bath fill water volume will be displayed and the bath fill indicator light will glow on all
Deluxe controllers.
The bath fill water volume display panel will go blank
and the bath fill indicator light will go out 3 seconds
after the last press of either of the volume
adjustment buttons.
The set volume will be remembered when the
BATH FILL button is next pressed “on”.

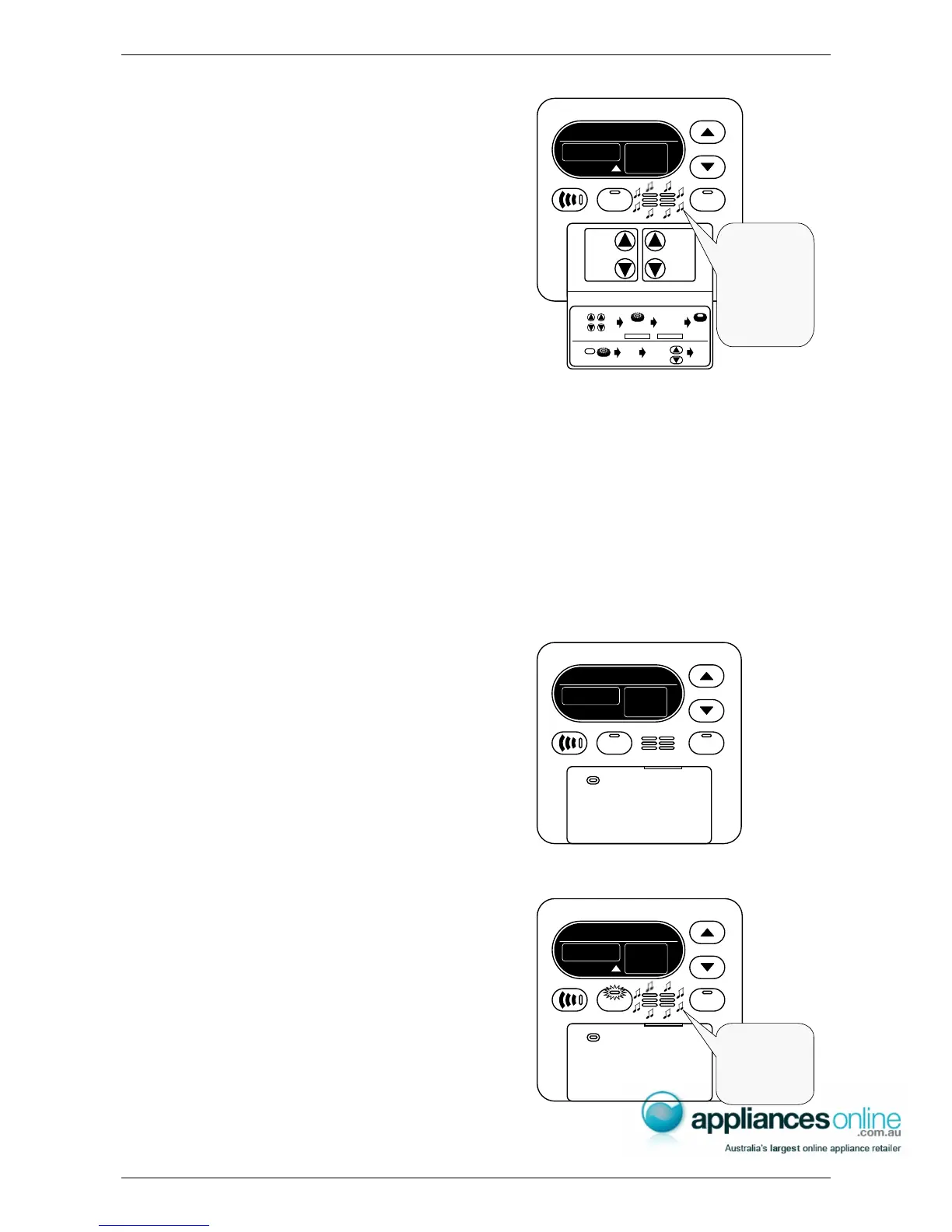

5. Close the front panel on the Deluxe controller.
6. Turn on the Bath Fill mode
 Press the BATH FILL button.
On all Deluxe controllers:
 The BATH FILL operating light will glow.
 The bath fill temperature setting will appear on
the temperature display panel.
 The bath fill water volume will appear on the
bath fill water volume display panel.
 The bath fill indicator light will glow.
 The voice prompt will sound;
“please set bath water volume and bath
temperature, then open the hot water tap”
Rheem
BATH (l)
40
°C
120
ACTIVE
ON/OFF
BATH FILL
B1
BATH FILL
VOLUME
BATH FILL
TEMPERATURE
ACTIVE
Light on
2.
Adjust
Temperature
3.
Open hot
tap
4.
Hot Water
Press
1.
ON/OFF
Bath
Water
Volume
Bath
Fill
Temp
Bath Fill
Set Bath Fill Water Volume
and Temperature
1.
2.
Bath Fill
completed
(automatic)
Bath Fill Button
(Red light flashes)
6. Close hot tap
5.
Press Bath
Fill Button
(Red light on)
3.
4. Open hot tap
BATH FILL
Press Bath
Fill Button
(Red light off)
7.
BATH FILL
“caution,
bath fill water
volume has been
increased,
bath may overflow”
or
“bath fill water
volume has been
decreased”
Rheem
BATH (l)
40
°C
120
ACTIVE
ON/OFF
BATH FILL
BATH FILL
BATH (l)
40
°C
120
ACTIVE
ON/OFF
Rheem
“please set
bath water volume
and
bath temperature,
then open the
hot water tap”
