UNIT SIZE
NOZZLE*
G.P.H./ANGLE/PATTERN
END
CONE
STATIC DISC RATING
21

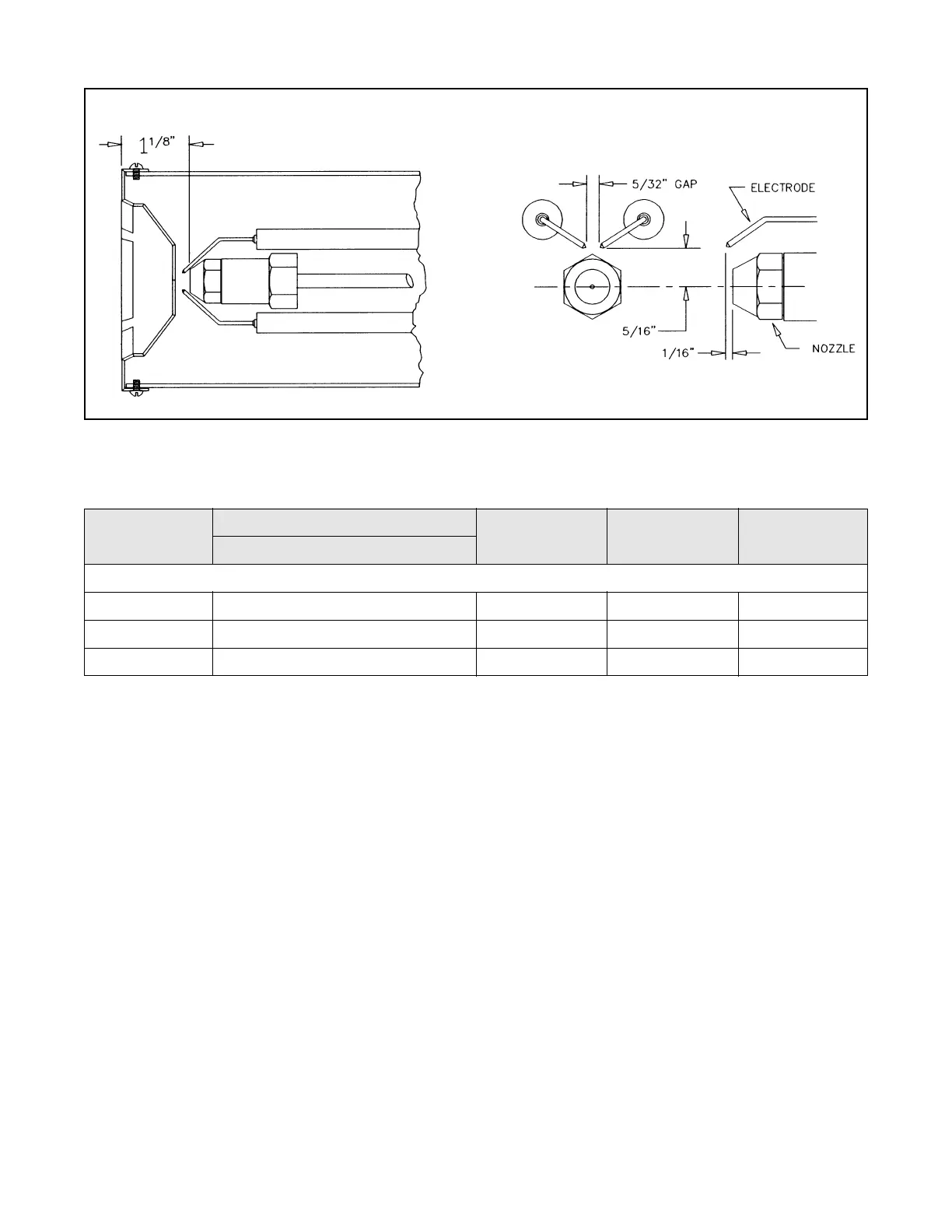

FIGURE 28. BECKETT MODEL “AFG” BURNER
OIL BURNER DATA
DRAWER ASSEMBLY DATA
056/067
084/095/112
130/150
*NOTE: This appliance should only be used with specified Delavan or Monarch nozzles. Use of other nozzles may result
in unsatisfactory performance.
DELAVAN (.50, .60)-70°B
DELAVAN (.75, .85, 1.0)-70°B
DELAVAN (1.2, 1.35)-70°B
F0
F3
F6
3-3/8( SOLID
3-3/8( SOLID
3-3/8( SOLID
AF**JY
AF**XN
AF**JZ
BECKETT MODEL “AFG” BURNER
