SVC 810 Tankless Troubleshooting Manual
66

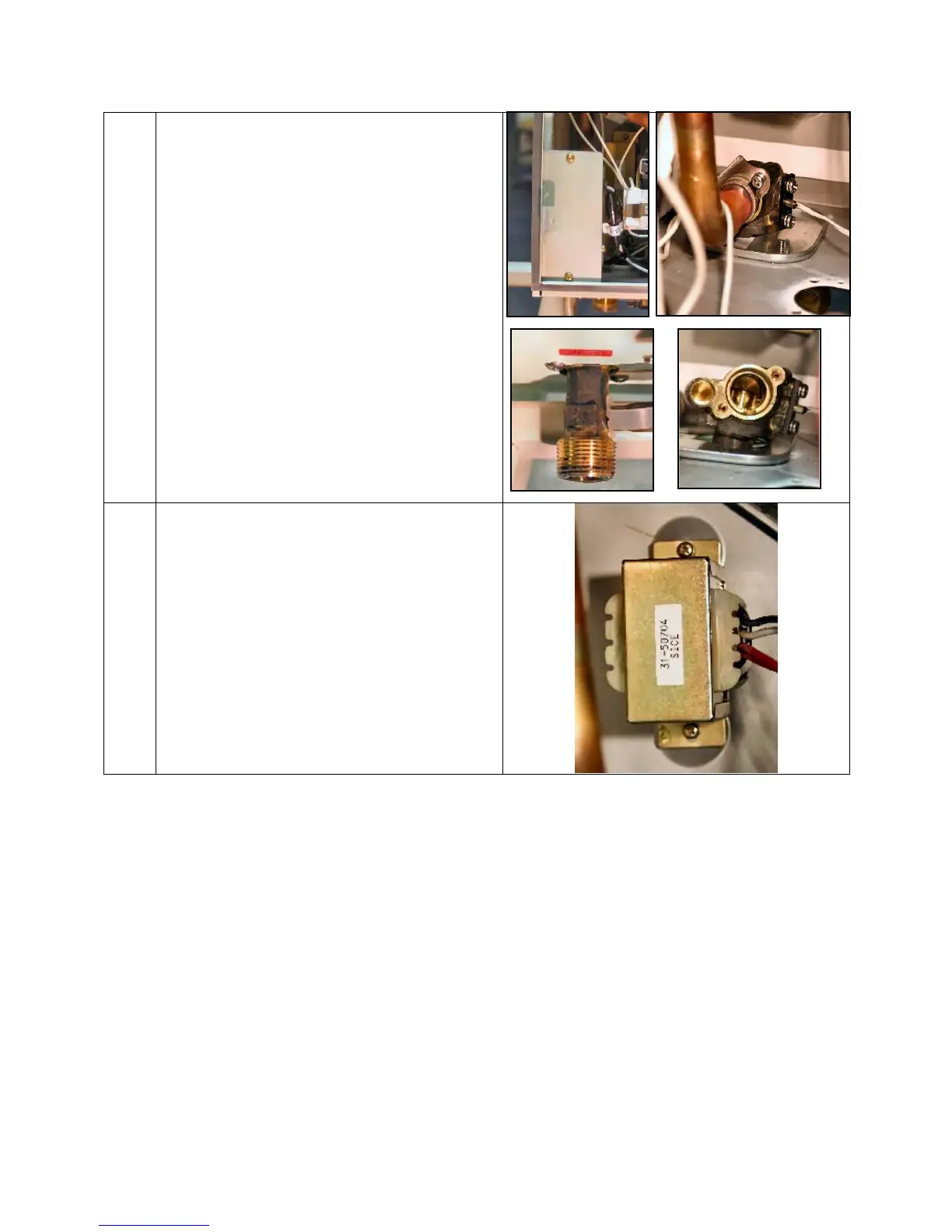

4.
Hot Water Outlet Connector and
Thermistor
a. Step 1 and 3 plus
b. Remove electrical connection box
(single screw on outside left).
c. Remove one ceramic heater plug.
d. Remove outlet pipe bracket and
ceramic heater plug.
e. Remove three screws on hot water
outlet connector (outside bottom of
unit).
f. Gently pull outlet pipe from
connector and move to one side.
g. Unscrew and remove drain valve.
h. Rotate and remove hot water outlet
thermistor from the unit.
i. Remove outlet connector and
retaining plate.
5
Transformer
a. Step 1, 3, 4 and
b. Remove the two screws holding the
transformer to the back wall of the
unit.
c. Disconnect power lead Molex on
transformer.
d. Disconnect red power leads on
Printed Circuit Board.
