SVC 810 Tankless Troubleshooting Manual
69
7.

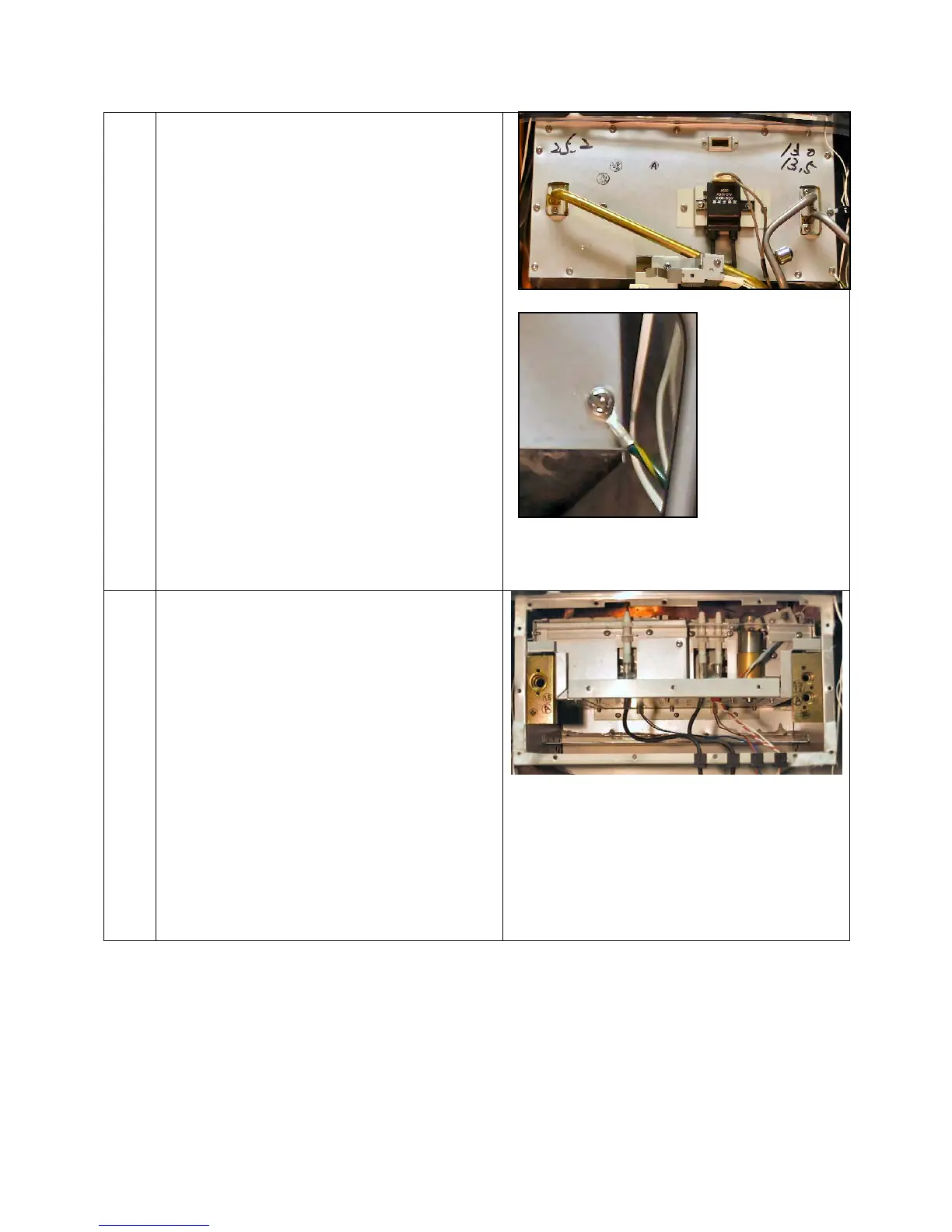

Burner Plate Cover
a. On the burner plate cover, remove
the two retaining clips and crews
from the manifold supply tubes.
b. At the gas valve, remove the three
retains clips and screws from each
of the gas manifold tubes. Note the
brass colored tube has a special clip;
the silver colored tubes have a
different clip.
c. Note that each manifold tube has a
rubber o-ring on each end to seal the
tube.
d. Remove the two screws that hold
the igniter mounting plate.
e. Remove the remaining 16 screws on
the perimeter of the burner cover
plate.
f. Remember to re-connect the green
and yellow striped ground wire
when reassembling cover plate.
8.
Burner Assembly
a. Step 7 and
b. Remove the three screws on the
bottom back wall of the burner
assembly.
c. Firmly pull on both sides of the
burner assembly to slide it out of the
chassis.
d. Disconnect all igniter wires and
flame probe wires.
e. Note positioning of the four black
plugs. They are used to prevent the
wires from being damaged by the
sharp edges.
f. Disconnect ODS Molex on PCB.
To Next Page
