User’s Guide for DS1000B Series
1-3
Panels and User Interface
Being familiar with the operation panels is the first priority when you get a new
DS1000B series digital oscilloscope. This chapter will bring you a brief introduction
and description of the panels and functions of oscilloscope, which can help users to
know well about the instrument in a short time.
Front Panel
Figure 1-1, the front Panel; the knobs are used most often and are similar to the
knobs on other oscilloscopes. There are five grey buttons defined as No.1 to No.5
from up to bottom on the right side of the display which are menu operating buttons.
The buttons not only allow you to use some of the functions directly but also bring up
soft button menus on the screen, which enable the access to many measurement
features associated with the advanced functions, mathematics, and reference or to
run control features.

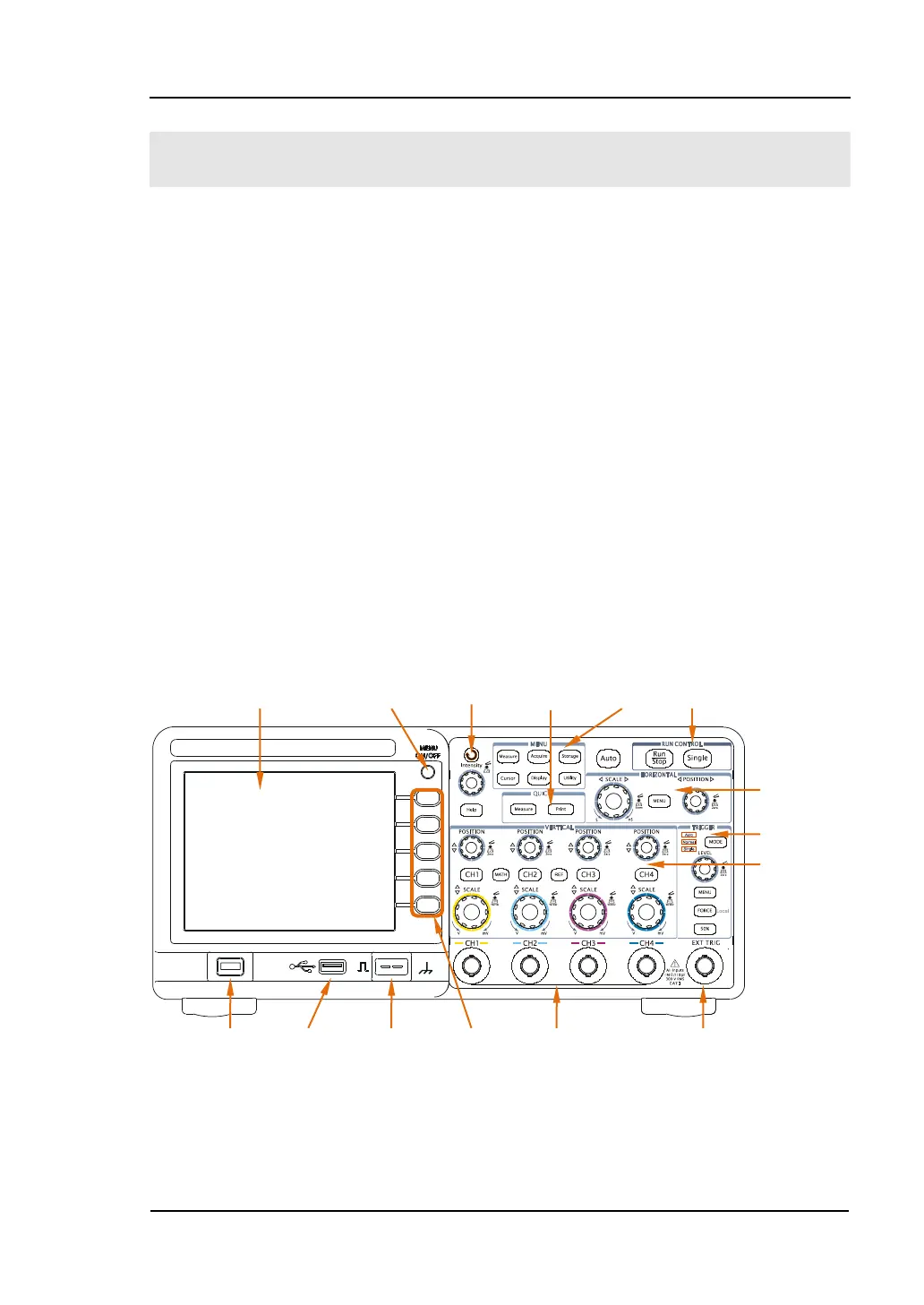

Figure 1-1 Front Panel Overview
Turn On/ Multi-Function Quick Function Run
LCD Off Menu Knob Button Menu Control
Power USB Probe Menu Analog Signal EXT TRIG
Switch Host Compensator Buttons Channels Channel
Horizontal
Trigger
Vertical
