RIGOL
User’s Guide for DS1000B series
2-54

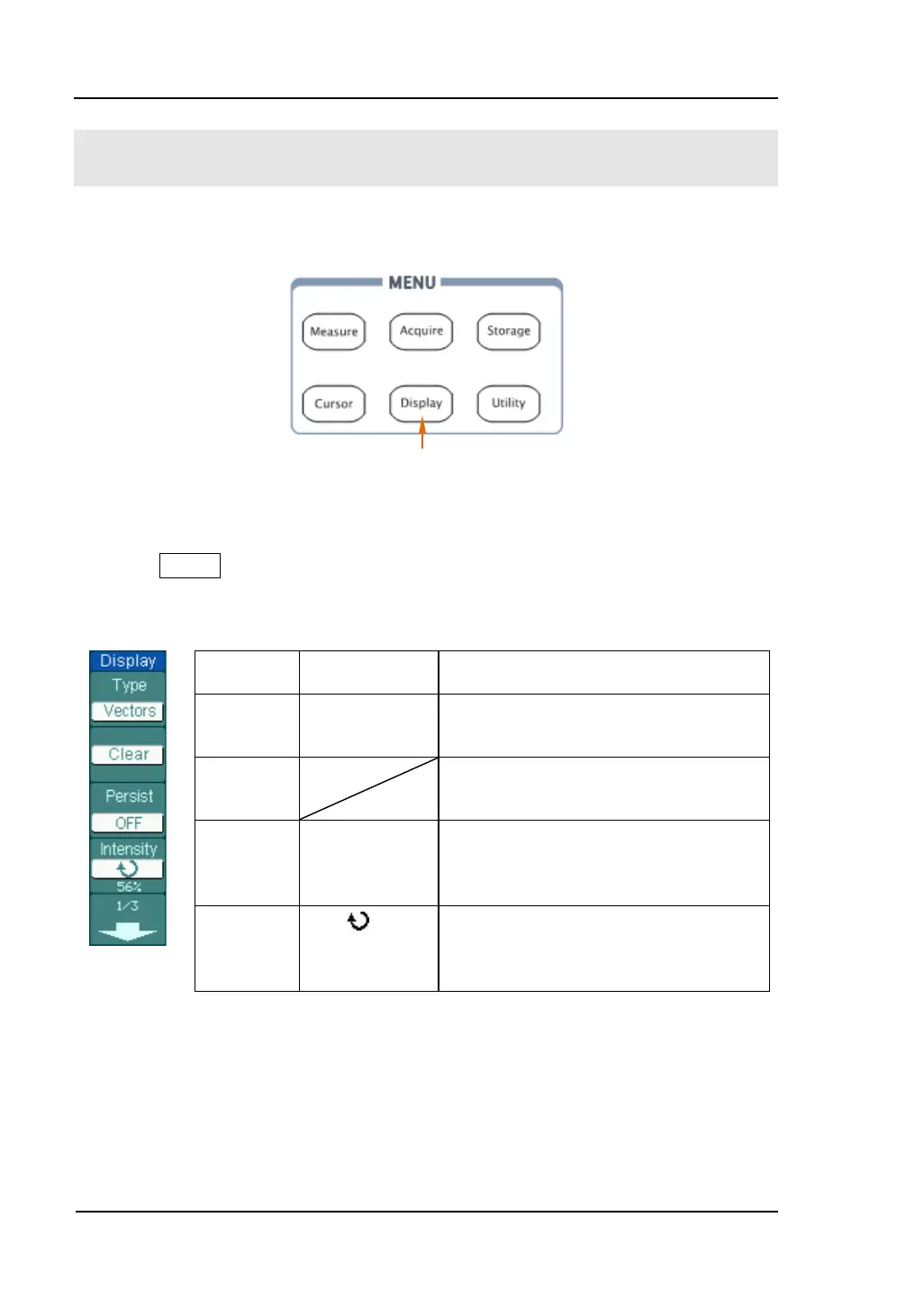

To Set up the Display System
The menu button for the display system on the front panel is shown in the following
figure.
Figure 2-65 The display setup button
Press the Display button, the interface menu for settings shows as follows.
Figure 2-66 Table 2-38 The Display menu (Page 1/3)
Menu Setting Comments
Type
Vectors
Dots
Display waveforms as vectors.
Display waveforms as dots.
Clear
Clear all existing waveforms from
screen.
Persist
Infinite
OFF
The sample points remain displayed
until turn the persistence “OFF”.
Turn off the persistence function.
Intensity
<
waveform
intensity
>
Set up waveform intensity
(0% to
100%).
Display Setup Button
